Compact temperature measurement is easier to integrate when the probe, sensor element and connection style match the installation. TP35N1 uses a stainless steel probe body with Ø 5 x 40 mm dimensions, making it suitable for measurement points where a slim, robust sensing tip is required.
The integrated NTC 10KΩ @ 25 °C sensor covers an operating temperature range from -40...+105 °C. For connection flexibility, the cable can end either with open wires or with a female 4-pole M12 connector, allowing the same probe family to support different wiring approaches in compatible monitoring and measurement systems.
Uses a stainless steel body for temperature measurement
Includes an NTC 10KΩ @ 25 °C temperature sensor

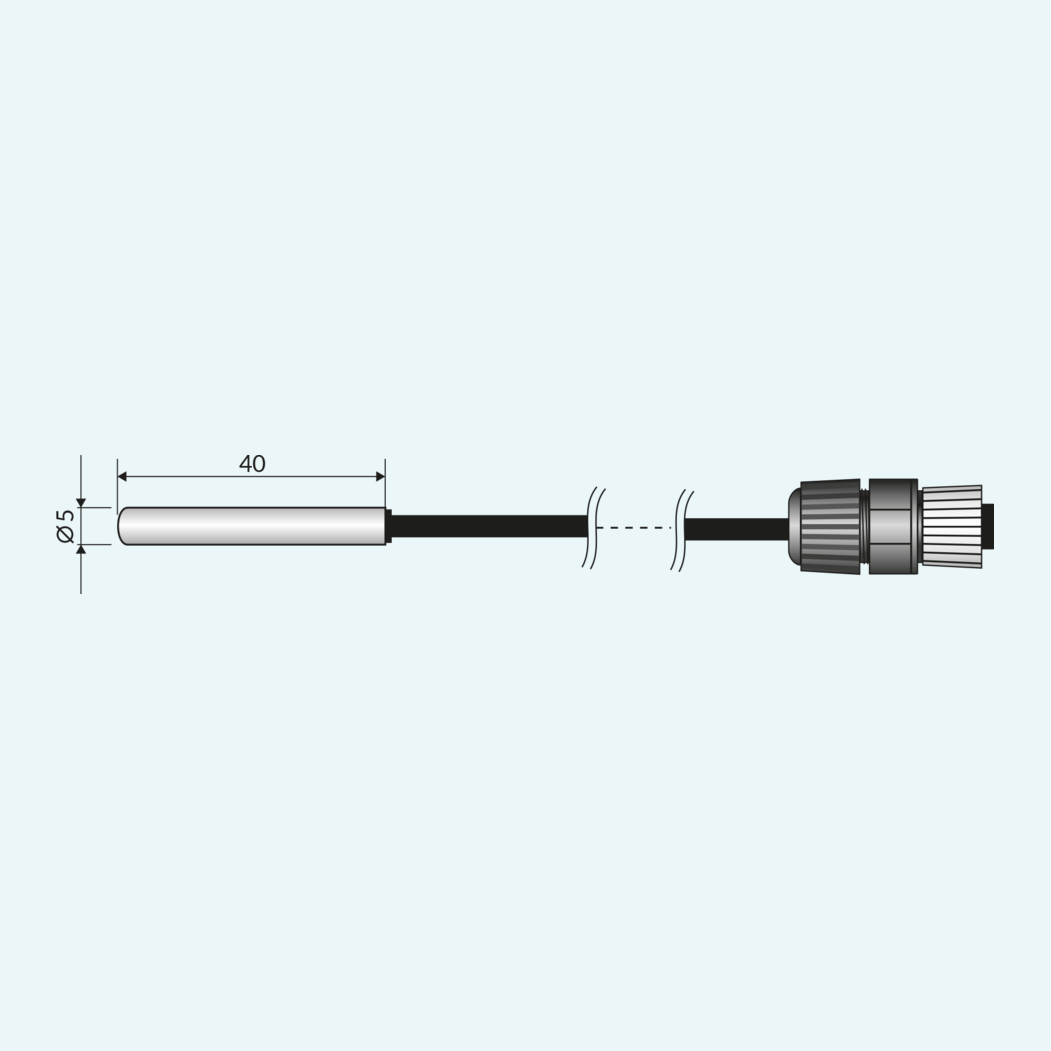

Sensor body dimensions are Ø 5 x 40 mm
Cable ending is available either with open wires or a female 4-pole M12 connector
Code: TP35N1. [1] [2]
Example: TP35N1.10/C
[1] Cable length
3 = 3 m
5 = 5 m
10 = 10 m
[2] Cable ending
Blank = free wires
/C = female 4-pole M12 connector
