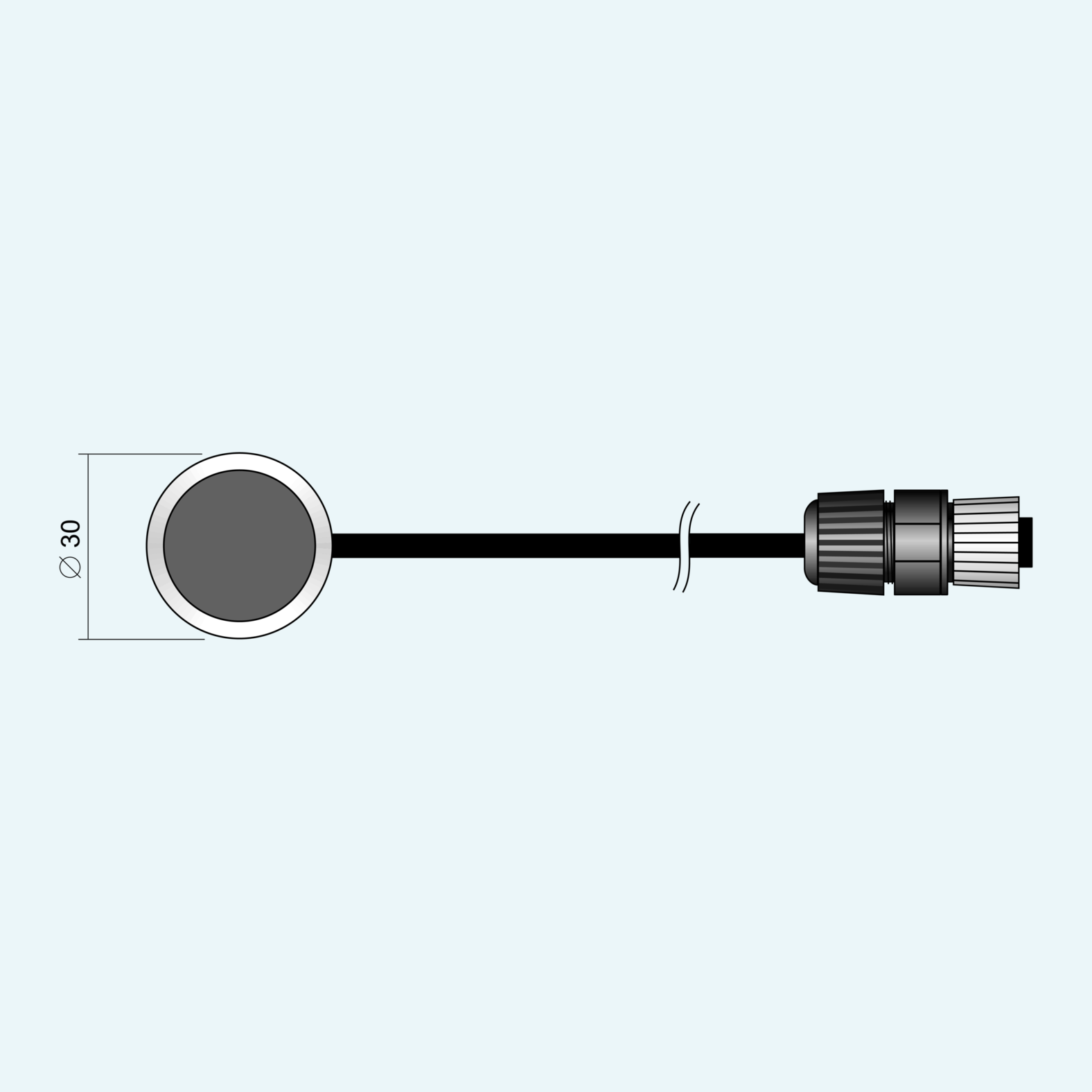

Getting a representative module temperature is key when you want to evaluate PV performance or document operating conditions. The TP35878ISS contact temperature probe is designed for solar panels and provides a practical way to capture surface temperature directly at the module.
The probe uses a 1/3 DIN Pt100 sensing element and connects via a female 4-pole M12 connector for straightforward wiring in measurement setups. It supports an operating temperature range of -40...+85 °C, covering typical outdoor PV monitoring conditions from cold starts through peak daytime heating.
Designed for contact temperature measurement on solar panels
Uses a Pt100 sensor with 1/3 DIN specification
Cable ending with female 4-pole M12 connector
Operates from -40...+85 °C
Code: TP35878ISS. [1]
Example: TP35878ISS.10
[1] Cable length
5 = 5 m
10 = 10 m
