Built for dependable temperature measurement where a compact probe tip and a robust cable matter, this thermoplastic rubber temperature probe supports straightforward integration into your measurement setup.
Inside is a 3-wire 1/3 DIN Pt1000 sensor, suited for accurate resistance temperature measurement with reduced lead-wire influence compared to 2-wire wiring. The probe dimensions are Ø 5 x 20 mm, making it easy to position in tight spaces or on surfaces, depending on your application.
Choose the connection style that best fits your installation: cable ending with open wire ends for direct wiring, or a female 4-pole M12 connector for quick, repeatable connection in the field. The operating temperature range is -40 to +105 °C.
Integrated 3-wire 1/3 DIN Pt1000 sensing element for resistance temperature measurement
Thermoplastic rubber temperature probe construction with compact sensing tip geometry
Available with open wire ends or with female 4-pole M12 connector for connection to instruments

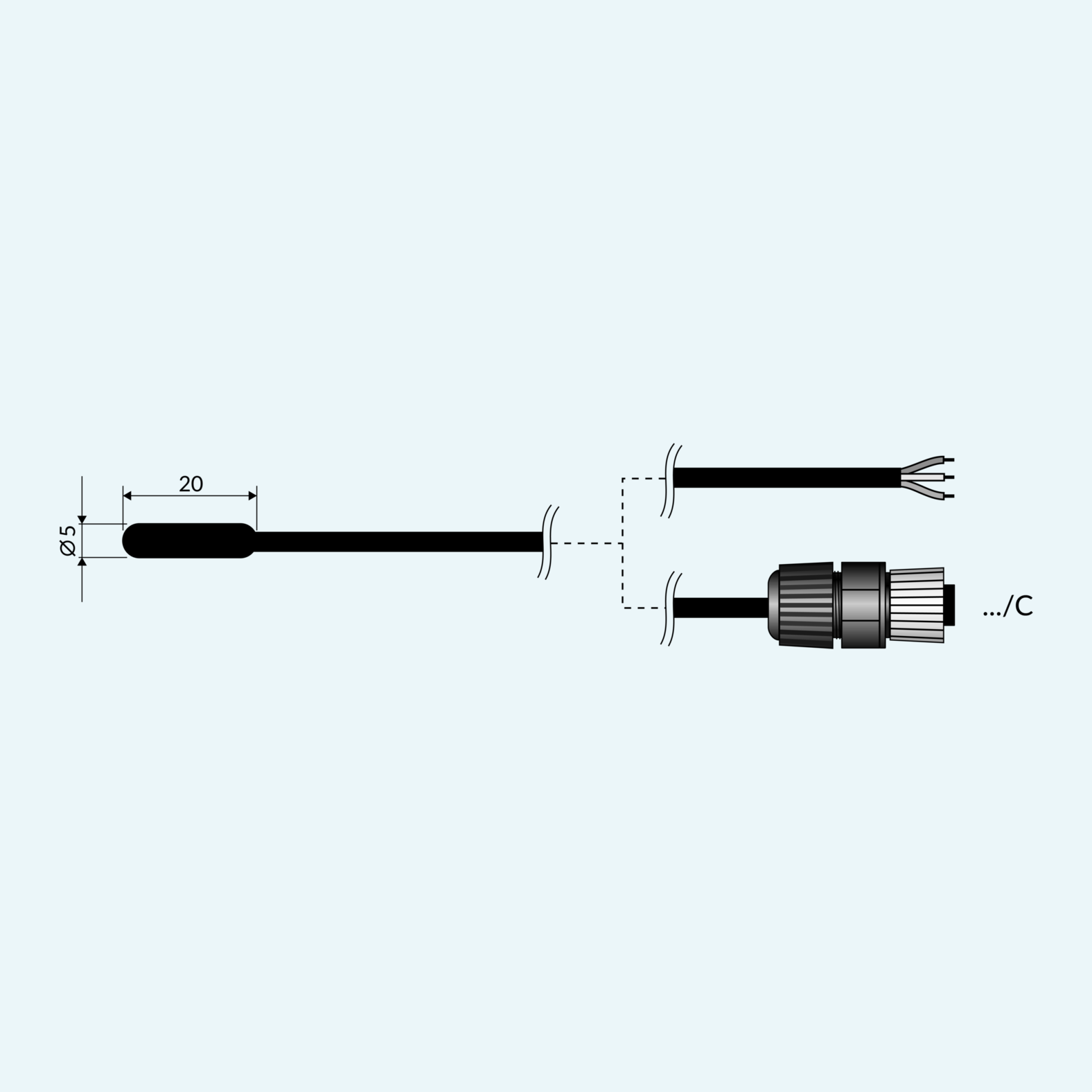

Probe tip dimensions Ø 5 x 20 mm for compact mounting and positioning
Rated operating temperature range from -40 to +105 °C
Code: TP35.2. [1] [2]
Example: TP35.2.5/C
[1] Cable length
3 = 3 m
5 = 5 m
[2] Cable ending
Blank = free wires
/C = female 4-pole M12 connector
