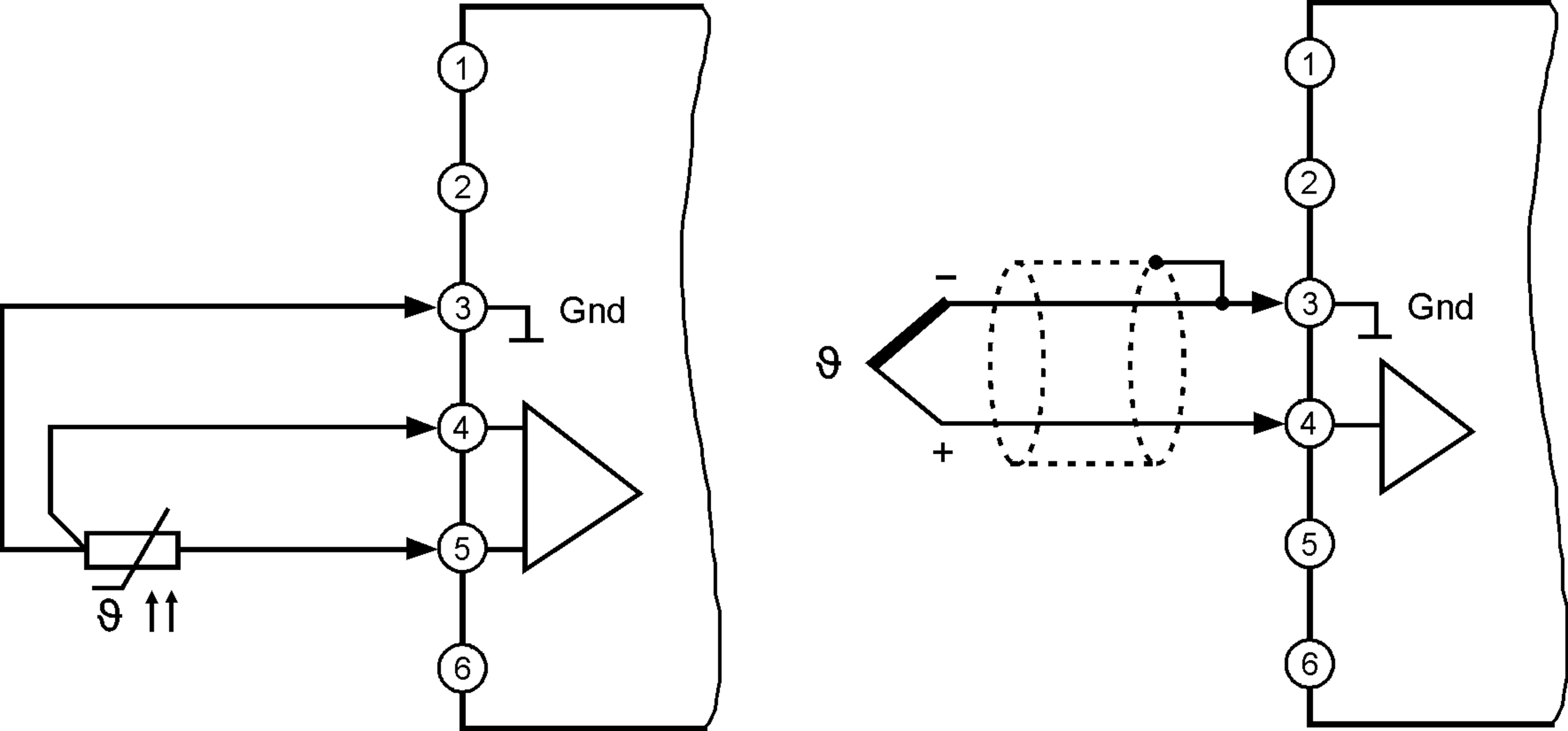

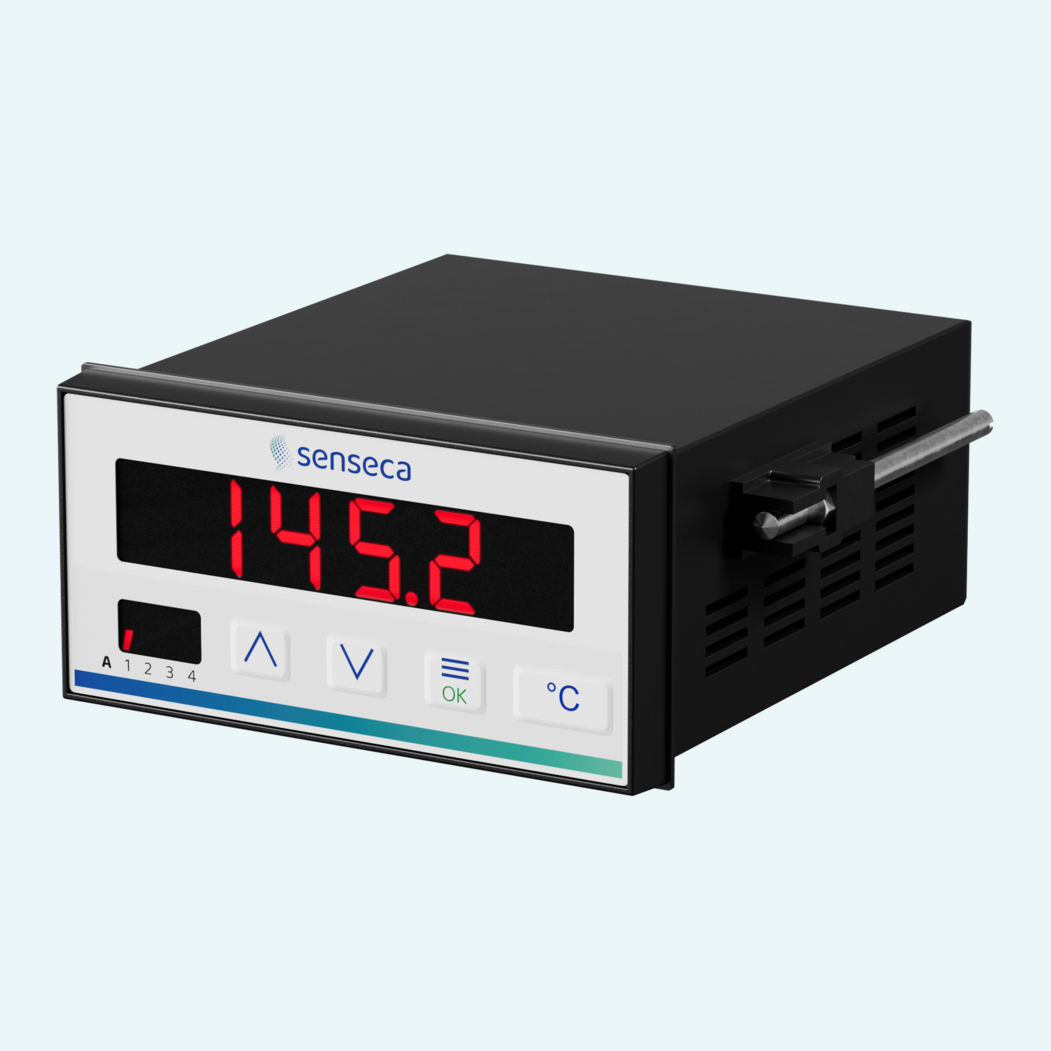

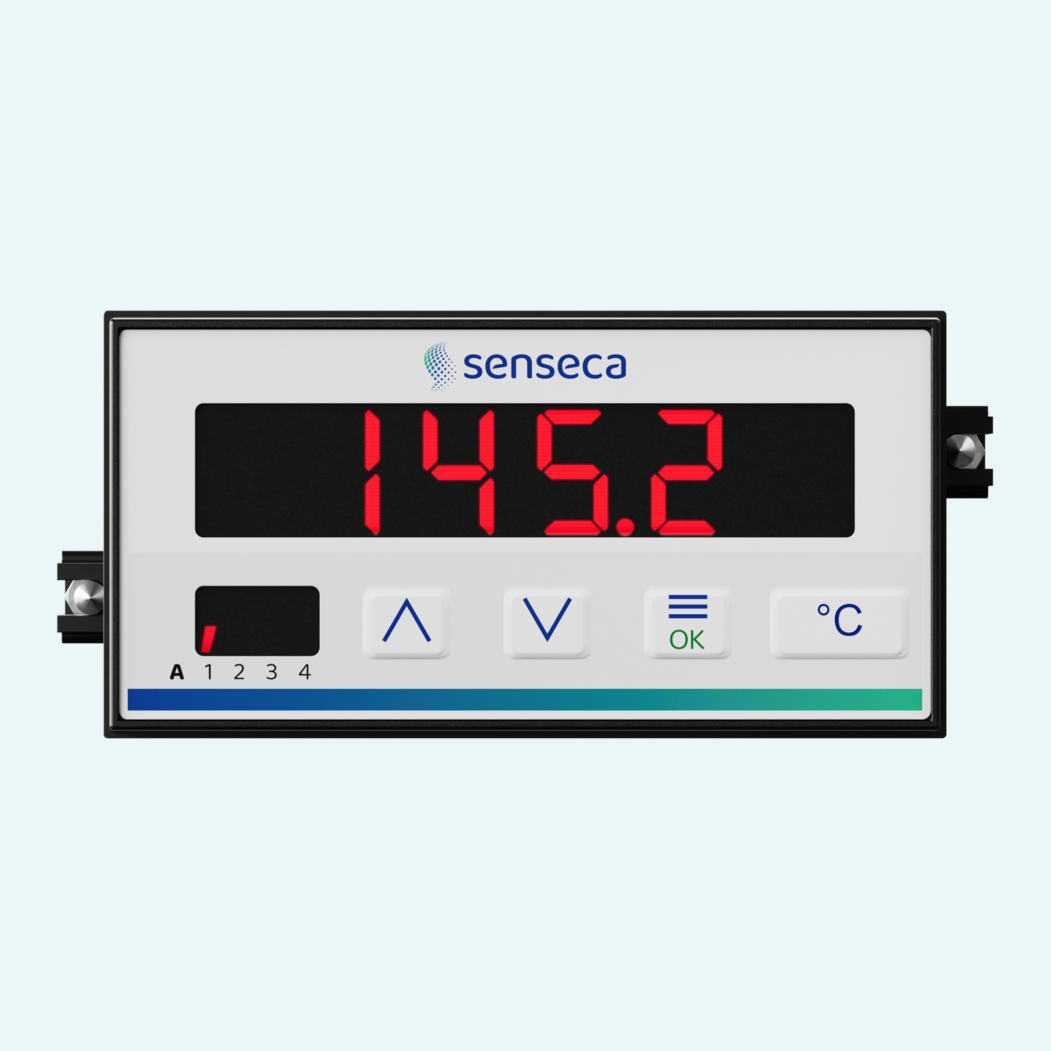

Temperature values are easier to manage when operators can see them directly at the control panel and use the same device for signaling or analog transmission. This panelmeter measures Pt100, Pt1000 and thermocouple inputs, then displays the process value on a red 14.2 mm LED.
The configurable measuring range lets you focus the display and analog output on the relevant temperature span. It supports Pt100 from -100...600 °C, Pt1000 from -50...200 °C, Fe-CuNi (J) from 0...800 °C, NiCr-Ni (K) from 0...1200 °C and Pt10Rh-Pt (S) from 0...1600 °C. A digital filter can average the last 16 measured values for steadier display behavior.

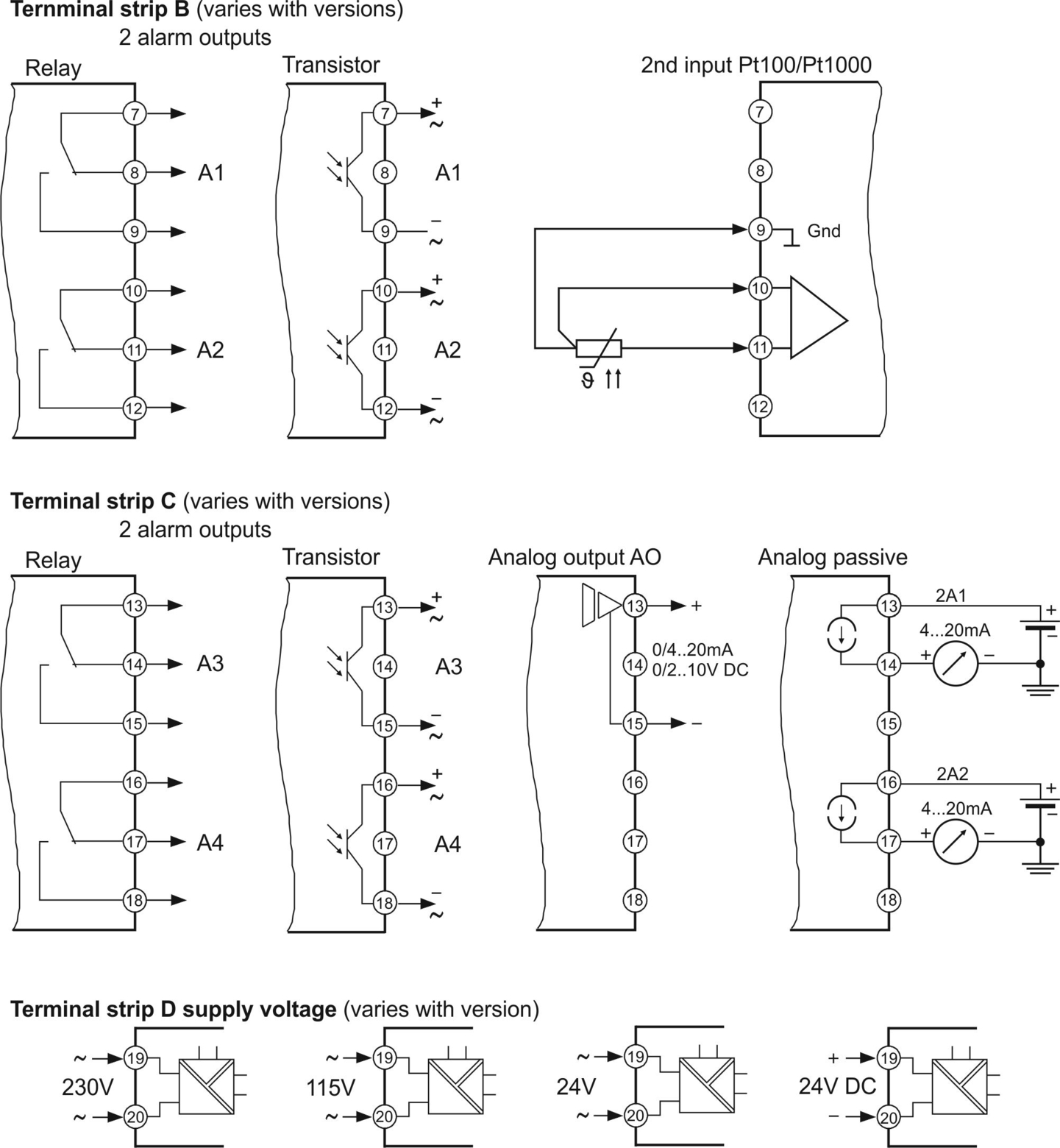

The panelmeter can be configured with up to 4 alarm outputs using SPDT relays or transistors. An isolated analog output is also available, with automatic changeover between 0/4...20 mA and 0/2...10 V depending on burden. Front ingress protection IP65 supports installation in industrial panels.
Parameters are set using the front-side membrane keypad, with working and configuration levels.
Start and end values define the indicating range and the range used by the analog output.
When activated, the digital filter continuously averages the last 16 measured values.
Switching function, setpoint, hysteresis, switch-on delay and switch-off delay can be configured for alarm outputs.
Versions with a second Pt100 or Pt1000 input can display difference, average, larger or smaller value.
The optional min/max value hold function stores peak readings for display in the working level.
| Temperature range |
-50...+200 °C
|
|---|---|
| Temperature range Pt100 |
-100...+600 °C
|
| Temperature range TC K |
0...1200 °C
|
| Accuracy temperature |
±0.1 %
|
| Temperature range TC J |
0...800 °C
|
| Temperature range TC S |
0...1600 °C
|
| Operating temperature |
-10...+55 °C
|
|---|---|
| Degree of protection terminals |
IP20
|
| Degree of protection front |
IP65
|
| Type of analog output |
4…20 mA, 0…20 mA,0…10 V, 2…10V
|
|---|---|
| Burden (current output) |
< 500 Ω
|
| Load (voltage output) |
> 500 Ω
|
| Accuracy |
±0.1 %
|
| Temperature coefficient |
0.01 %/K
|
| Materials |
PA6-GF, UL94V-0
|
|---|---|

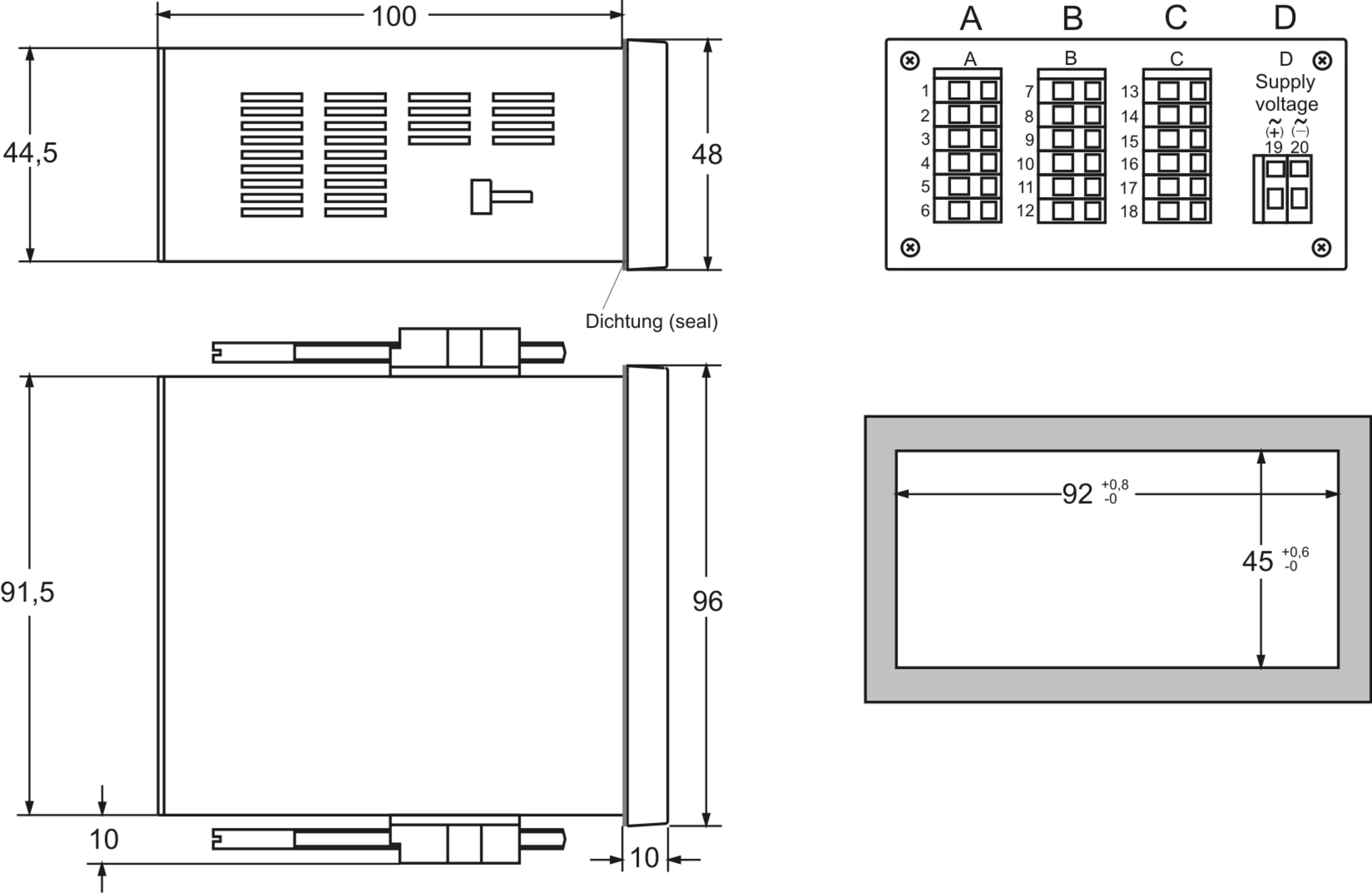

| Dimensions |
96 mm x 48 mm x 100 mm
|
| Mounting |
96x48 mm
|
| CE Conformity |
Yes
|
|---|
| Electrical connection description |
Clamp terminals, 1.5 mm² flexible wire, AWG14
|
|---|
| Auxiliary voltage |
24 V AC, 115 V AC, 230 V AC, 24 V DC
For 230 V AC ±10 % 50 ... 60 Hz: 230 V AC For 24 V DC ±15 %: 24 V DC |
|---|---|
| Auxiliary voltage tolerance |
For 230 V AC ±10 % 50 ... 60 Hz: ± 10 %
For 24 V DC ±15 %: ± 15% |
| Contact rating relay AC |
< 2 A < 250 VA < 250 V
|
|---|---|
| Contact rating relay DC |
< 2 A < 50 W < 300 V
|
| Output rating transistor |
100 mA,35 V
|
| Short circuit proof |
Yes
|
| Display type |
LED
|
|---|---|
| Accuracy indication |
±2 Digit
|
| Display range |
±9999(0) Digit
|
| Probe length |
For 100 mm: 100 mm
|
|---|
