Pure water applications need sensitivity at low conductivity values. This combined probe measures conductivity from 0.1 µS/cm ... 500 µS/cm and temperature from 0...80 °C, giving users a compact measuring point for two parameters in water-related measurement tasks.
The glass body and 2 platinum wire electrodes support a defined measuring setup for low-conductivity media. With cell constant K=0.1 and a maximum pressure of 5 bar, the probe is suited to pure water checks where a clear technical range and stable construction matter.
The probe measures conductivity and temperature at the same measuring point for applications requiring both values.
The measuring cell uses 2 platinum wire electrodes and a cell constant of K=0.1.
The probe body is made of glass and is specified for pure water.
The probe is designed for conductivity from 0.1 µS/cm ... 500 µS/cm and temperature from 0...80 °C.
L=1.5m cable connection for integration with the measuring setup.
| Pressure rating |
5 bar max.
|
|---|
| Temperature range |
0...80 °C
|
|---|---|
| Cell constant |
0.1
|
| Conductivity range |
0.1...500 µS/cm
|
| Materials |
Glass/Platinum
|
|---|
| Cable |
1.5 m
|
|---|---|

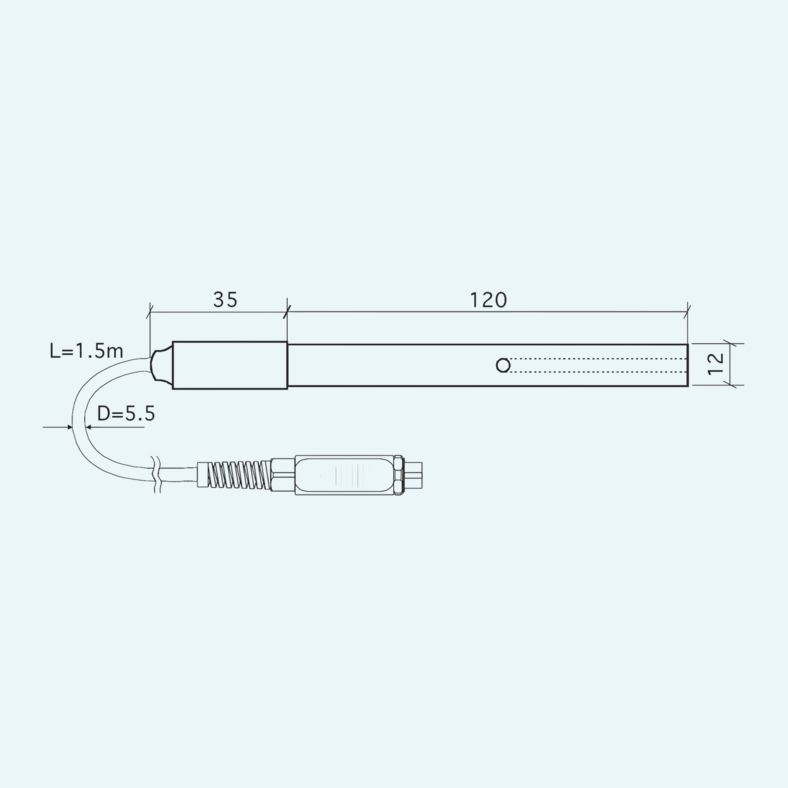

| Probe length |
120 mm
|
| Probe Diameter |
12 mm
|
