Non-contact level measurement keeps the sensor away from the medium while still giving operators continuous level data. Sonicont® USP4S measures, monitors and controls levels in liquids, pastes and coarse bulk solids, and also supports volume measurement plus flow measurement at open channels and weirs.
The transmitter covers measuring ranges of 0…≤ 2 m, 0…≤5 m and 0…≤ 8 m, with accuracy of ≤± 2 mm or ± 0.2% FSO. Bluetooth® 5.0 LE enables digital adjustment and access to the envelope curve, while temperature compensation and false echo suppression help adapt the device to different applications.
A slim, robust design supports installation in water and wastewater, environmental technology, process industry, storage tanks, bunkers and silos. The 4…20 mA 2-wire electronics, M12 plug or cable versions, integrated overvoltage protection and ingress protection up to (IP68) give the device a practical basis for general industrial level measurement.
The transmitter measures level continuously using ultrasonic technology for non-contact measurement in general applications.
Available ranges are 0…≤ 2 m, 0…≤ 5 m and 0…≤ 8 m, with working frequencies of 125 kHz, 75 kHz and 50 kHz.
The electronics provide a 4…20 mA 2-wire output with Bluetooth® 5.0 LE interface.
he device includes temperature compensation and false echo suppression for application adjustment.

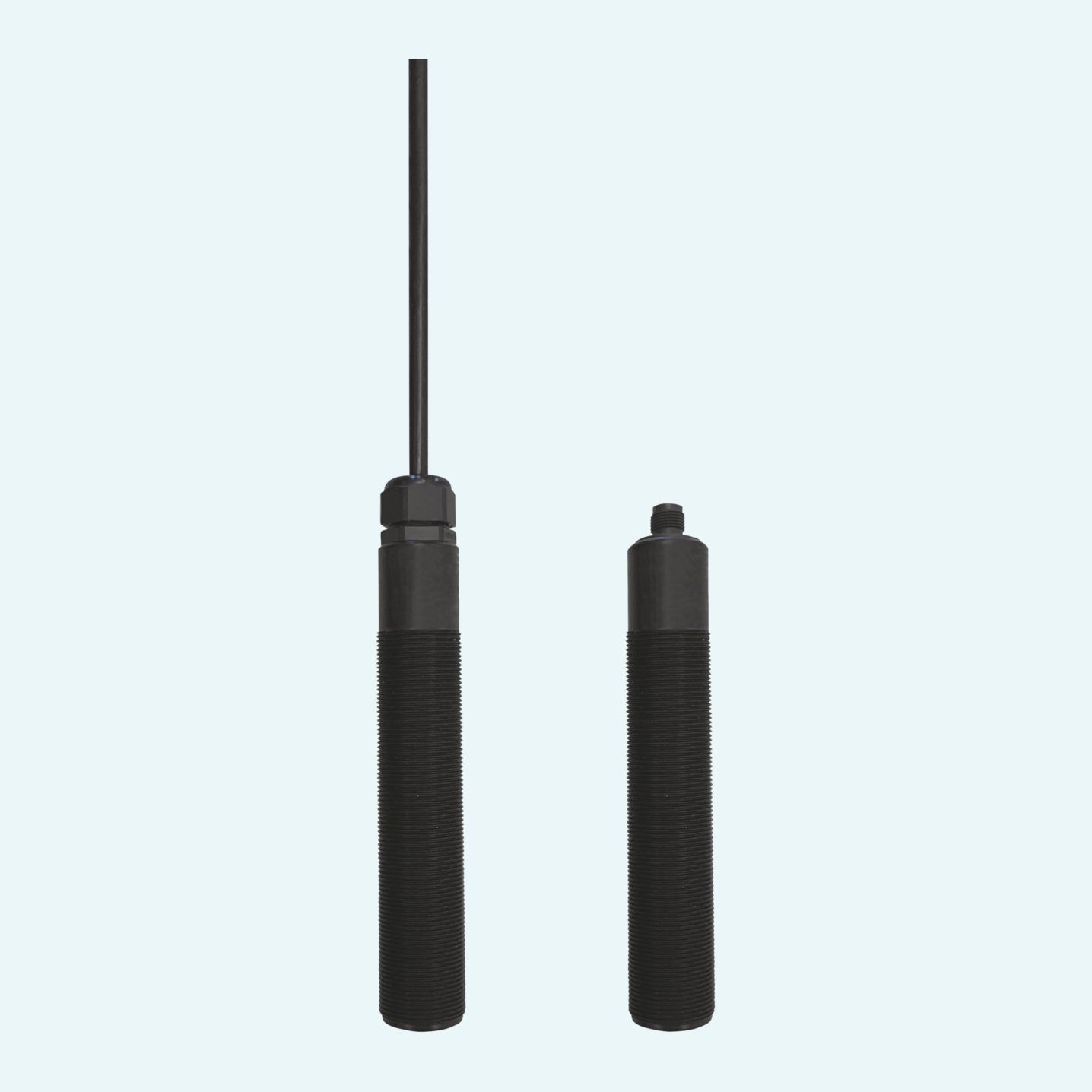

Versions are available with M12 plug or cable connection, including prepared cable configurations and carrier cable options.
Process-wetted materials include PVDF, POM, PA, NBR, FPM, PE and PUR, depending on configuration.
Options include LABS-free and silicone-free version, TAG laser marking, customer label, neutral type plate and configuration or presetting.
