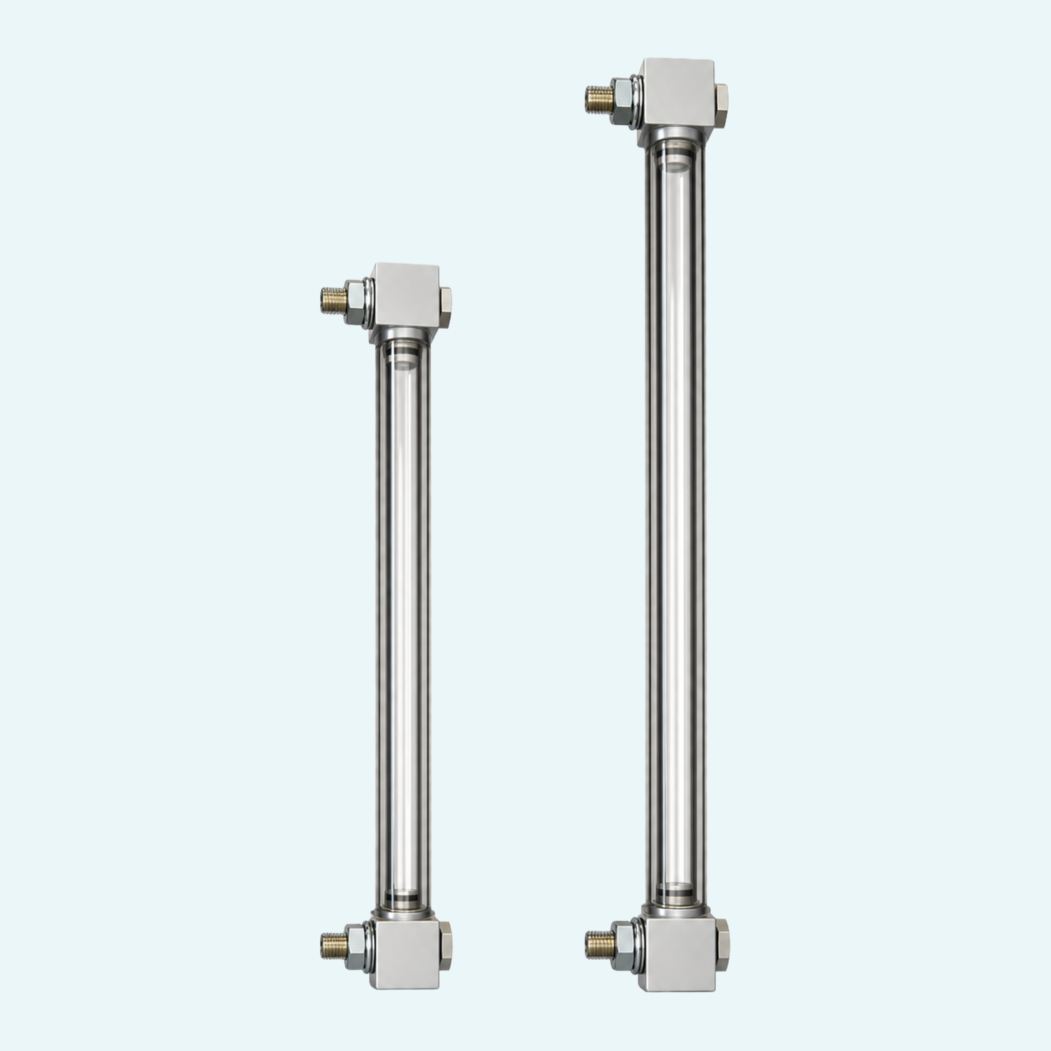

Tank level checks are faster when the liquid status is visible at the vessel itself. Mounted outside the tank with threaded connections, this visual level indicator gives operators a 360° view of the level inside the tank through its double vision pipe design.
The series is suited to standard liquid applications including H2O, glycol, gasoline, hydrocarbons, mineral oils, vegetable oils, diesel fuel and ethanol 20%. Length and mounting distance options run from 127 to 1000 mm, with other lengths available on request, giving installers practical flexibility across different tank sizes.
Rugged double-pipe construction supports dependable use in daily operation. The assembly uses anodized aluminium connections, methacrylate vision and protection pipes, nickel plated brass fittings and NBR sealing OR. Mobile terminals help recover mounting hole distance errors up to 4 mm, making installation easier on site.
The indicator is mounted outside the tank by means of threaded connections and is designed for visual liquid level monitoring.
The construction uses a vision pipe and a protection pipe, both specified as methacrylate in the material data.
The assembly includes anodized aluminium connections, nickel plated brass fittings and NBR sealing OR.
The series is available in defined mounting distances from 127 to 1000 mm. Other lengths are available on request.
The indicator includes mobile terminals that recover distance errors in the mounting holes during installation.
The source lists standard use with H2O, glycol, gasoline, hydrocarbons, mineral oils, vegetable oils, diesel fuel and ethanol 20%.
