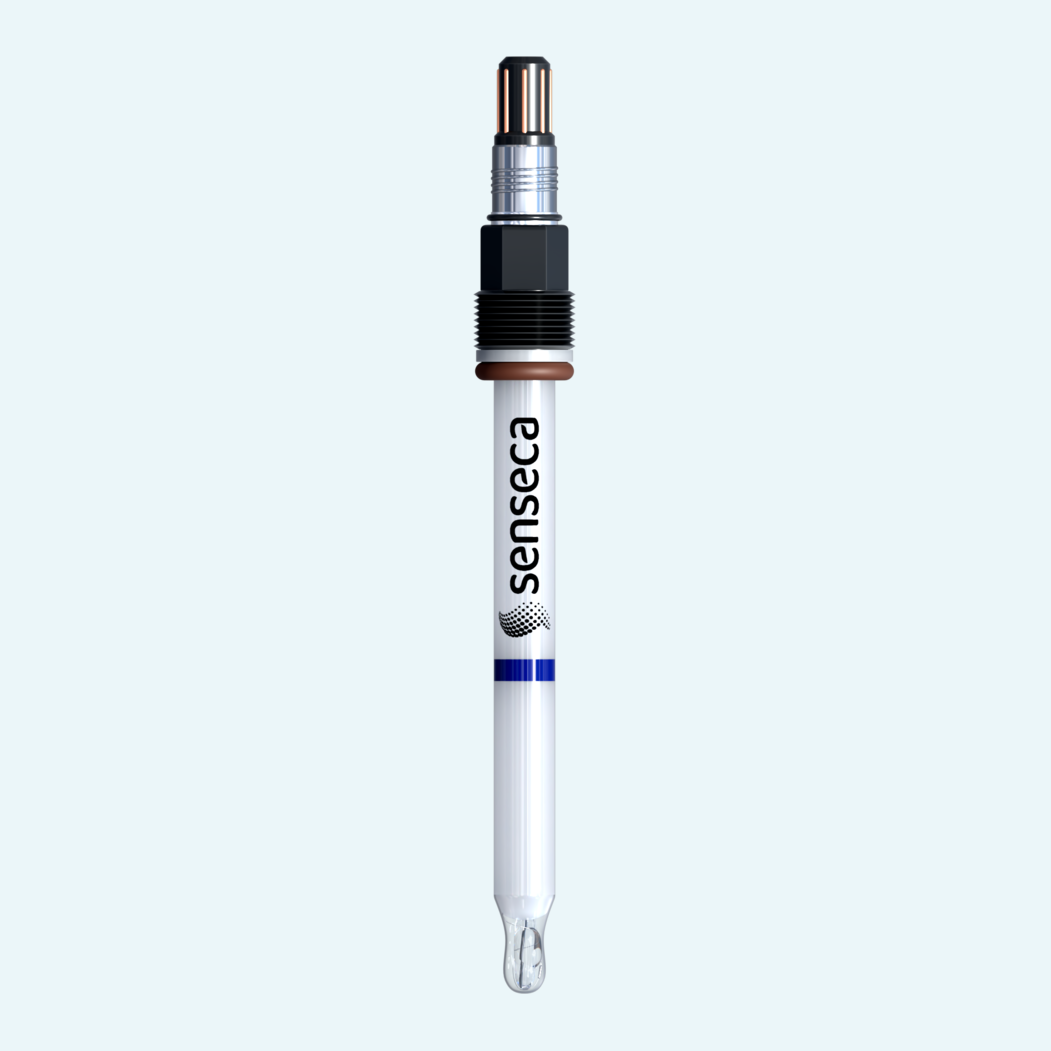

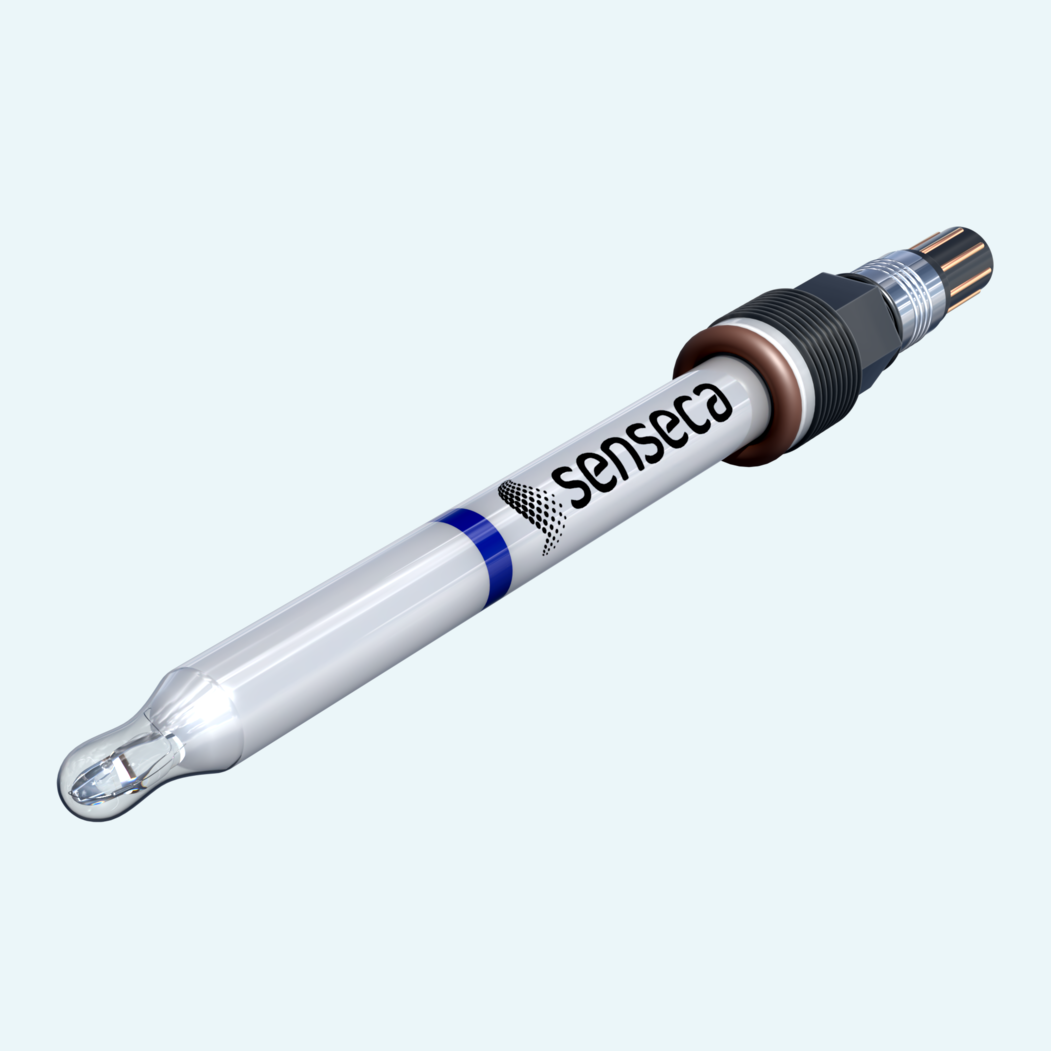

Heavily polluted media can shorten electrode life and disturb stable pH measurement. This combined pH electrode is designed for contaminated to heavily contaminated media in wastewater treatment and process chemistry, giving users a robust option for demanding process liquids.
The double chamber reference system has an extended diffusion range to support longer electrode life. Together with the electrolyte bridge, gel electrolyte and 2 x hole diaphragm, it provides direct media access with minimal diaphragm interference voltage and cannot clog due to the large diaphragm diameter.
The electrode measures 0..14 pH and operates at -5..+100 °C, up to 5 bar and from 150 µS/cm media conductivity. A 120 mm shaft, PG13,5 process connection, VarioPin electrical connection and integrated Pt1000 sensor support practical integration and temperature compensation.
| Pressure rating |
5 bar max.
|
|---|
| pH range |
0...14 pH
|
|---|---|
| Temperature sensor |
For Variopin plug head: Pt1000, Class A
For Pt1000: Pt1000 |
| Minimum conductivity |
> 150 µS/cm
|
|---|
| Process connection |
PG 13.5
|
|---|
| Electrical connection type |
For Variopin plug head: VP industrial plug-in head
|
|---|
| Probe Diameter |
For 120 mm: 12 mm
|
|---|---|
| Probe length |
For 120 mm: 120 mm
|
