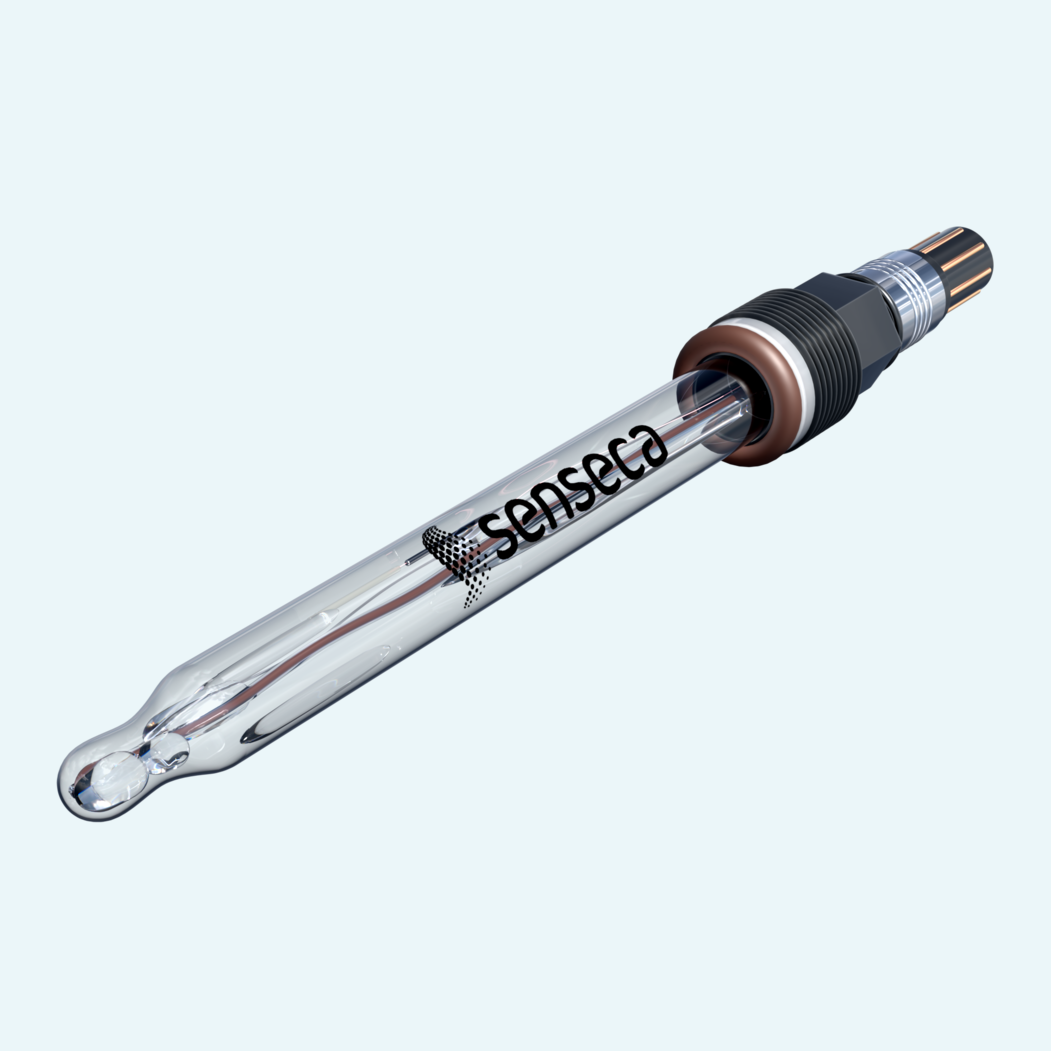

Demanding pH applications need an electrode that tolerates heat, pressure and cleaning routines without losing practical process fit. This combined pH electrode is specified for lightly polluted liquids and SIP/CIP capable applications, measuring 0...14 pH.
The temperature-resistant glass membrane and pressurized gel electrolyte support use at increased process pressures, while the Ag/AgCl reference system includes a silver ion trap for good service life. A 1 x ceramic diaphragm and minimum media conductivity of 150 µS/cm define the measurement environment.

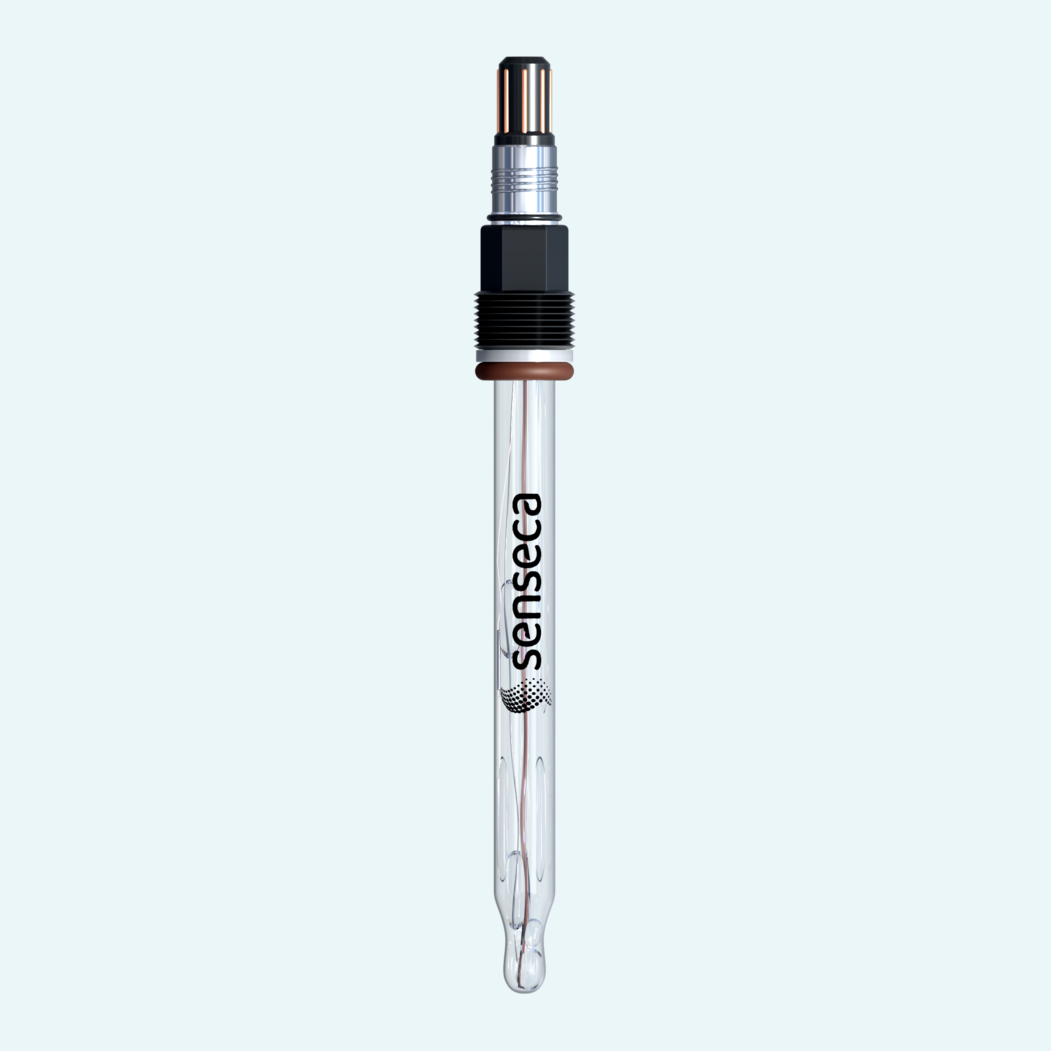

Integration is straightforward with a 120 mm glass shaft, PG13,5 process connection and VP industrial plug-in head. The integrated Pt1000 sensor supports temperature compensation directly at the electrode, and the electrode is rated for 135°C working temperature and up to 6 bar max. pressure.
| Media temperature |
0...135 °C
|
|---|---|
| Pressure rating |
6 bar max.
|
| pH range |
0...14 pH
|
|---|---|
| Temperature sensor |
For Variopin plug head: Pt1000, Class A
For Pt1000: Pt1000 |
| Minimum conductivity |
> 150 µS/cm
|
|---|
| Probe Diameter |
12 mm
For 120 mm: 12 mm |
|---|---|
| Probe length |
120 mm
For 120 mm: 120 mm |
| Process connection |
PG 13.5
|
|---|
| Electrical connection type |
For Variopin plug head: VP industrial plug-in head
|
|---|
