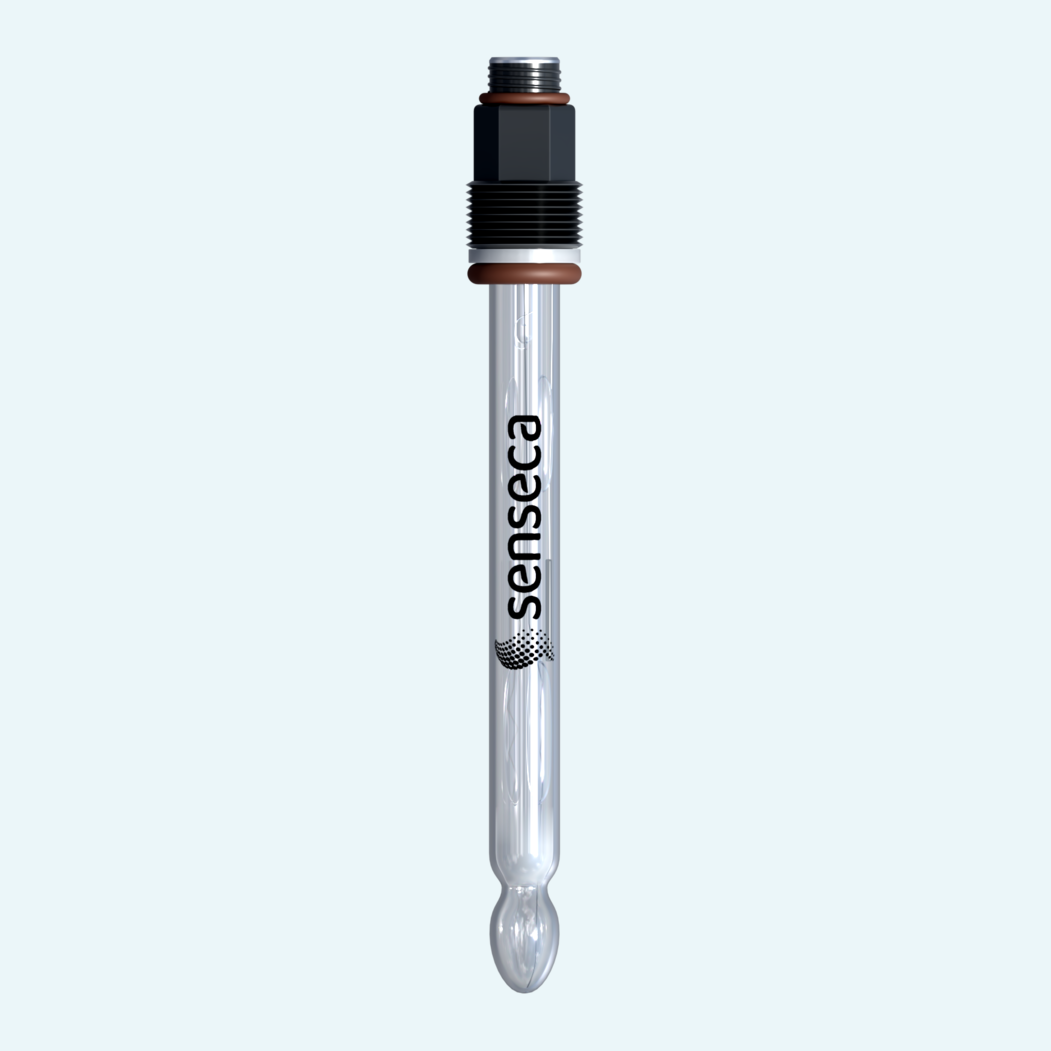

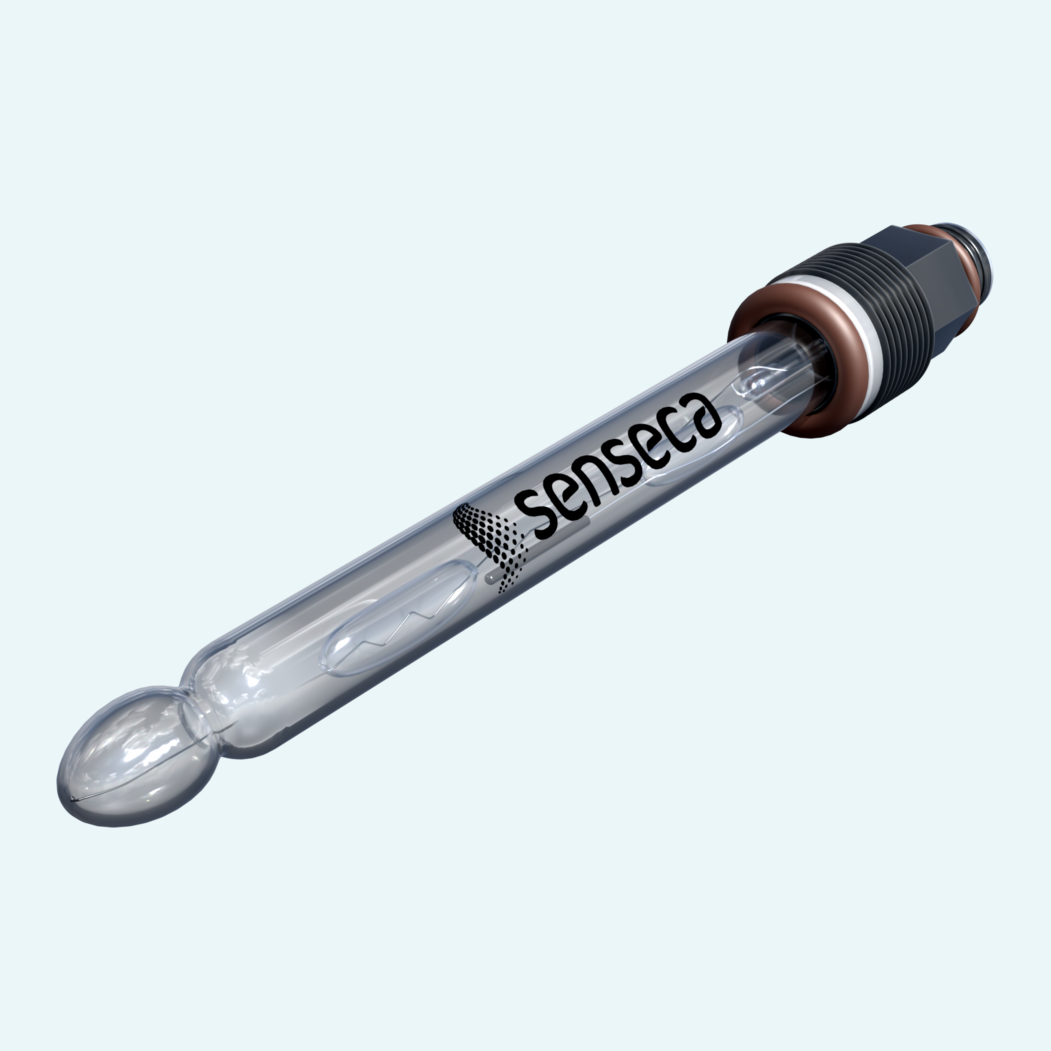

Drinking water and clear media need pH measurement with materials selected for the application. This combined pH electrode is specified for universal use in lightly polluted liquids and drinking water, with a glass shaft and electrolyte suitable for drinking water use.
The electrode measures 0..14 pH and is built with a gel-filled Ag/AgCl reference system, 1 x ceramic diaphragm and salt reserve for good service life. Its large ball membrane supports the defined pH electrode design, while the S8 industrial plug-in head enables connection through compatible S7/S8 patch cords.
With 120 mm installation length, 12 mm diameter and PG13,5 process connection, the electrode fits standard process installations. It is rated for 100°C working temperature, up to 6 bar max. pressure and media conductivity from 50 µS/cm.
| Media temperature |
0...100 °C
|
|---|---|
| Pressure rating |
6 bar max.
|
| pH range |
0...14 pH
|
|---|
| Minimum conductivity |
> 50 µS/cm
|
|---|
| Process connection |
PG 13.5
|
|---|
| Electrical connection type |
For S8 Industrial screw plug head: S8
|
|---|
| Probe Diameter |
For 120 mm: 12 mm
|
|---|---|
| Probe length |
For 120 mm: 120 mm
|
