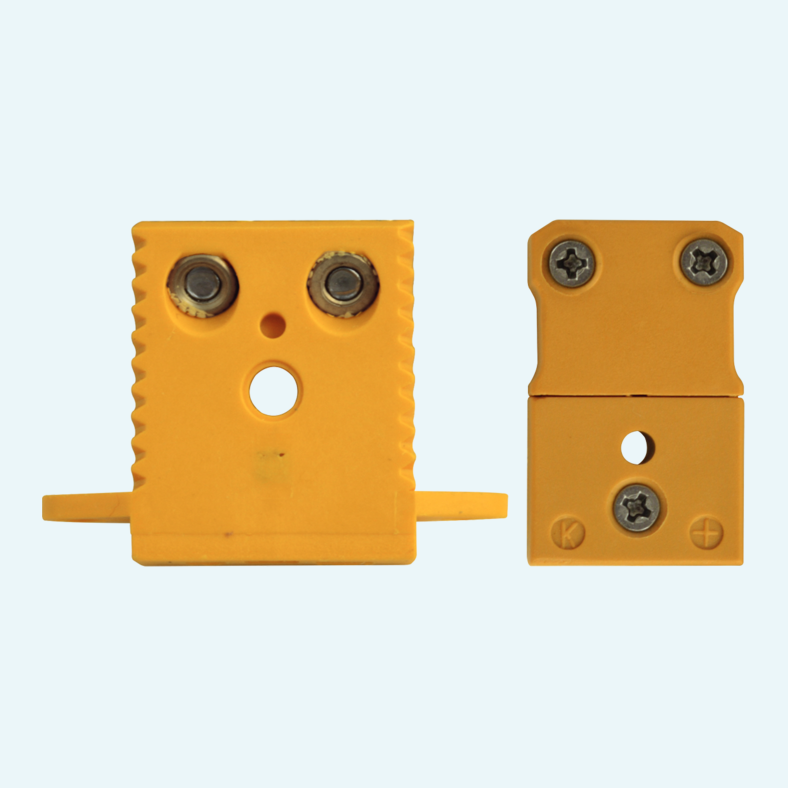

Service work on Type K thermocouple setups calls for a socket that matches the connection type and offers a practical mounting option when the connection must sit in a panel. This 2-pole miniature flat jack is designed as a spare thermocouple socket for Type K applications with NiCr-Ni pairing.
The thermovoltage-free construction supports compatible miniature thermocouple connections without changing the connection principle. An optional coupling with ears for panel mounting gives the socket a defined installation route for panel-based assemblies.
The socket provides a 2-pole connection layout for thermocouple jack applications.
The socket is specified as thermovoltage-free for use in compatible thermocouple connections.
The socket is intended for Type K thermocouples with NiCr-Ni pairing.

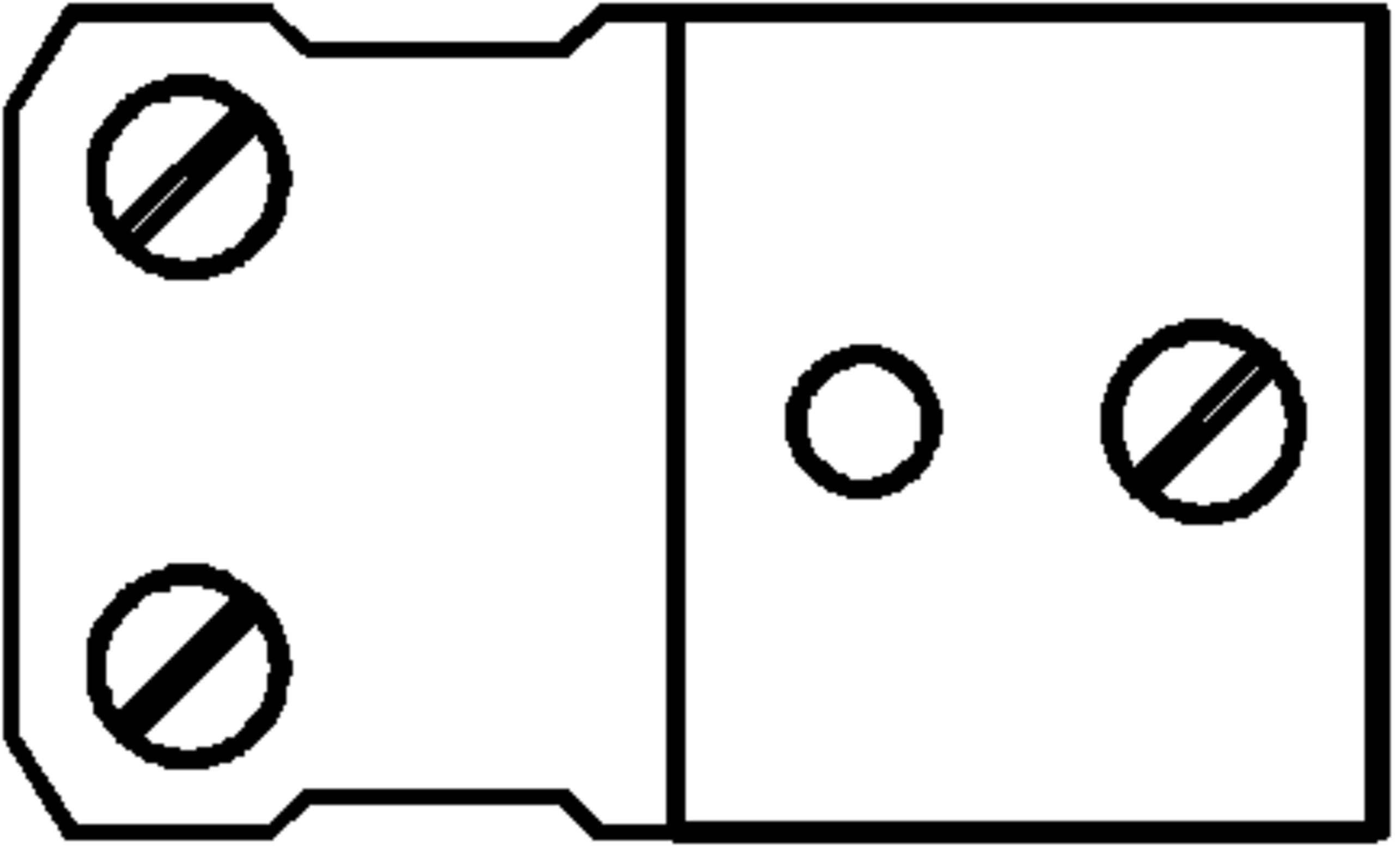

The socket uses a miniature flat-jack design.

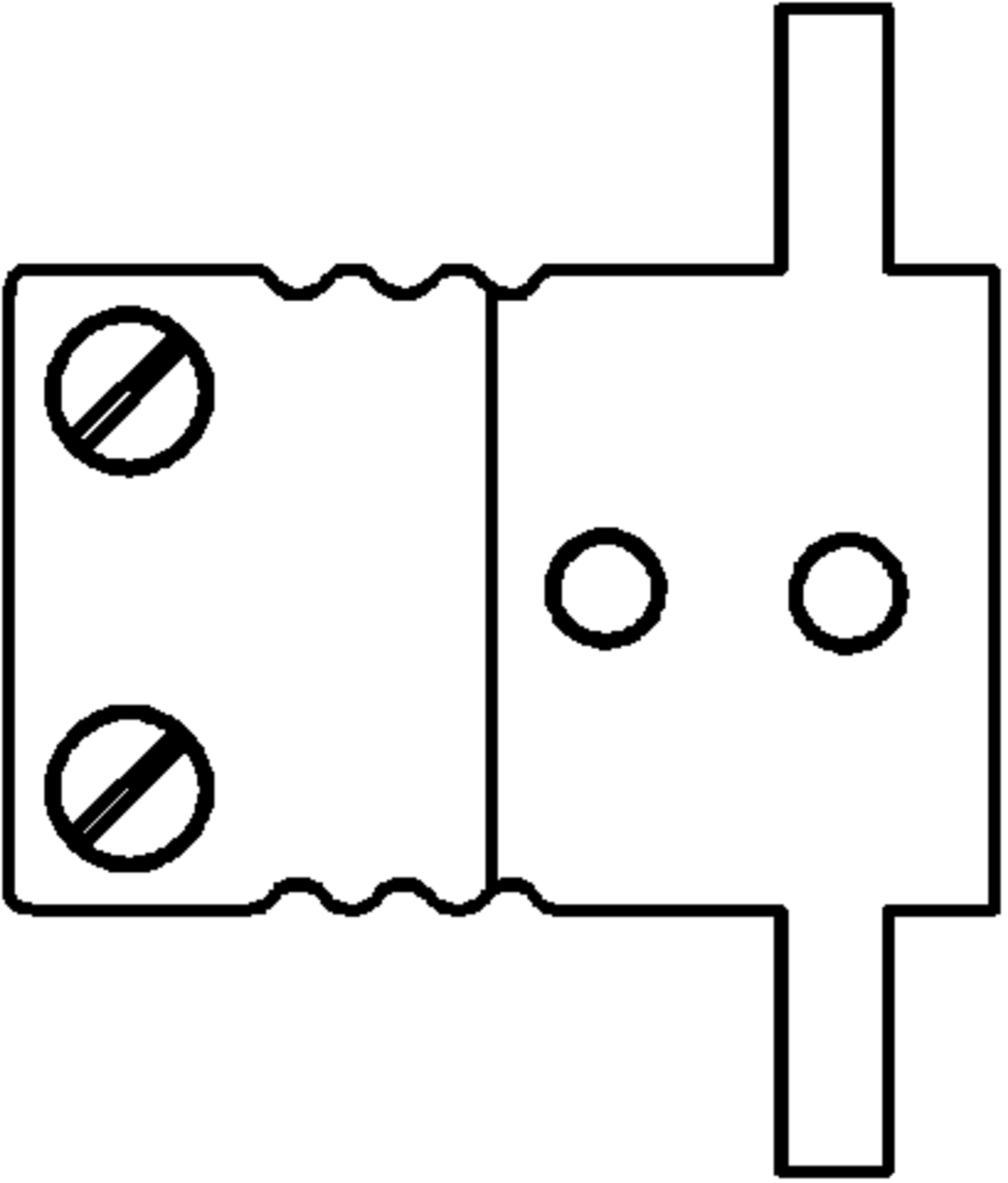

A coupling with ears is available for panel mounting.
| Measuring principle |
Thermocouples
|
|---|---|
| Temperature sensor |
Type K
|
| Connection |
Miniature flat pin plug
|
|---|
