Conductivity Cell

LF2453

2-electrode ultra-pure water cell with Clamp connection acc. to DIN 32676 or Südmo Aseptic DIN 11850 connection
Product Inquiry

Selected product option for Conductivity Cell. All information below applies to the selected product option.

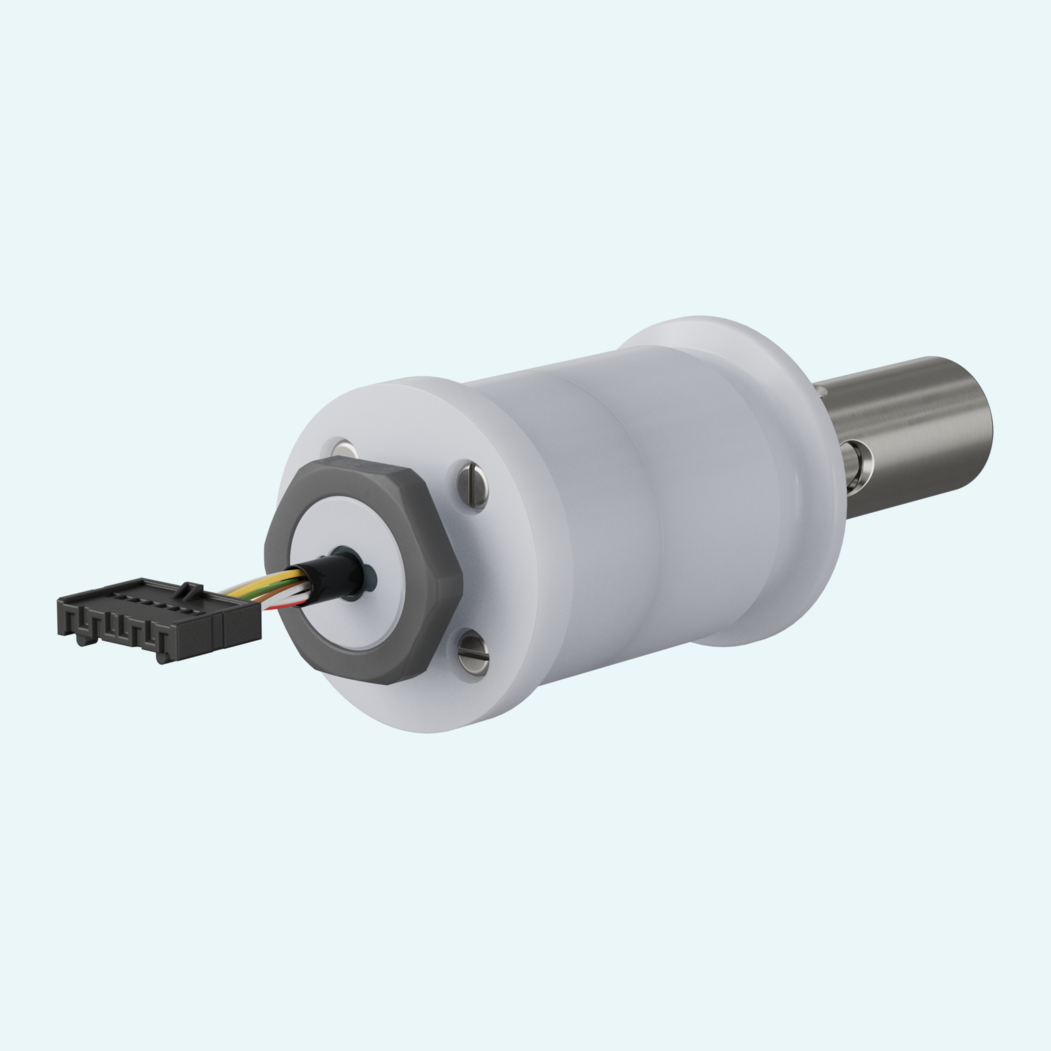

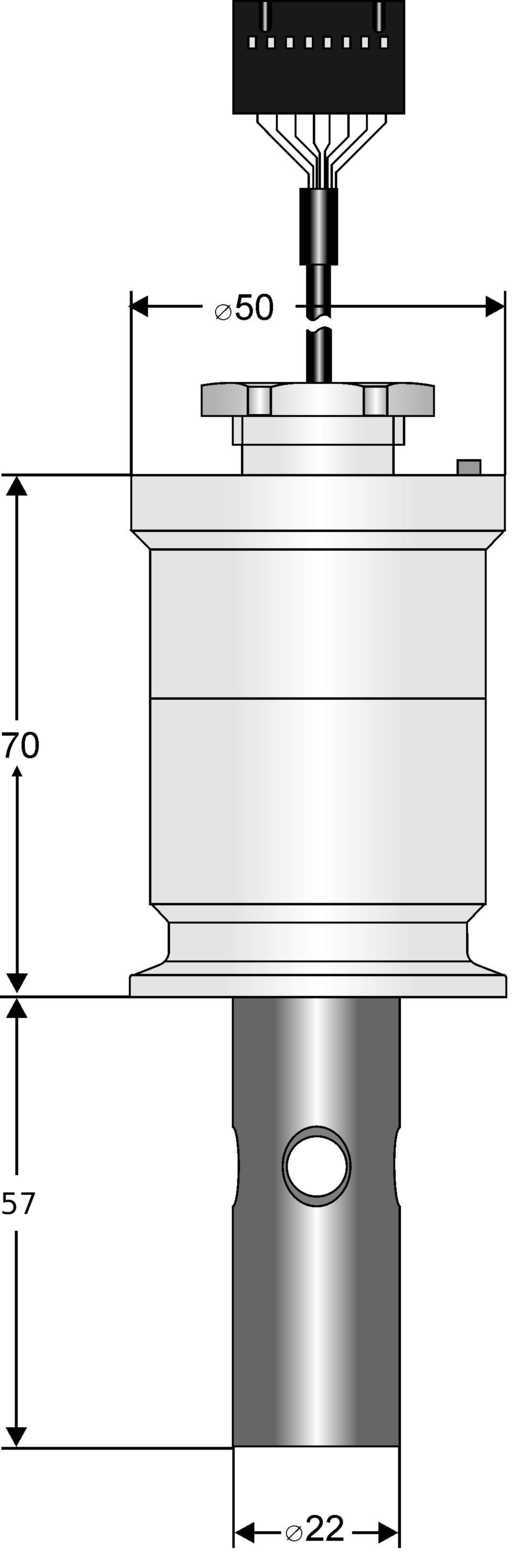

LF1453 (for head mounting with UNICON-LF) 2-electrode ultra-pure water cell with Clamp connection acc. to DIN 32676 or Südmo Aseptic DIN 11850 connection

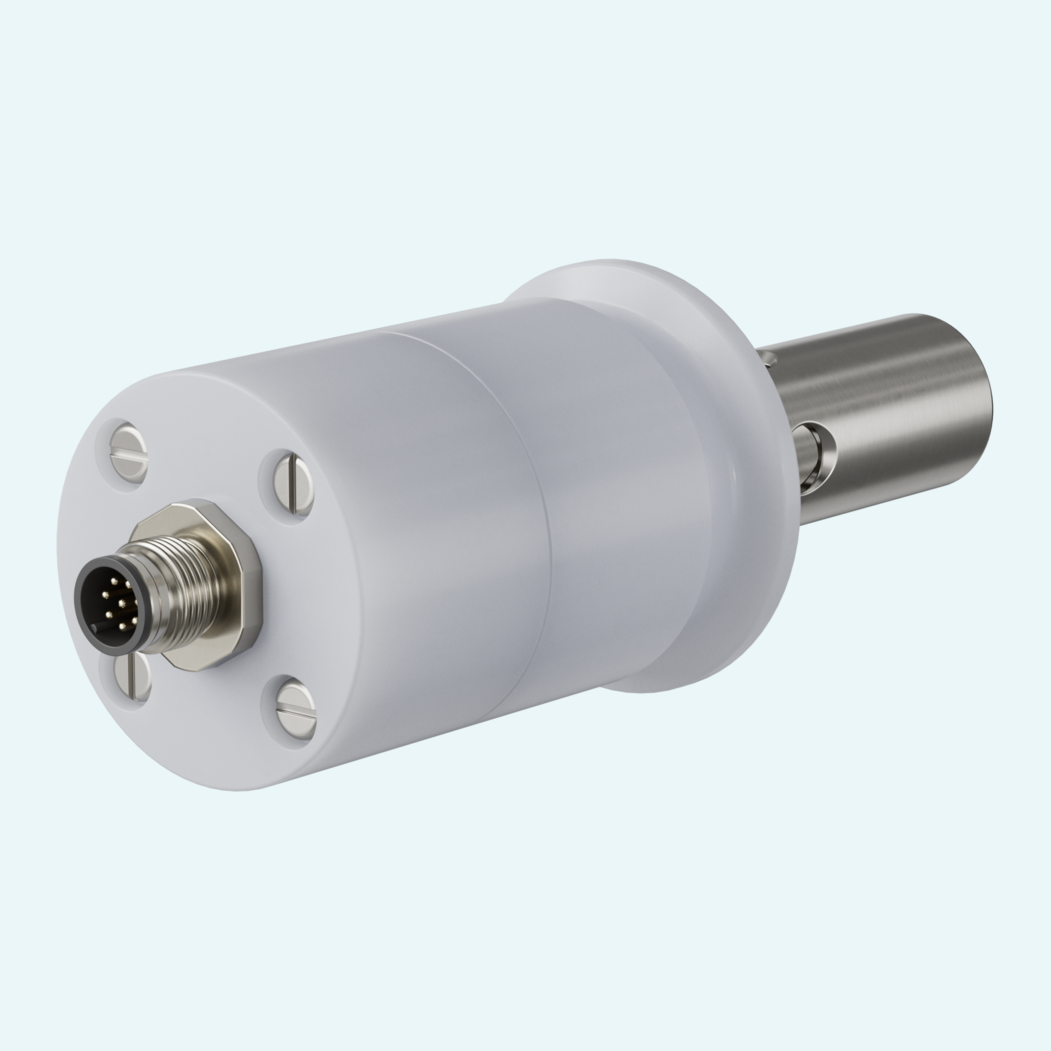

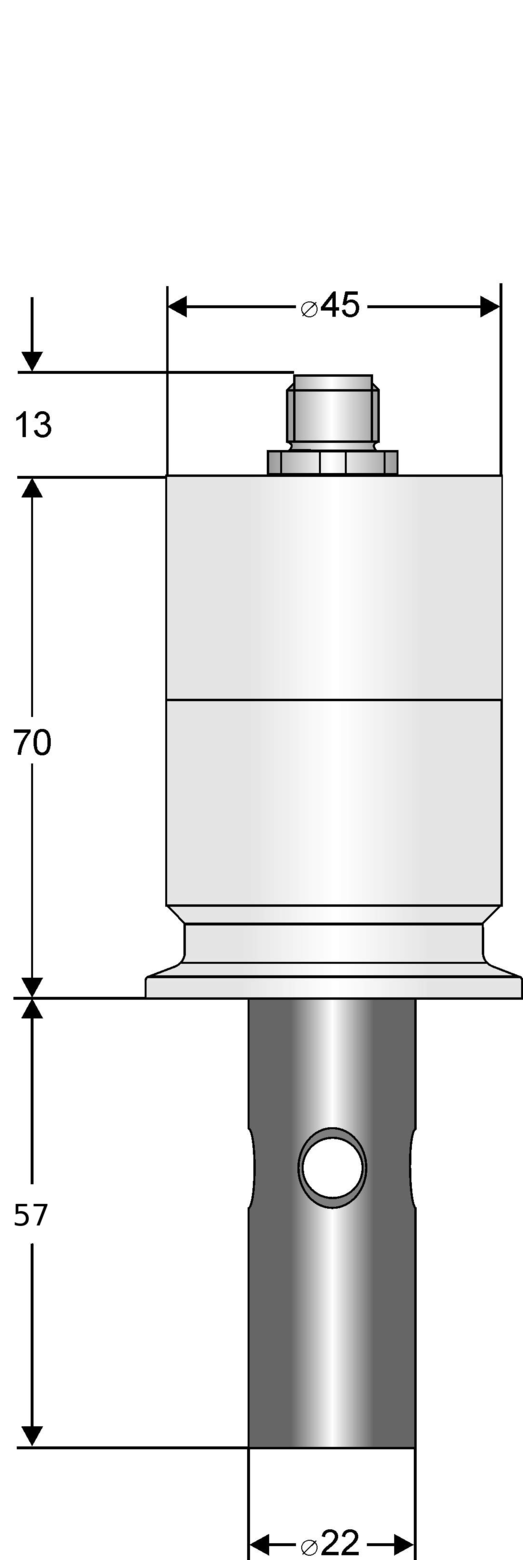

LF2453 (for field mounting) 2-electrode ultra-pure water cell with Clamp connection acc. to DIN 32676 or Südmo Aseptic DIN 11850 connection

Introduction

Hygienic conductivity cell for low-conductivity media in food/pharma-industry process environments, combining ultra-pure water sensitivity with robust process conditions and FDA-compliant wetted materials.

Hygienic process fit
Hygienic process fit
FDA-compliant wetted materials support use in food/pharma industry applications.
Ultra-pure water range
Ultra-pure water range
Measures low conductivity from 0..0.5 µS/cm up to 0..50 µS/cm
CIP/SIP ready
CIP/SIP ready
Handles -10..+120 °C and 140 °C for less than 1 h during cleaning cycles

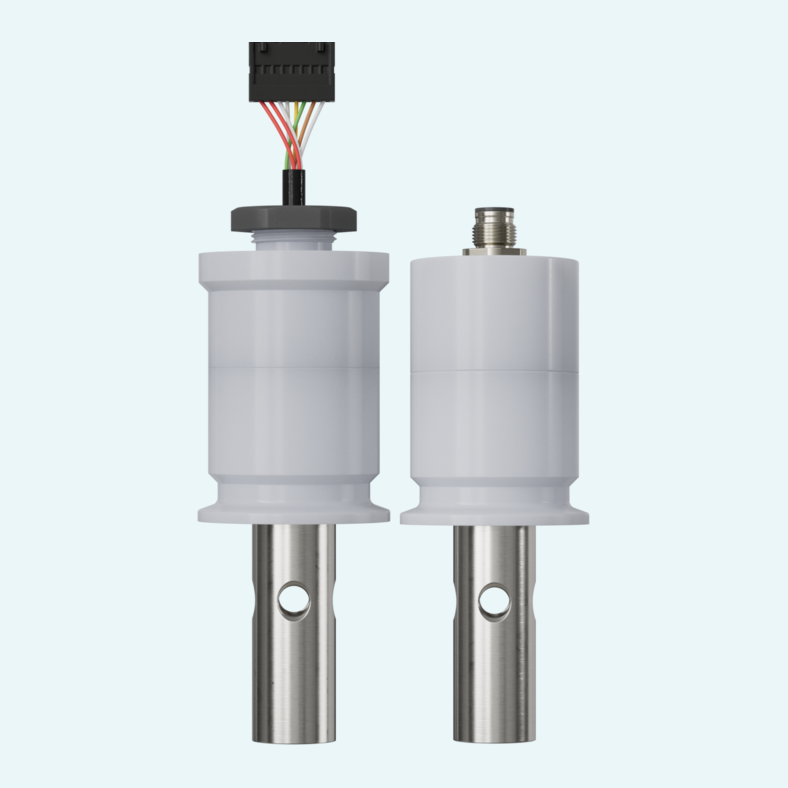

Flexible mounting
Flexible mounting
LF1453 supports head mounting with UNICON-LF, LF2453 field mounting with M12x1 connector, IP67.
