Clear connection planning starts with the right cable assembly. This product family provides pre-assembled circular connector cables for 4-pole and 5-pole connections, helping you select the required pole count, cable length and outlet direction directly from the order key.
For installation flexibility, the PUR cable is available in 2 m, 5 m and 10 m versions, with further lengths on request. Straight and 90 ° angled connector outlets support different mounting situations, while shielded and unshielded variants allow the assembly to be matched to the electrical setup.
The family covers two standard pin layouts: K04 for 4-pole connections and K05 for 5-pole connections. Color assignment is defined in the source for the individual poles, supporting clear wiring during installation.
The family includes 4-pole and 5-pole circular connector versions, identified in the order key as K04 and K05.
Standard cable lengths are 2 m, 5 m and 10 m. Further lengths are available on request according to the source.

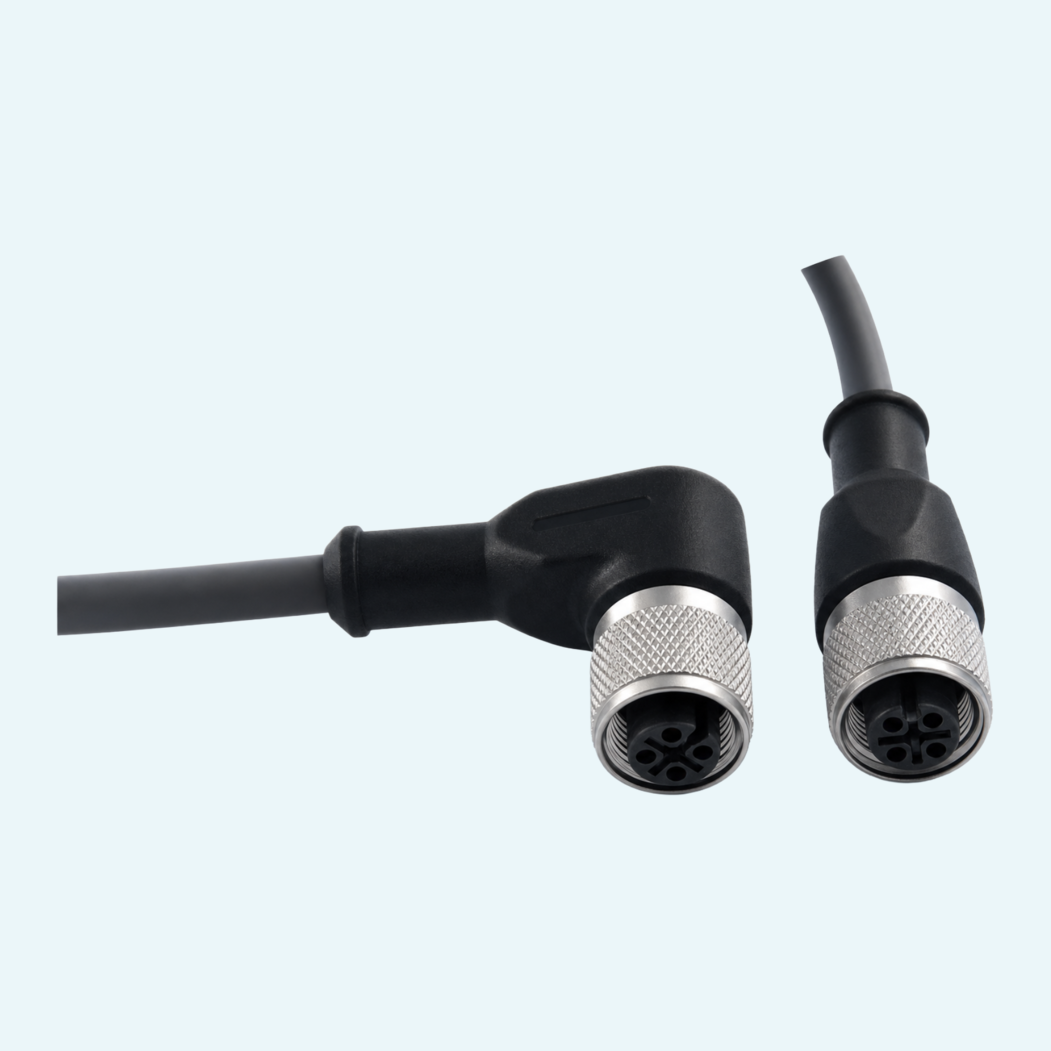

The connector outlet can be selected as straight or angled at 90 °.
