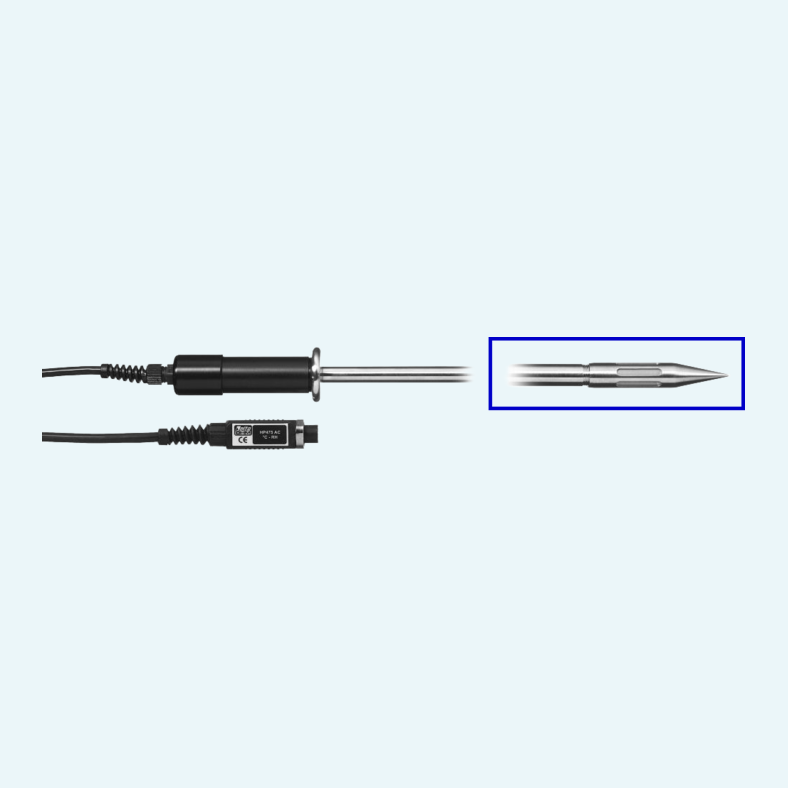

The HP475ACR and HP475AC1R are robust combined probes for simultaneous measurement of relative humidity (%RH) and temperature (Pt100), designed for demanding industrial and agricultural applications. Both probes feature a stainless steel stem and integrate a SICRAM module for plug-and-play compatibility with supported instruments. The HP475ACR covers an operating range of -40...+150 °C and 0...100 %RH, with a pointed tip (Ø 14 x 75 mm) optimized for penetration measurements — including water activity monitoring in grains. The HP475AC1R extends the temperature range to -40...+180 °C and adds a stainless steel 20µ sintered filter for enhanced protection of the sensing element in contaminated or humid environments. Both models include a 2 m connecting cable and are built for reliable long-term use in process, environmental, and storage monitoring.

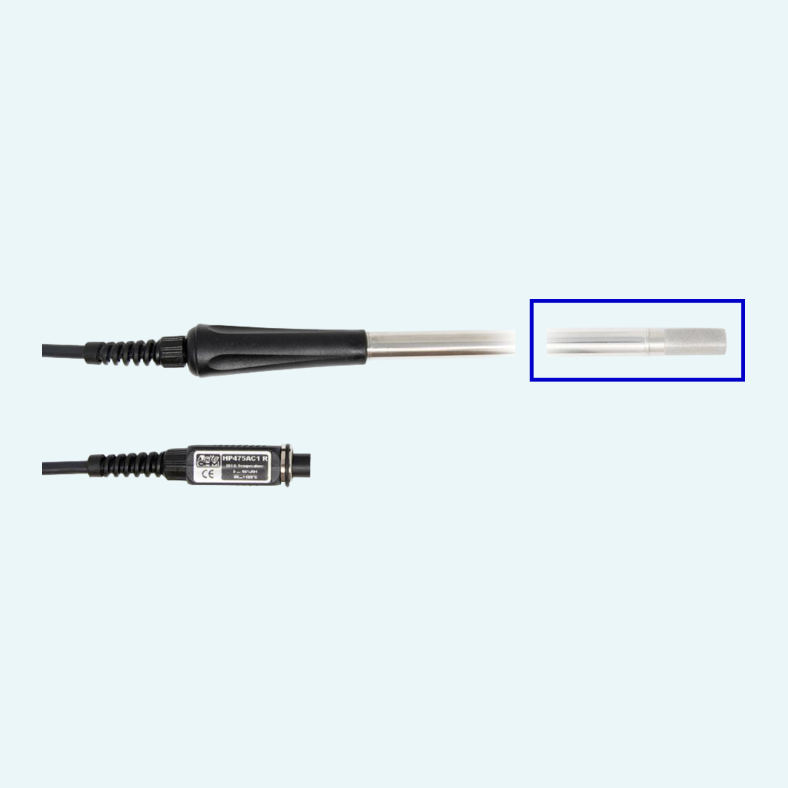

Stainless steel 20µ sintered filter
| Accuracy relative humidity |
±1.5% RH (0...90%RH) ±2.0% RH (90...100%) @ T=15...35°C ±(1.5 + 1.5% of the displayed value)% RH in the remaining temperature range
|
|---|---|
| Relative humidity range |
0...100 %RH
|
| Sensor type relative humidity |
Capacitive
|
| Sensor type temperature |
Pt100
|
| Accuracy temperature |
±0.3 °C
|
| Temperature range |
-40...+180 °C
|
| Connection |
8-pole male DIN45326 connector
|
|---|---|
| Probe Diameter |
14 mm
|
| Handle |
80 mm
|
| Probe length |
480 mm
|
| Cable |
2 m
|
| Material |
Stainless Steel
|
