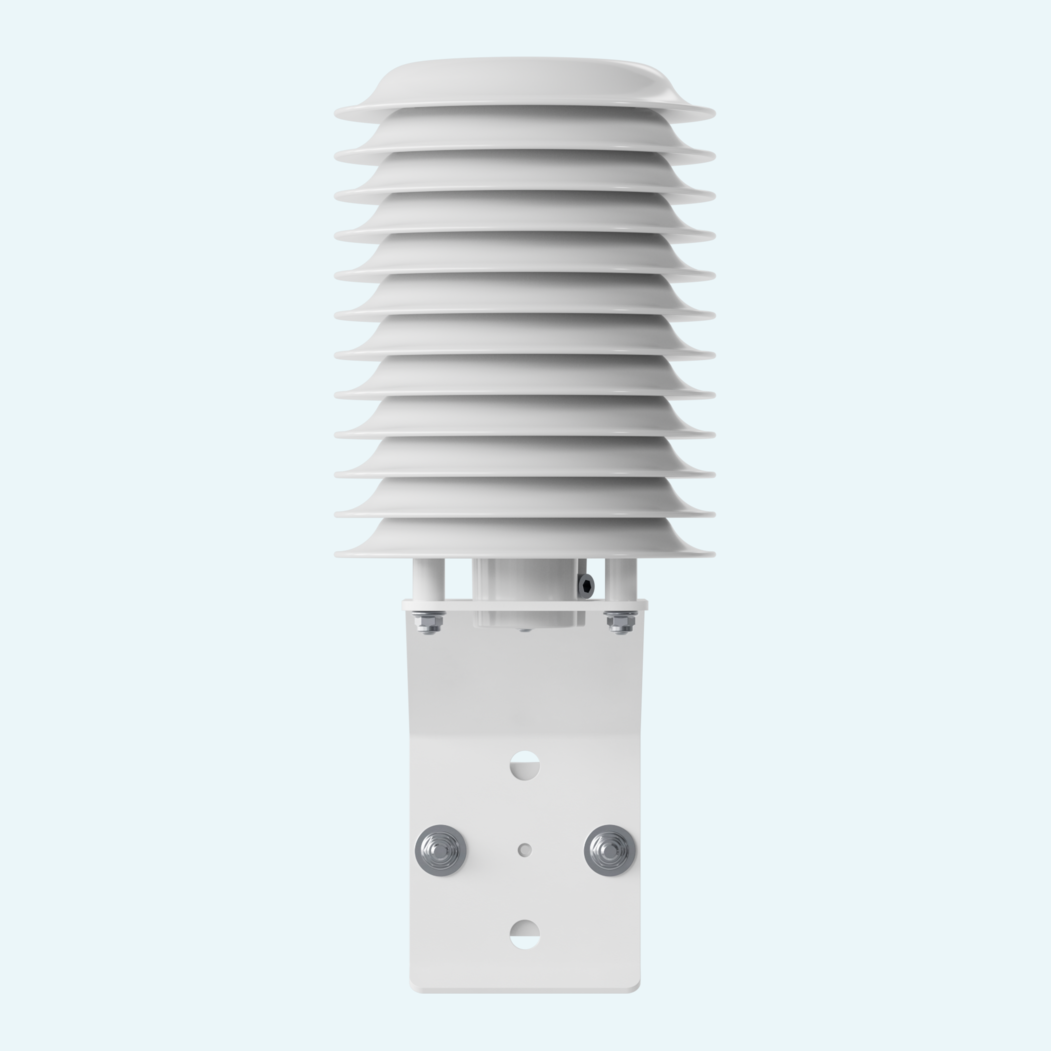

Accurate outdoor air temperature and humidity data depends on shielding the sensor from direct solar radiation and precipitation without trapping heat. HD9007A is a passive multiplate radiation shield designed to protect temperature and temperature/humidity probes from sun, rain and wind while promoting air circulation around the sensor.
The multiplate design supports natural ventilation to reduce radiation-driven measurement errors. Discs made of UV-resistant, antistatic thermoplastic with low thermal conductivity and high reflectivity help limit heat absorption, while the white finish supports stable exposure in outdoor monitoring.

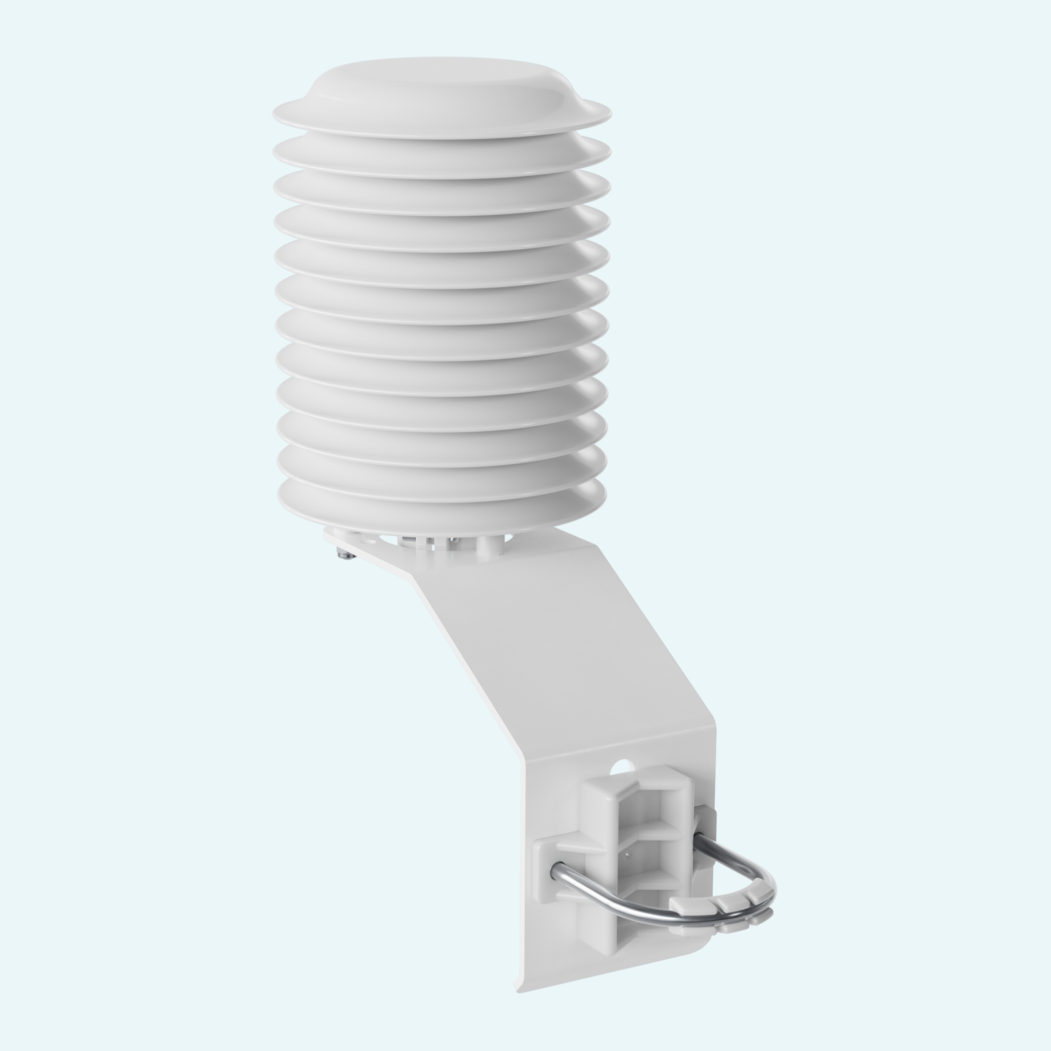

Installation is built for field work. A powder-painted anticorodal aluminum support bracket provides robust mechanical support, and the stainless steel U-bolt mounting system fits poles or masts with 30 to 50 mm diameter. HD9007A is available as a 12-ring or 16-ring version to match the mounting height required.
A series of shaped plates blocks radiation and precipitation while supporting airflow around the probe.
Discs are made of ASA thermoplastic with UV-resistant, antistatic properties.
Powder-painted anticorodal aluminum bracket provides mechanical support and corrosion resistance.
U-bolt mounting system supports installation on 30 to 50 mm diameter masts.
HD9007A-1 uses 12 rings with 175 mm height. HD9007A-2 uses 16 rings with 227 mm height.
The shield supports probes with suitable diameter 26 mm and 14 mm.
