Sheathed thermocouple type K

GTT

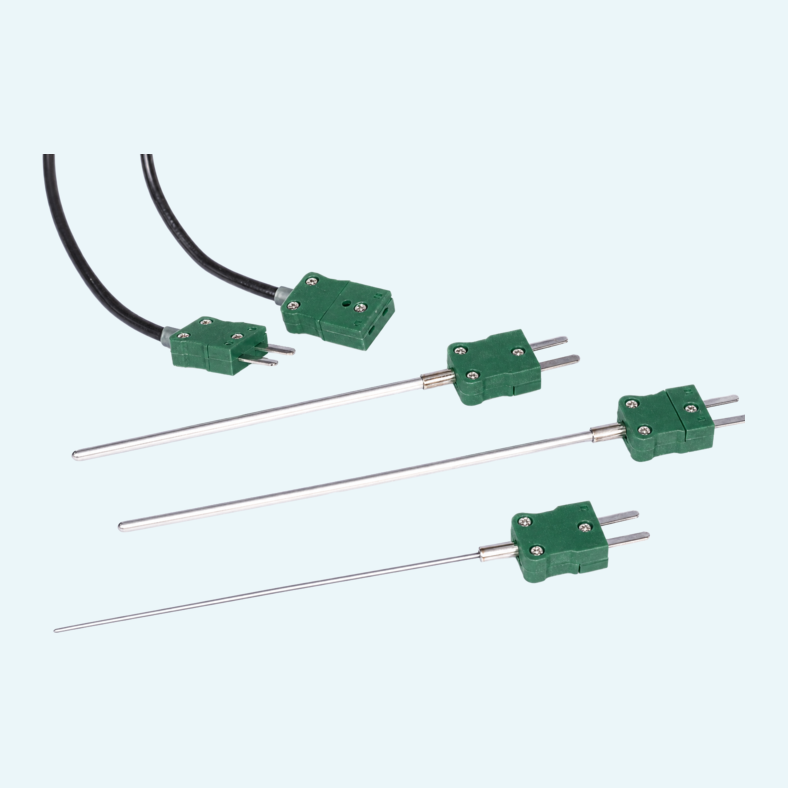

Sheathed thermocouple type K (NiCr-Ni) in different configurations. With standard mini flat pin connector, bendable, high temperature Inconel up to 1150 °C.
Product Inquiry

Introduction

Sheathed thermocouple type K (NiCr-Ni) in different configurations. With standard mini flat pin connector, bendable, high temperature Inconel up to 1150 °C. For universal use, easy to be extended with type K extension cable.
Wide choice of diameters from 0.5 ... 6 mm, supporting standardlengths from 150 to 1500 mm.

max temp. connector: 200°C

Recommended max temperature of thin variants for permanent operation:
0.5 mm:    700°C
1.0 mm:    700°C
1.5 mm:    920°C

High temperature probe
Up to 1150°C with robust Inconel 600 jacket
Standard type K connector
Mini flat pin connector, normed size, dinstinctive polarity, compatible with ECO 130, PRO 131/135 and others
Bendable
For flexible adjustment to Your specific measurement challenge: Simply bend it to position

Features

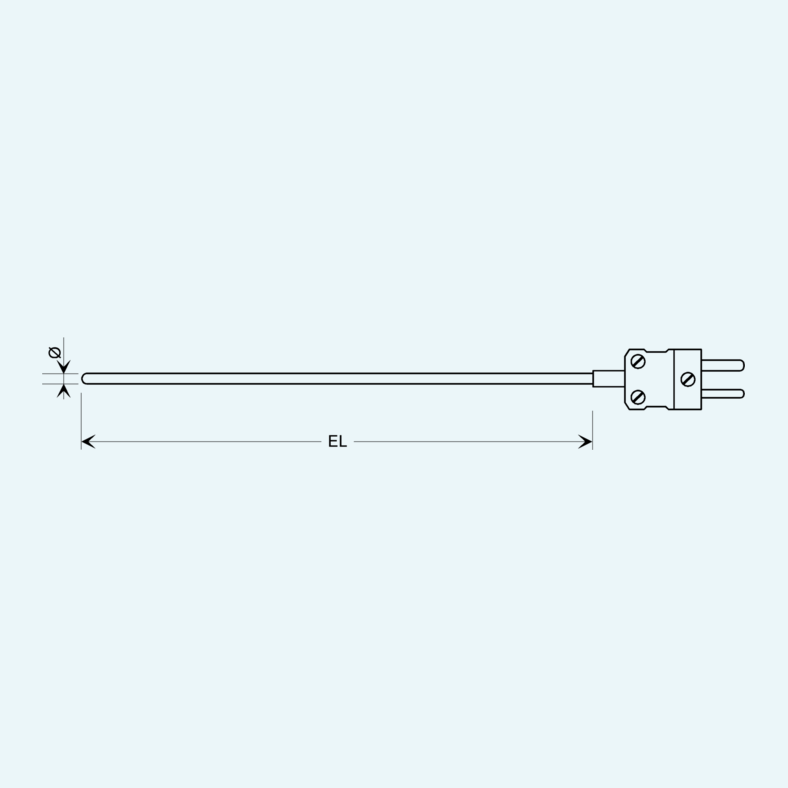

Choice of Diameter

Diameters of 0.5, 1.0, 1.5, 3.0. 6.0 are avaialble

Choice of length

Length can be selected out of: 150, 250, 500, 1000, 1500 mm
