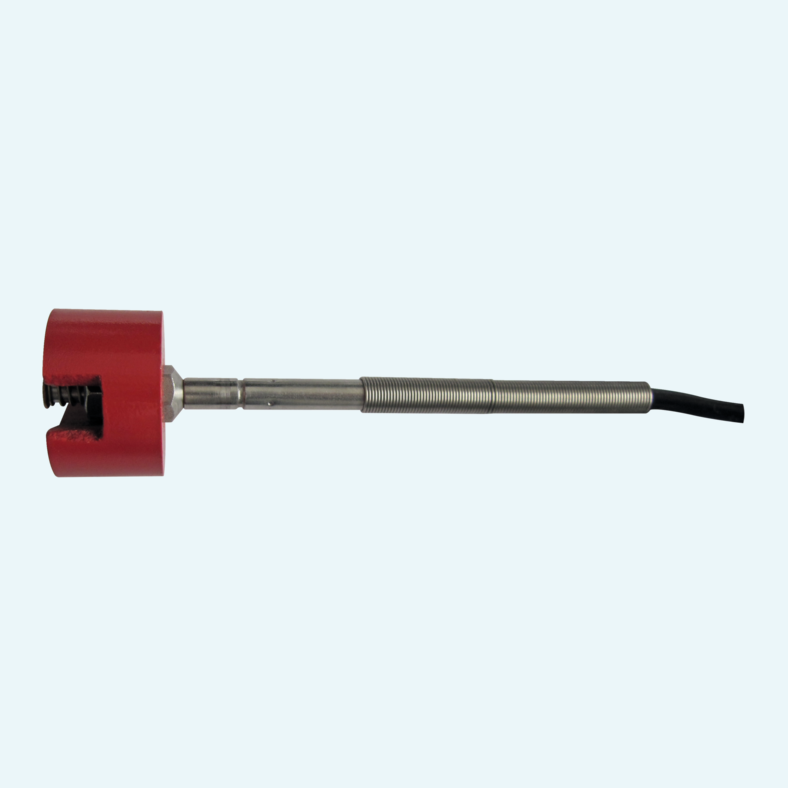

Changing surface measurement points should not slow down service work or commissioning. This magnetic surface probe attaches directly to ferromagnetic materials, with no separate mounting effort, and keeps your hands free while the reading is taken.
The Ø5 mm spring-loaded copper measuring tip supports reliable surface contact and reproducible values. The family covers Type K measurements from -65 ... +200 °C and Pt100/Pt1000 measurements from -50 ... +200 °C, giving users the right sensor element for their instrument setup and accuracy requirements.
For integration into existing measurement tasks, the large probe variant offers a Ø26 mm magnet, common connector options and cable lengths of 1 m, 2 m or 5 m, with other lengths on request. Type K versions meet class 1 accuracy; Pt versions are available in DIN class B/A/AA.
The family includes Type K, Pt100 and Pt1000 versions, with 2-wire (Pt1000), 3-wire (Pt100) or 4-wire (Pt100) configurations depending on the selected sensor element.
Type K versions comply with class 1. Pt100 and Pt1000 versions are available with DIN class B, class A or class AA accuracy.
Type K versions are available with miniature flat-pin plug or loose ends with wire end ferrules. Pt versions use Ø3.5 mm jack (Pt1000 2-wire) , Mini-DIN connectors (Pt100 4-wire) or loose ends with wire end ferrules, depending on the configuration.
Standard cable lengths include 1 m, 2 m and 5 m. Other cable lengths are available on request.
In combination with a suitable display device, probes can be supplied with DAkkS/ACCREDIA-accredited ISO/IEC 17025 calibration or ISO 9001 calibration.
| Measuring principle |
Thermocouples
|
|---|---|
| Temperature sensor |
Type K, Class 1
|
| Temperature range |
-65...+200 °C
|
| Temperature range TC K |
-65...+200 °C
|
| Response time (T90), analog output (passive) |
5 s
|
|---|
| Weight |
110 g
|
|---|
| Cable |
2 m Silicon
|
|---|---|
| Connection |
Miniature flat pin plug
|
| Probe Diameter |
26 mm
|
| Type |
surface probe
|
