Pt100 compact ambient air sensor for GMH3710 and GMH3750 use.

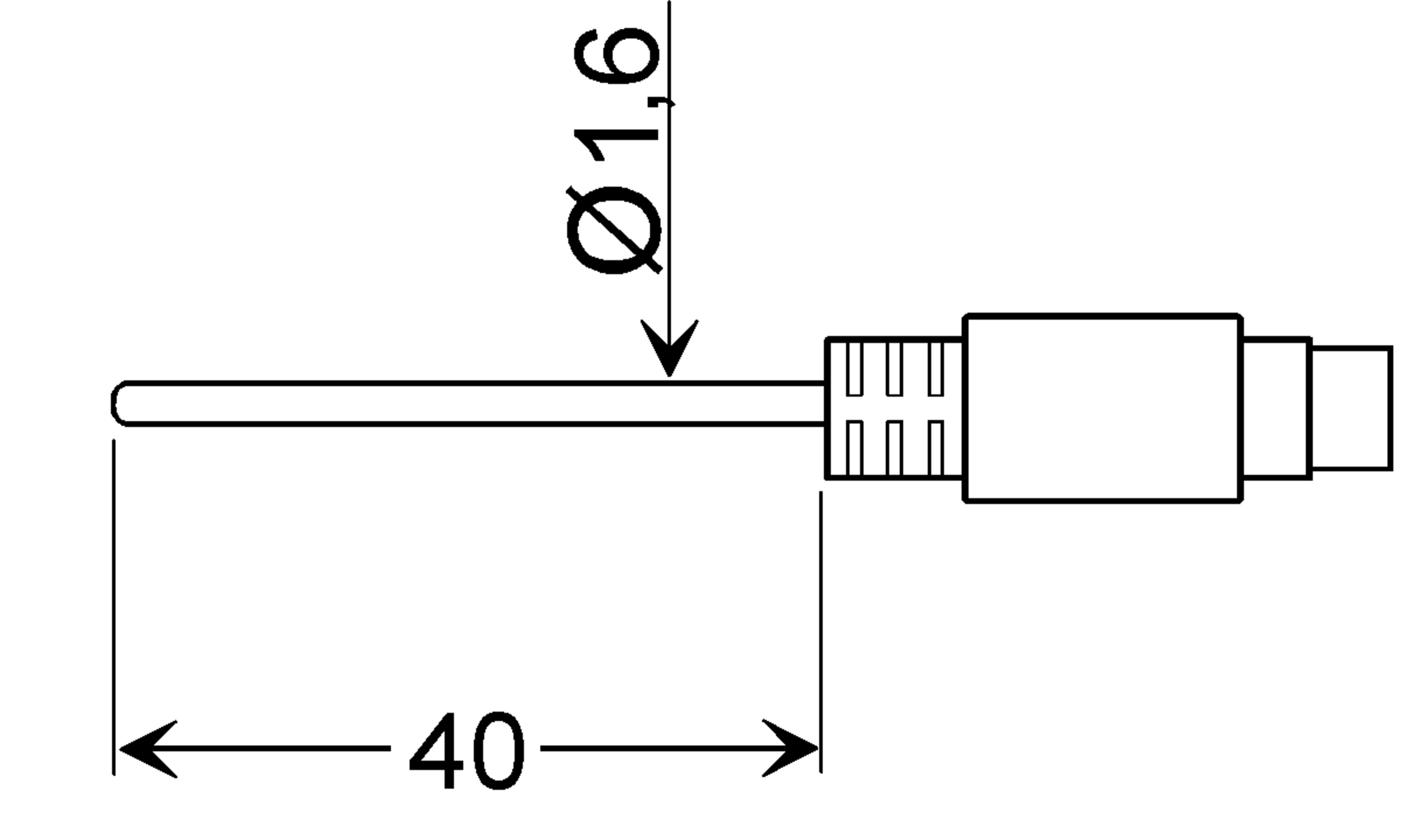

V4A tube Ø 1.6 mm, stem length 40 mm, 4-pin. Mini-DIN-connector
Fair response time T 90 in air 2 m/s approx. 25 s
| Measuring principle |
RTD
|
|---|---|
| Temperature sensor |
Pt100, Class A
|
| Temperature range |
-25...+70 °C
|
| Response time (T90), analog output (passive) |
25 s
|
|---|
| Cable |
0 m
|
|---|---|
| Connection |
4-pole Mini-DIN
|
| Probe Diameter |
1.6 mm
|
| Probe length |
40 mm
|
| Material |
AISI 316 stainless steel
|
