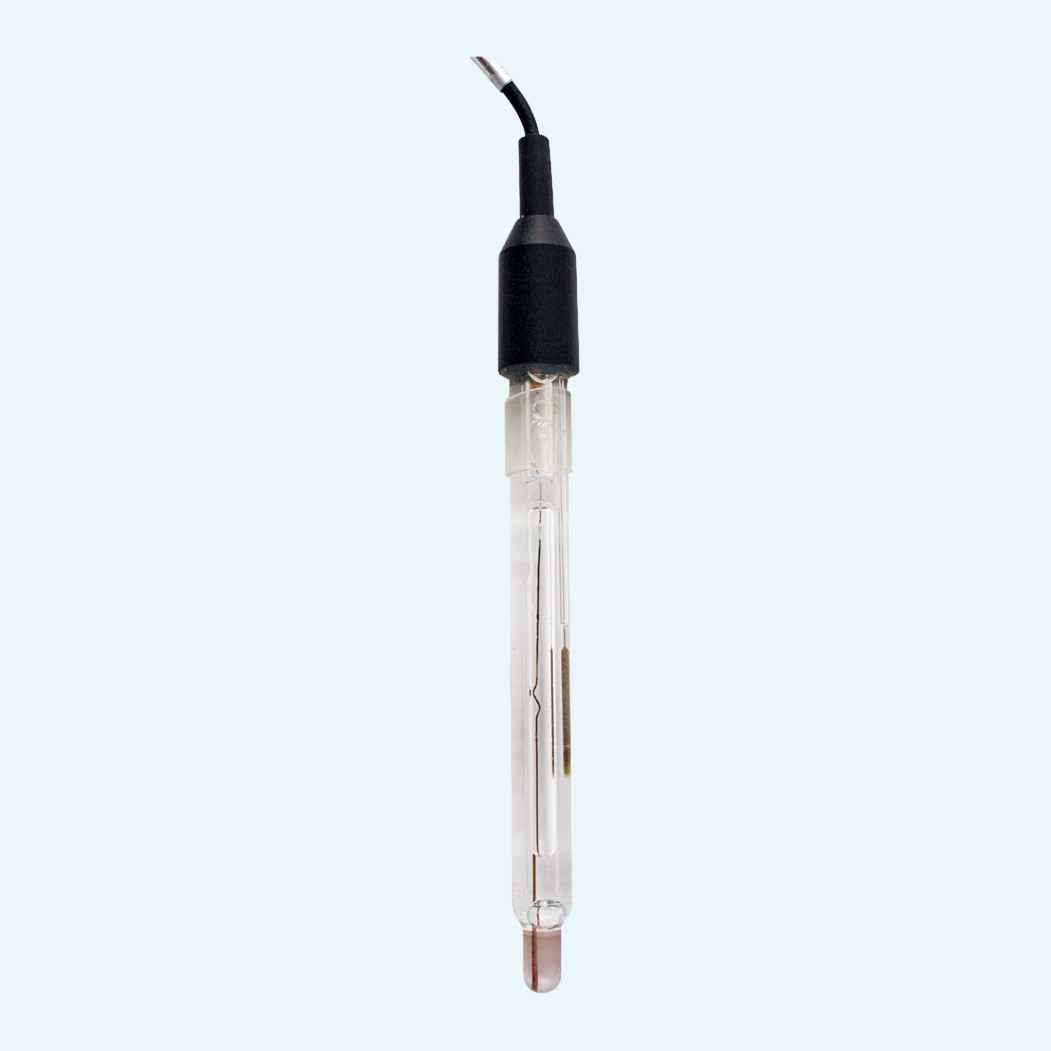

Paints, lacquers and galvanic baths place specific demands on pH measurement, especially when chemical resistance and stable contact with the sample are important. The GE 151 is designed for these difficult measurement conditions, using a chemically resistant glass tube and ceramic diaphragm for reliable measurement in galvanic applications.
With a measuring range of 0 ... 14 pH and an operating temperature of 0 ... 80°C, the electrode is suitable for media above 100 µS/cm. It uses 3 mol/l KCl reference electrolyte and is available with Cinch or BNC connection, making it easy to integrate with compatible handheld pH measuring devices. For users working with paints and lacquers, the glass construction provides a practical match for chemically demanding samples.
Suitable for aquarium water, fish farming, galvanic baths, beverages, sea water, process chemistry, swimming pool water, drinking water, ...
3mol/l KCl. The reference electrolyte maintains a constant voltage in the reference system and establishes the electrical connection between the diaphragm and the reference electrode.
1 x ceramic / cylinder
| Pressure rating |
0 bar
|
|---|
| pH range |
0...14 pH
|
|---|---|
| Sensor protection |
Chemically resistant
|
| Operating temperature |
0...80 °C
|
|---|---|
| Minimum conductivity |
> 100 µS/cm
|
| Housing features |
Glass tube
|
|---|
| Cable |
1 m
|
|---|---|
| Connection |
BNC
|
| Probe length |
120 mm
|
| Probe Diameter |
12 mm
|
The GAD 1 BNC adapter is included with Cinch (RCA) versions. This adapter is required to connect the electrode, which is equipped with a BNC connector, to a measuring device with an RCA input.
