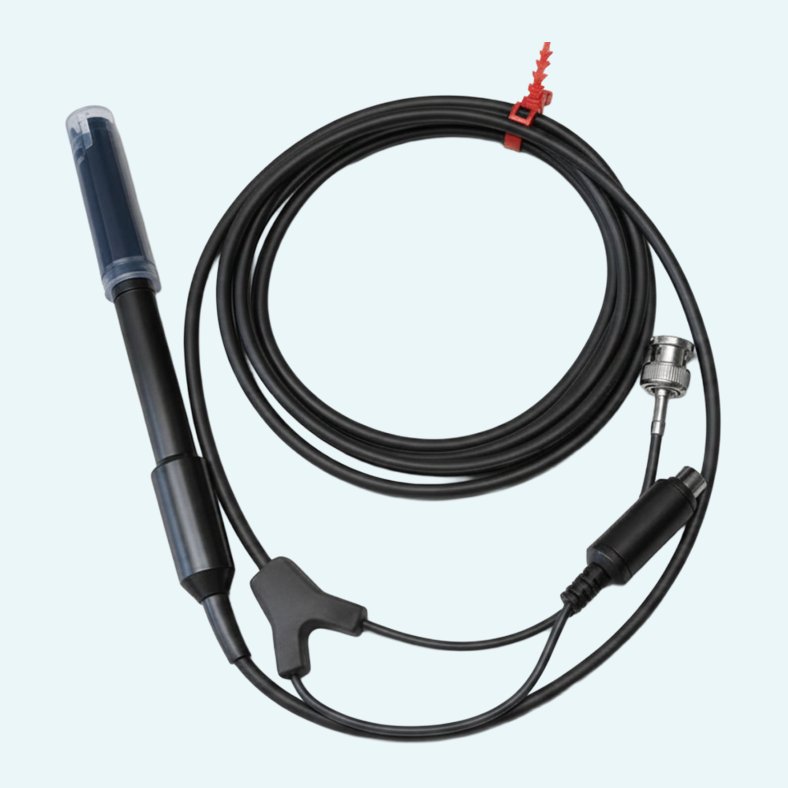

pH-electrode with integrated Pt100 sensor

GE 109-BNC-L02

BNC, 2 m, pH-electrode for usage especially with obsolete GMH 3530/ GMH 3550, temperature compensated Pt100
Order Code:
GE109-BNC-L02
Article Number:
600726
Product Inquiry

Introduction

This pH-electrode for is solely for use with the discontinued GMH 3530 / GMH 3550, including a 4 wire Pt100 sensor for temperature compensation via Mini-DIN connector.

pH signal is transferred via BNC plug.

Universal application type.

Versatile
Suited for aquarium water, on-site measurements, fish farming, sea water, ...
Gel electrolyte
Low-maintenance and reliable measurement in any orientation. No noticeable leakageunder normal measurement conditions
Temperature compensated
Integrated Pt100 sensor for reliable temperature measurements
Pressure resistant
Up to 6 bar

Features

Reference electrolyte

3 mol/l KCl (gel). The reference electrolyte maintains a constant voltage in the reference system and establishes the electrical connection between the diaphragm and the reference electrode.

Diaphragm type / Membrane shape

2 x ceramic /cylinder
