Small connection parts can decide how smoothly a measuring setup is assembled or serviced. This GDZ accessory family supports tube, filter and manometer connections with defined components for common hose dimensions, Luer-Lock interfaces and standard pressure gauge threads.
The family includes hose clamps for 6/4 hose and for 10/7 or 8/6 hose, with 10 or 8 mm outside diameter and 7 or 6 mm inside diameter. For filtering and adaptation tasks, it offers a filter diaphragm with Luer-Locks, male and female Luer-Lock adapters to 6/4 tube, a porous PE plastic filter with male thread G 1/8 and Ø 7 mm self-adhesive filter membranes in packs of 10.
For manometer connections, profile gaskets are available for thread G ¼ and G ½. This gives users a practical selection of matching accessories for assembly, replacement and service work.
The family includes clamps for 6/4 hose and for 10/7 or 8/6 hose, covering 10 or 8 mm outside diameter and 7 or 6 mm inside diameter.

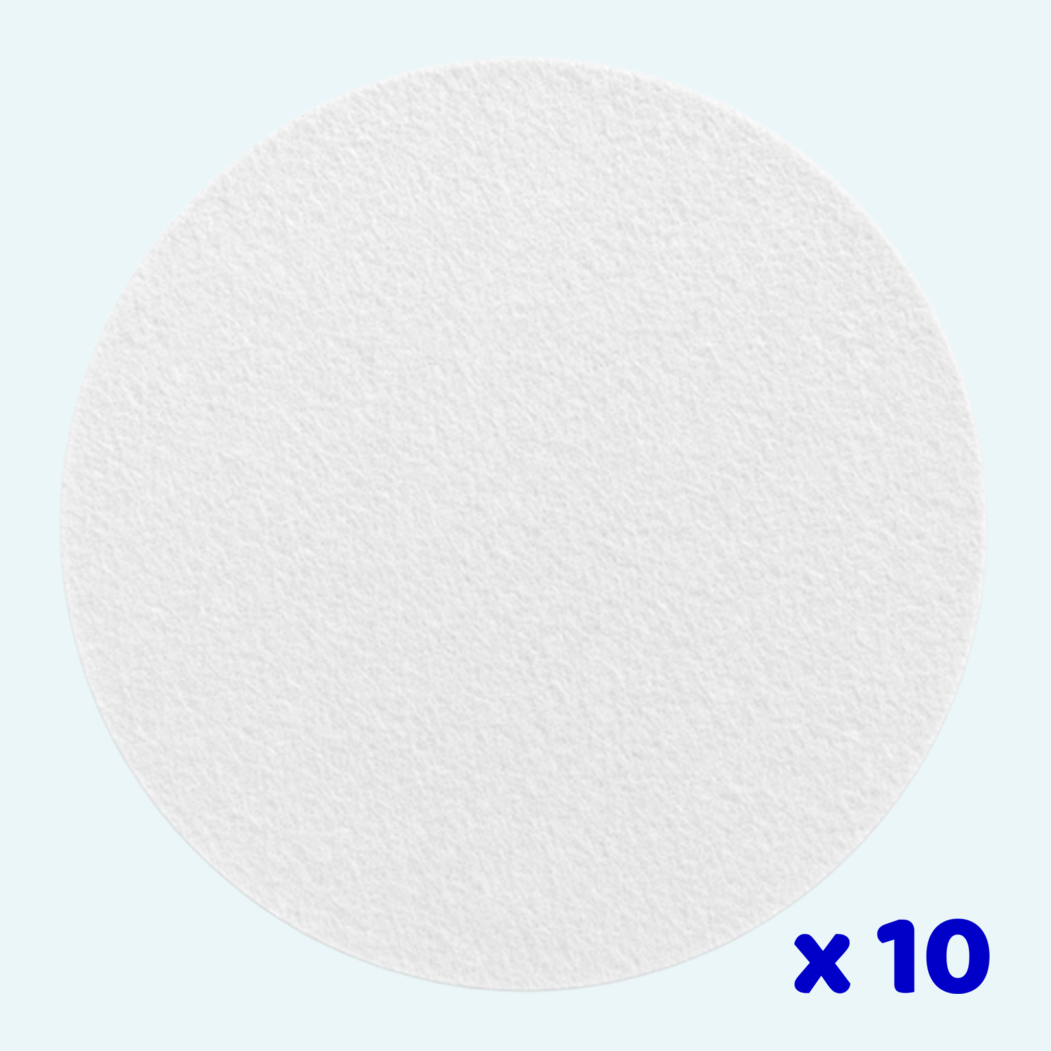

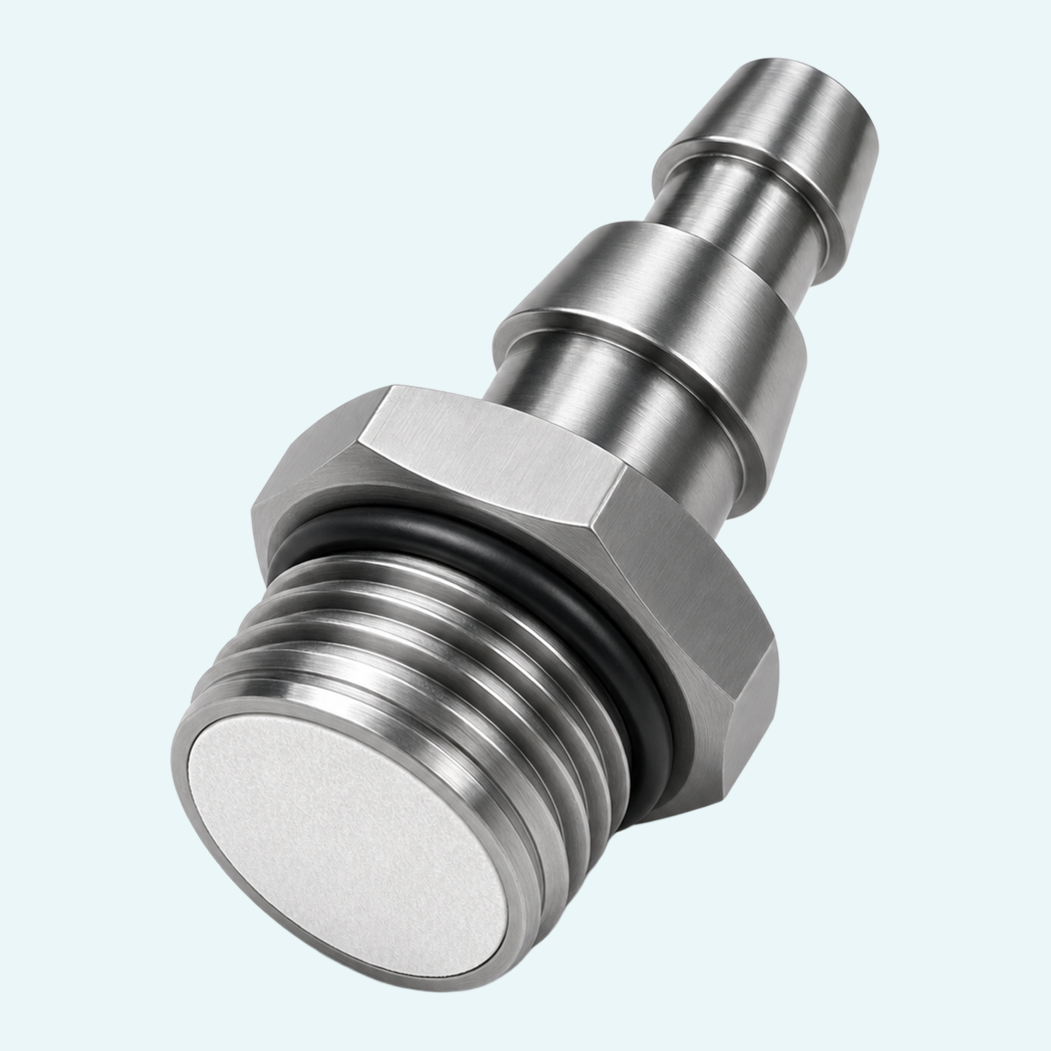

GDZ-29 includes a filter diaphragm with GDZ-32 and GDZ-33 Luer-Locks. The family also includes a porous PE plastic filter with male thread G 1/8 and self-adhesive filter membranes Ø 7 mm in packs of 10.
Adapter options connect Luer-Lock male or female interfaces to 6/4 tube.
Profile gaskets are available for manometer threads G ¼ and G ½.
| Dimensions |
7 mm
|
|---|
