One-hand soil and compost thermometer for core checks

ECO 122

One-hand soil and compost thermometer for soft soils, compost, agricultural windrows and bulk material, with Pt1000 sensor, -70.0 ... +250.0 °C range, Ø8 x 920 mm stainless-steel probe, IP54 and approx. 5000 h battery life.

Introduction

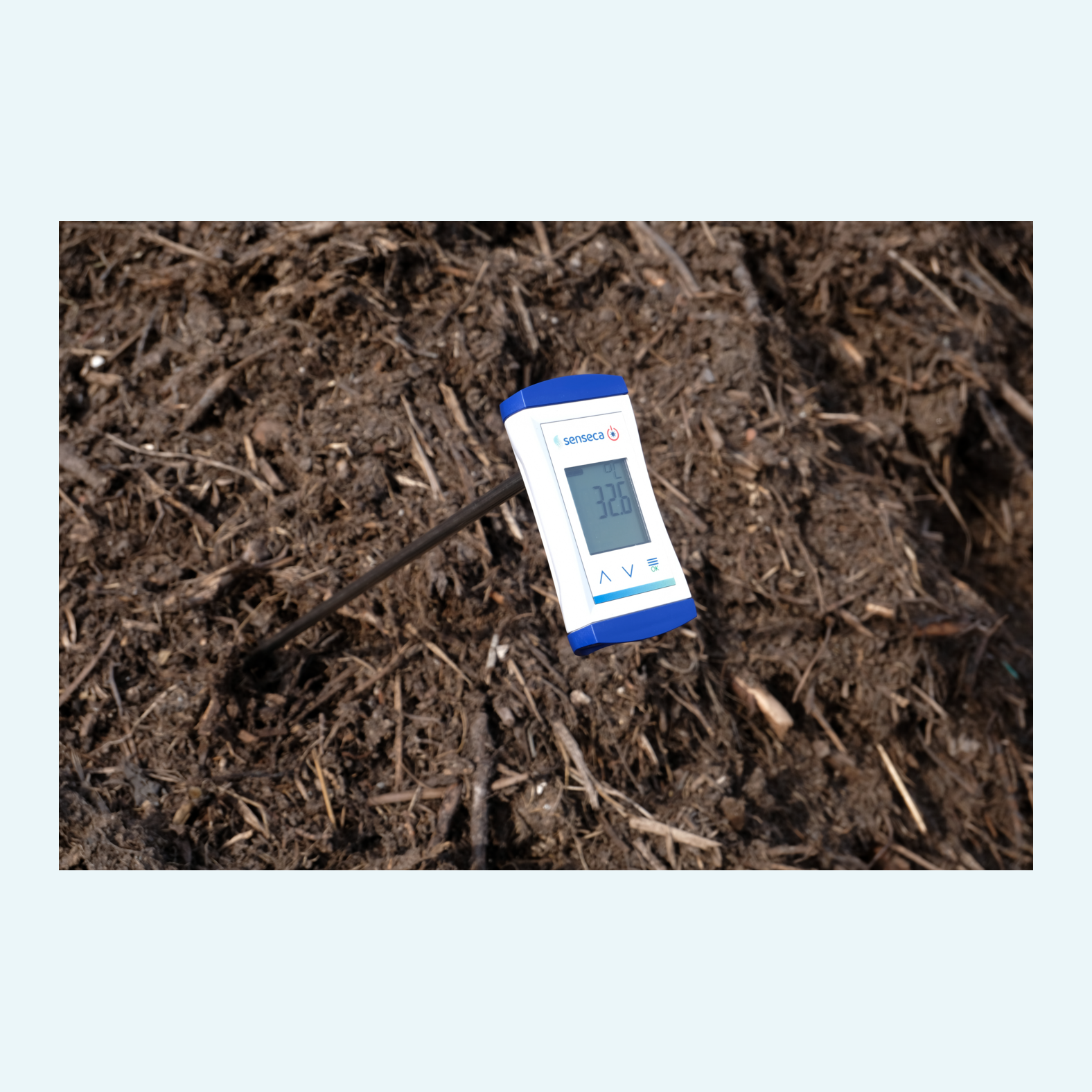

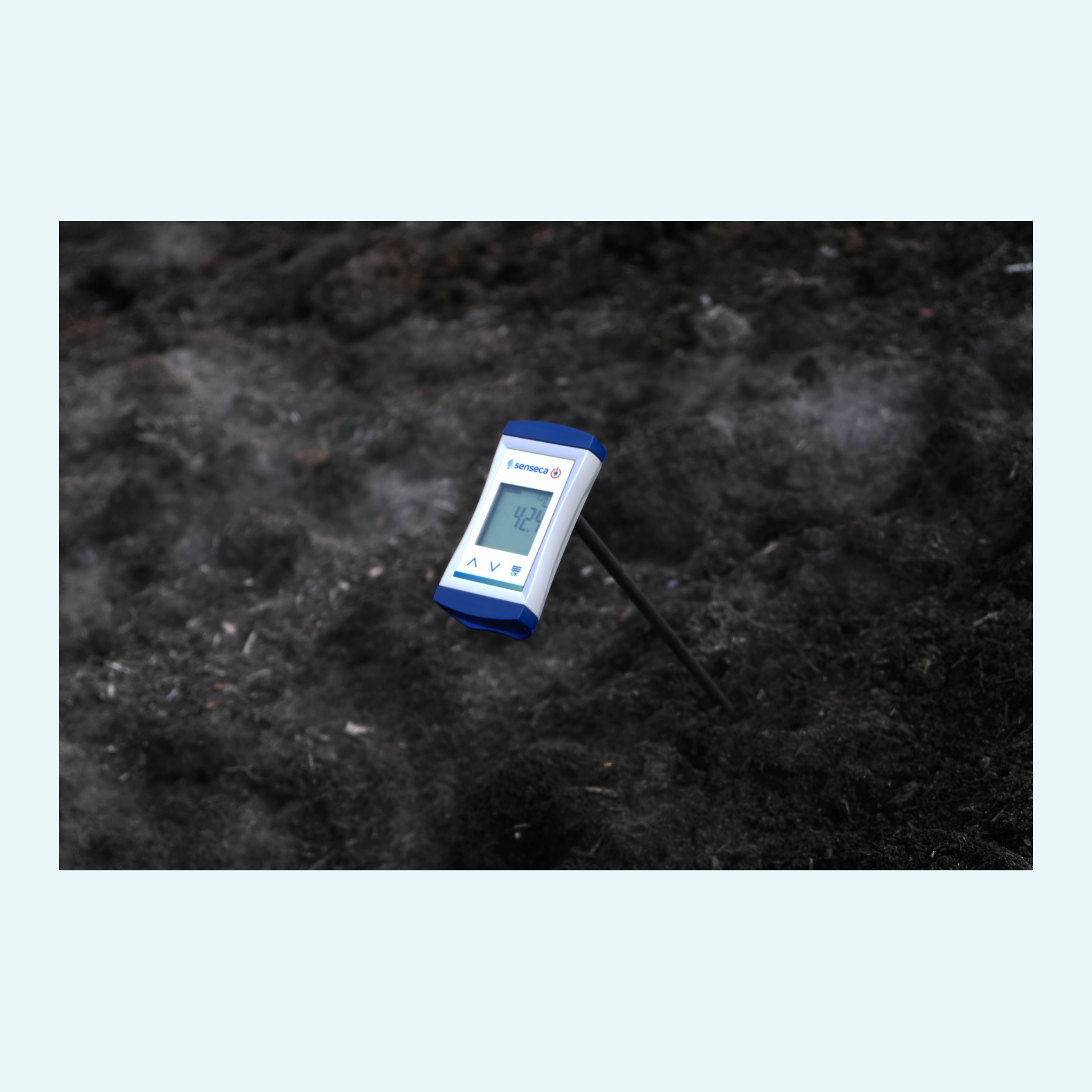

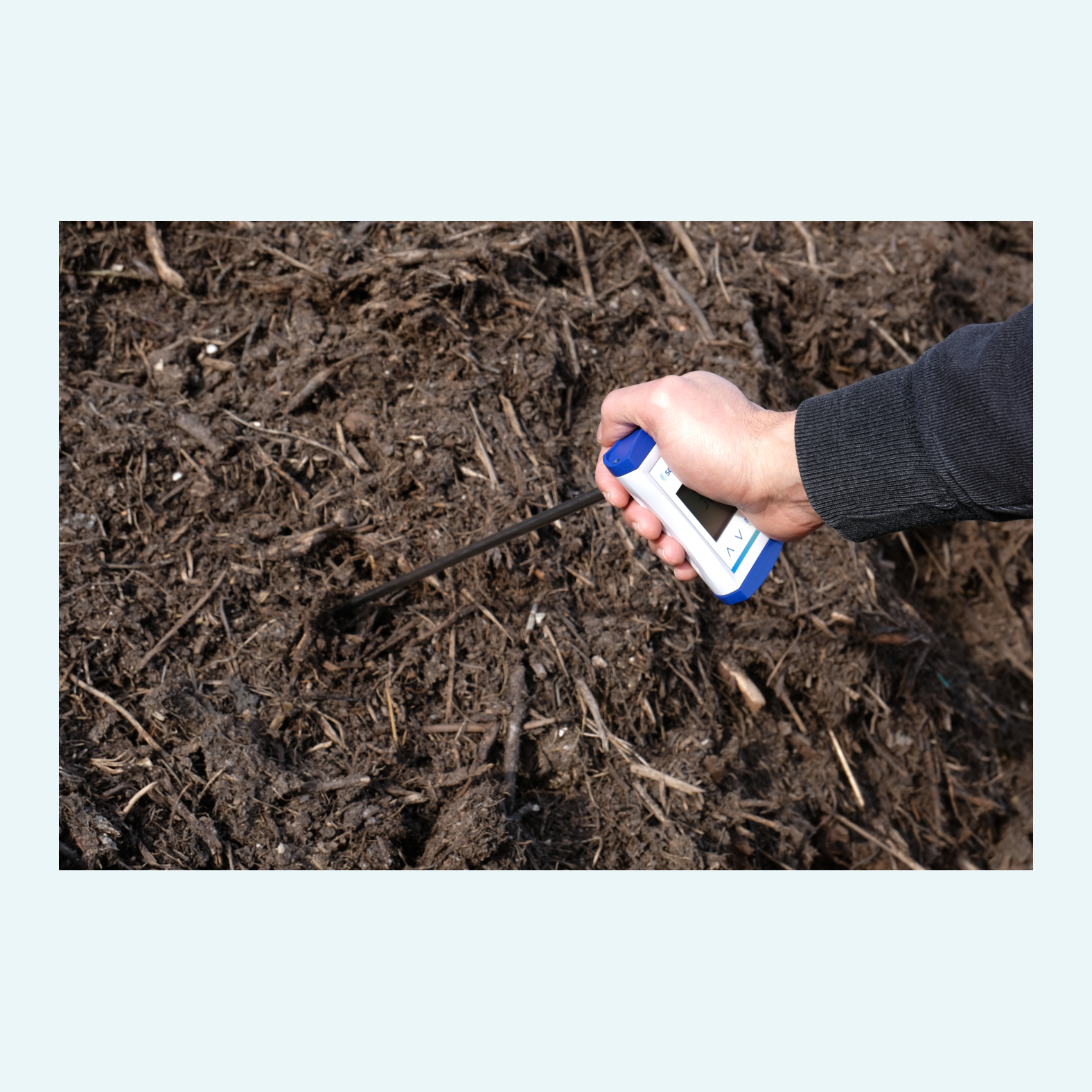

Core temperature checks in compost, soft soils and agricultural windrows are easier when the probe and display work as one practical field instrument. This one-hand insertion thermometer combines a compact handheld display with a long stainless-steel probe for direct measurements in bulk material and soft ground.

The Pt1000 sensor covers -70.0 ... +250.0 °C, with accuracy of ±0.1 K ±1 digit from -20 ... +100 °C. The Ø8 mm, 920 mm stainless-steel probe reaches deep into the material, while the optimized measuring tip balances fast response with robustness for demanding insertion tasks.

A 3-line backlit display, hold function, min/max memory and adjustable alarm help users read and track values on site. IP54 protection, impact-resistant ABS housing and approx. 5000 h typical battery life with 2 x AA alkaline batteries support regular use in agricultural and compost applications.

Deep insertion

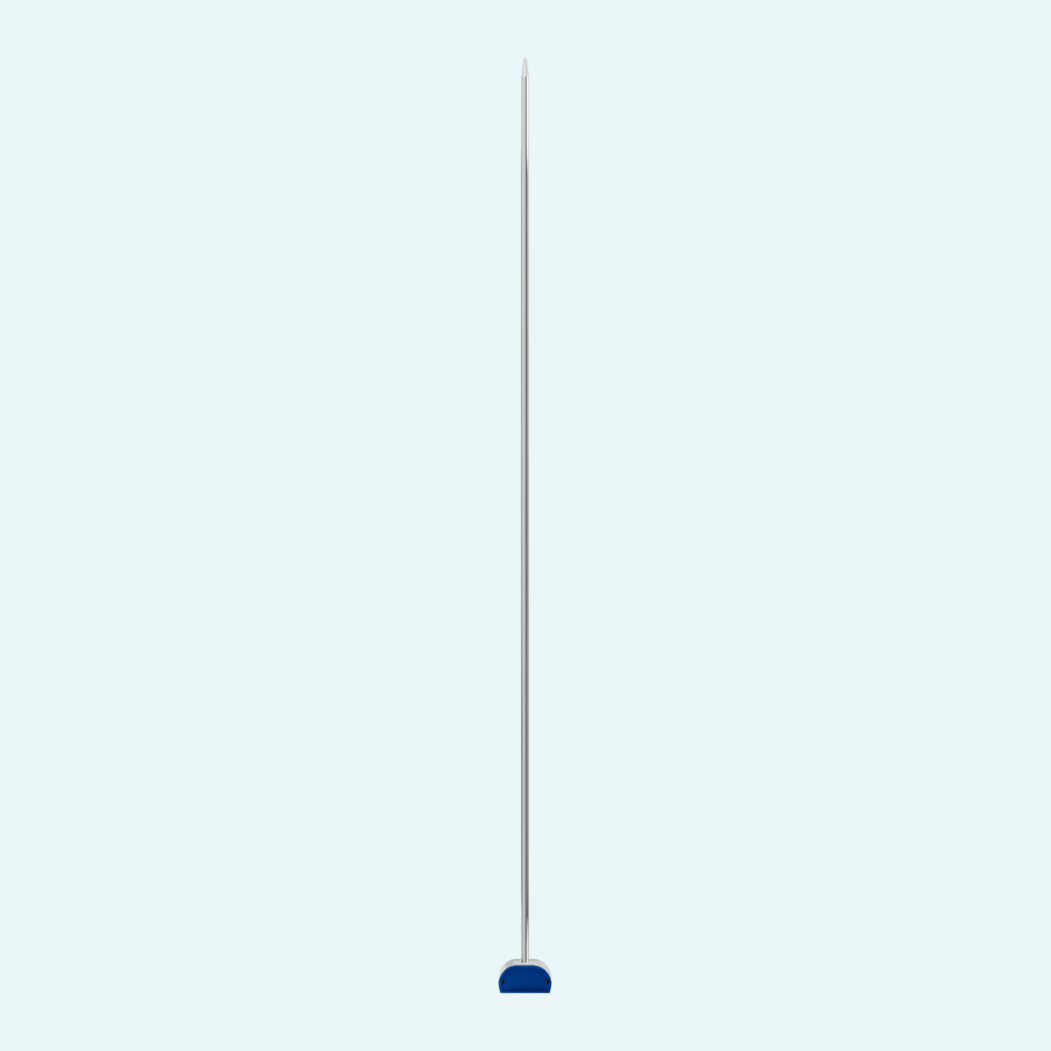

Ø8 x 920 mm stainless-steel probe reaches into compost, windrows and bulk material
Robust probe

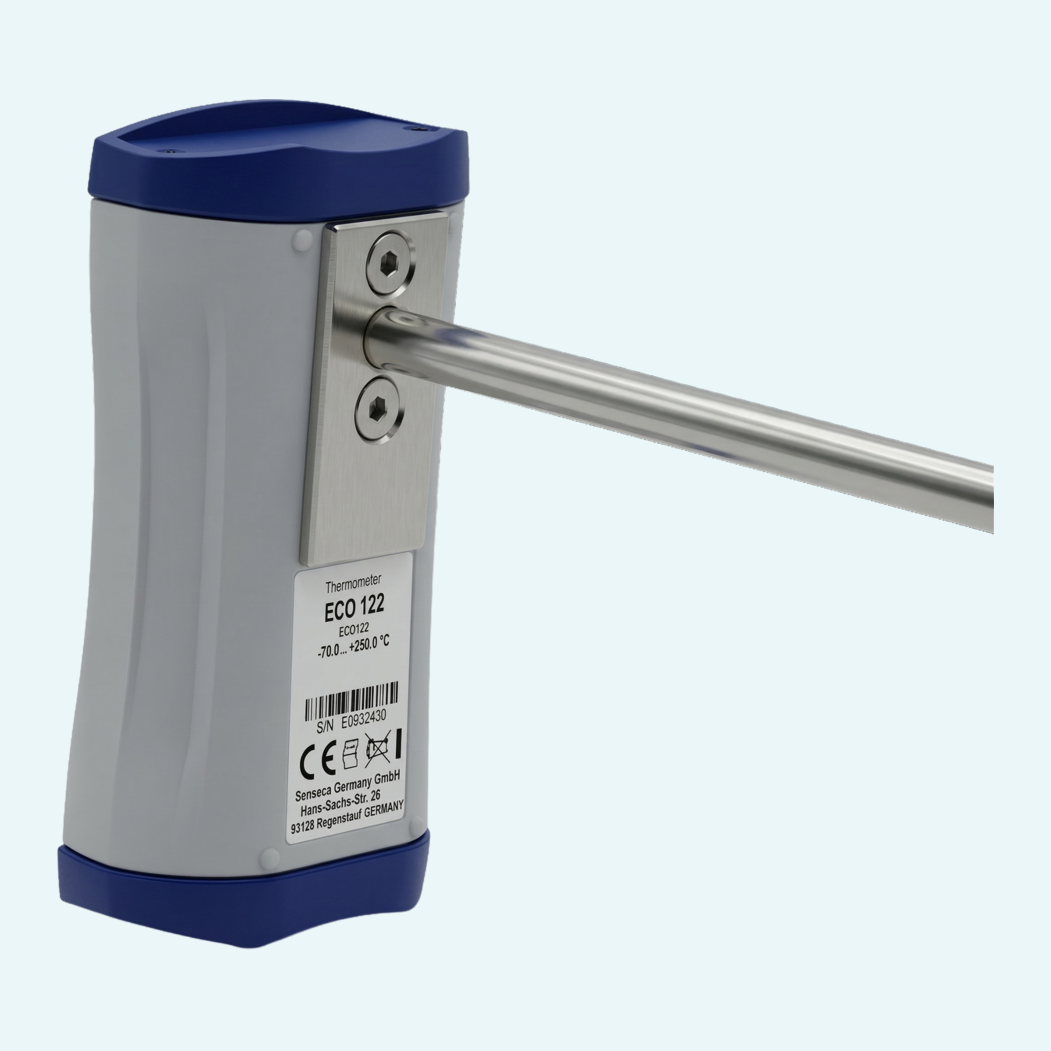

Welded stainless-steel connection supports tough measurement applications
Wide temperature span
Pt1000 sensor measures from -70.0 ... +250.0 °C
Readable on site

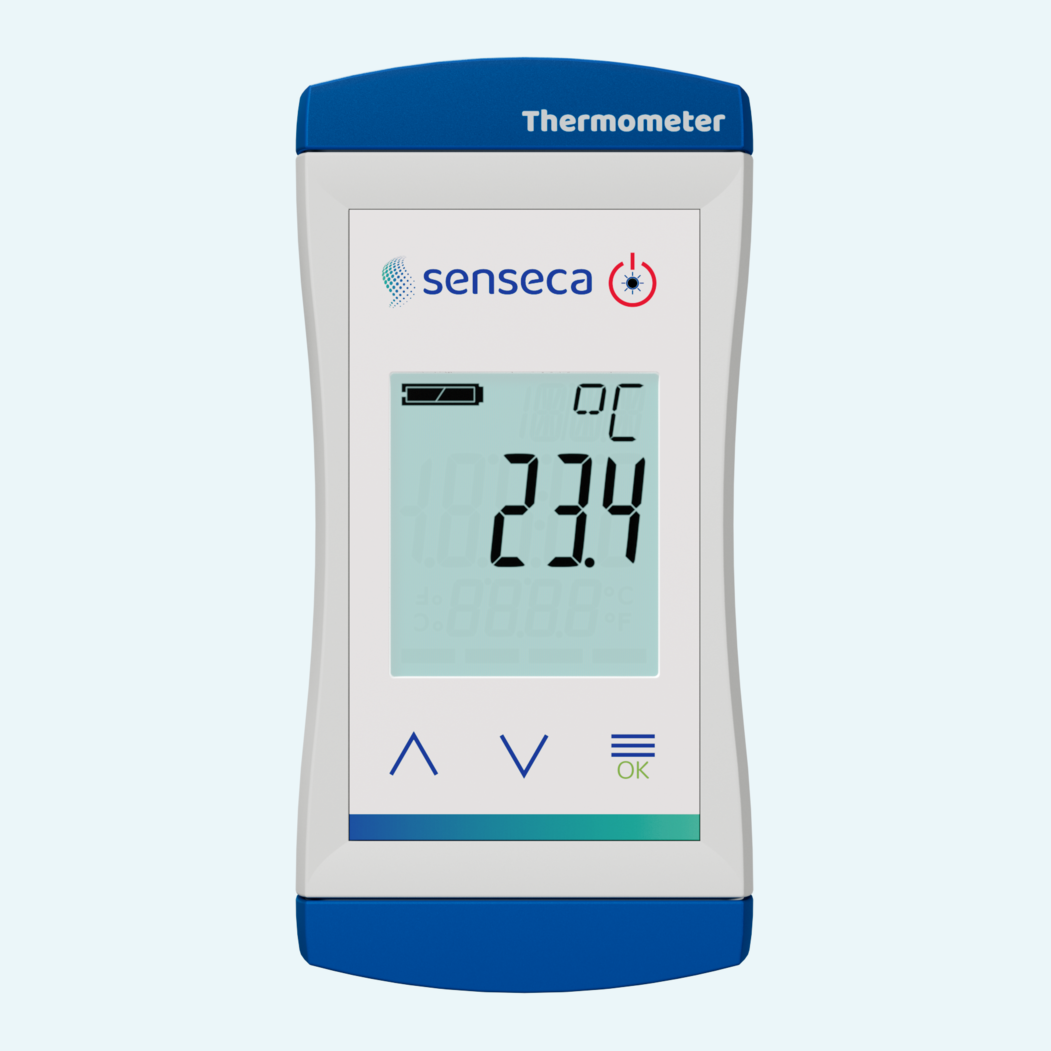

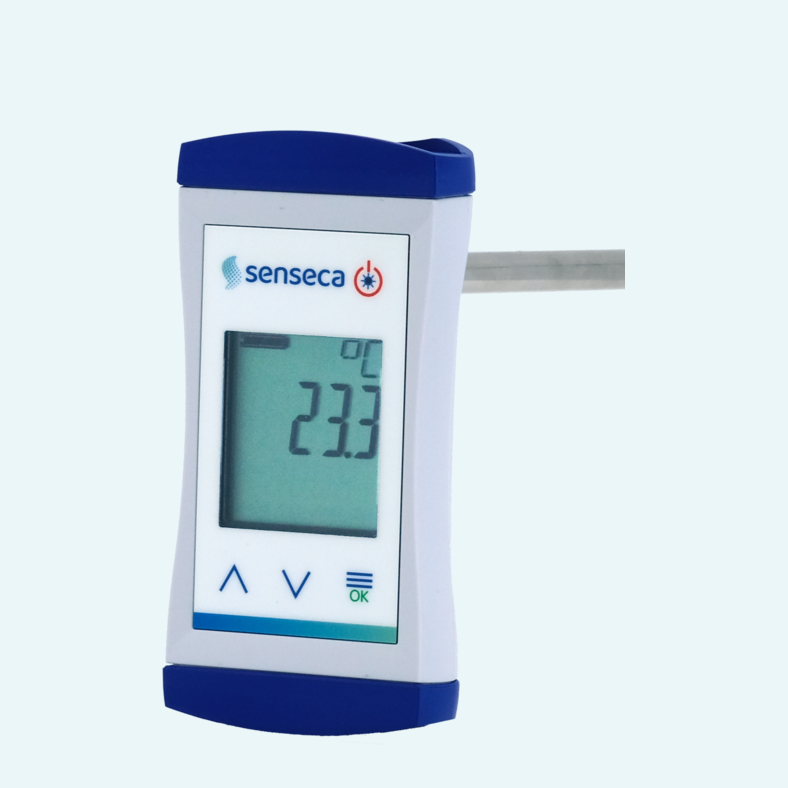

Backlit 3-line display with overhead view supports day and night use
IP54 protection
IP54 housing supports use in agricultural measurement tasks
Long battery life
Approx. 5000 h operation with 2 x AA batteries reduces battery changes

Features

One-hand design

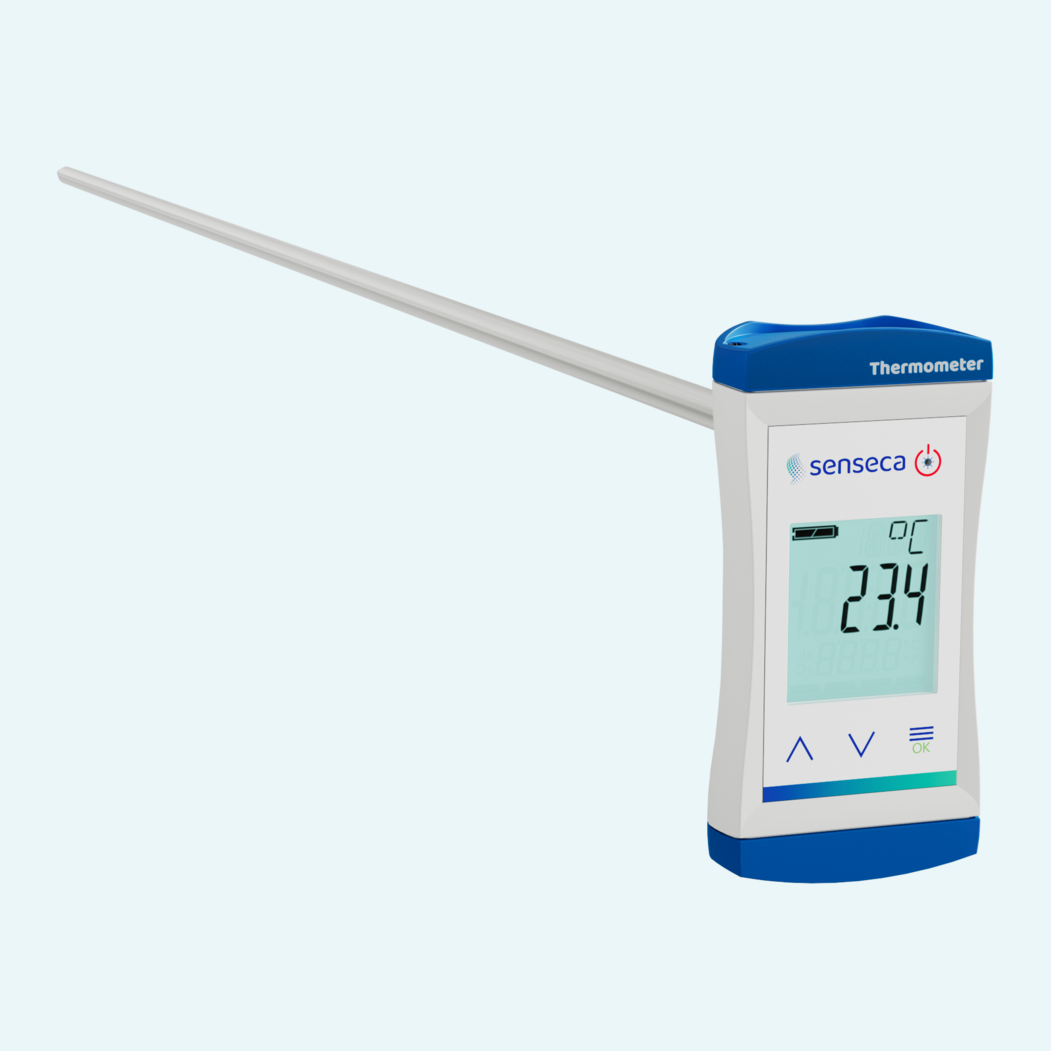

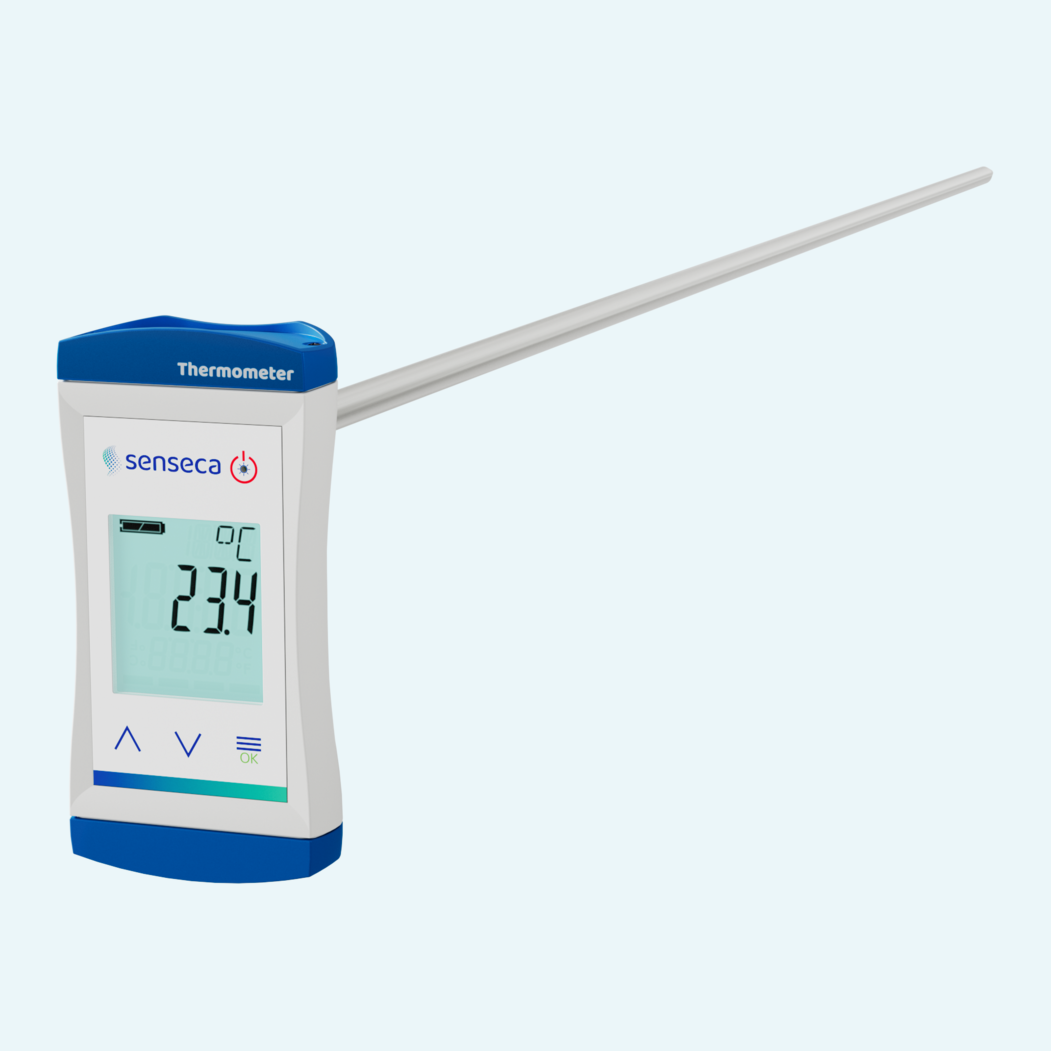

The instrument combines display and probe in one fixed unit for insertion measurements in soft soils, compost, agricultural windrows and bulk material.

Optimized probe tip

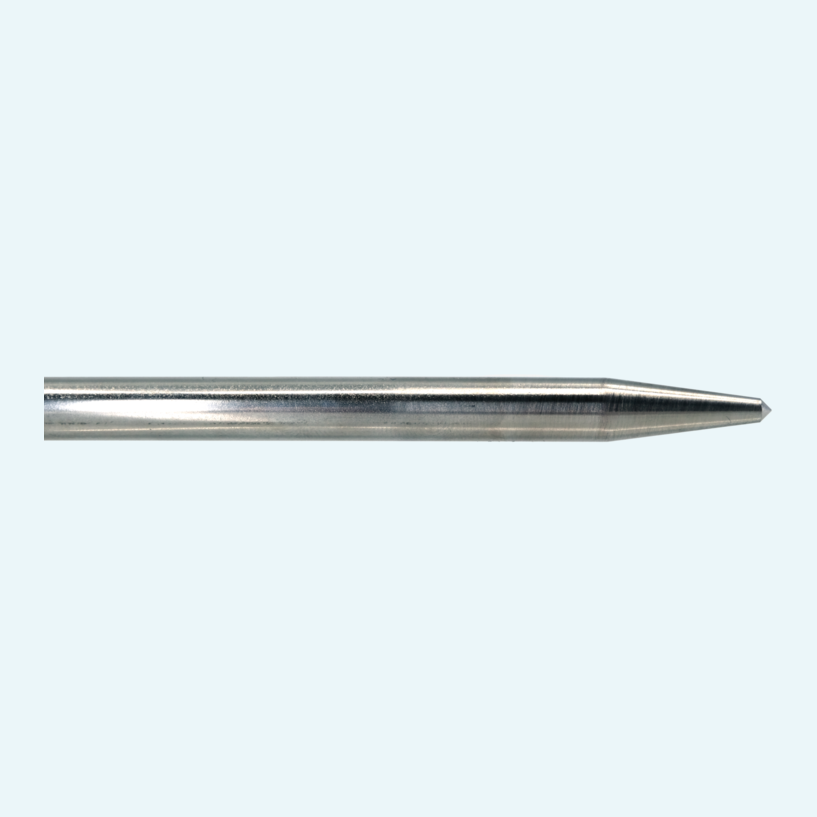

The measuring tip is designed as a compromise between measurement speed and mechanical robustness.

Alarm function

The device includes an adjustable alarm function with optical and acoustic signaling.

Measured value functions

Hold freezes the displayed value during operation. Min/max memory records the minimum and maximum measured values.

Input adjustment

Offset and gradient correction can be used to adjust the temperature input within the device configuration.

Power management

Configurable automatic switch-off and configurable LCD backlight support energy-saving operation.
