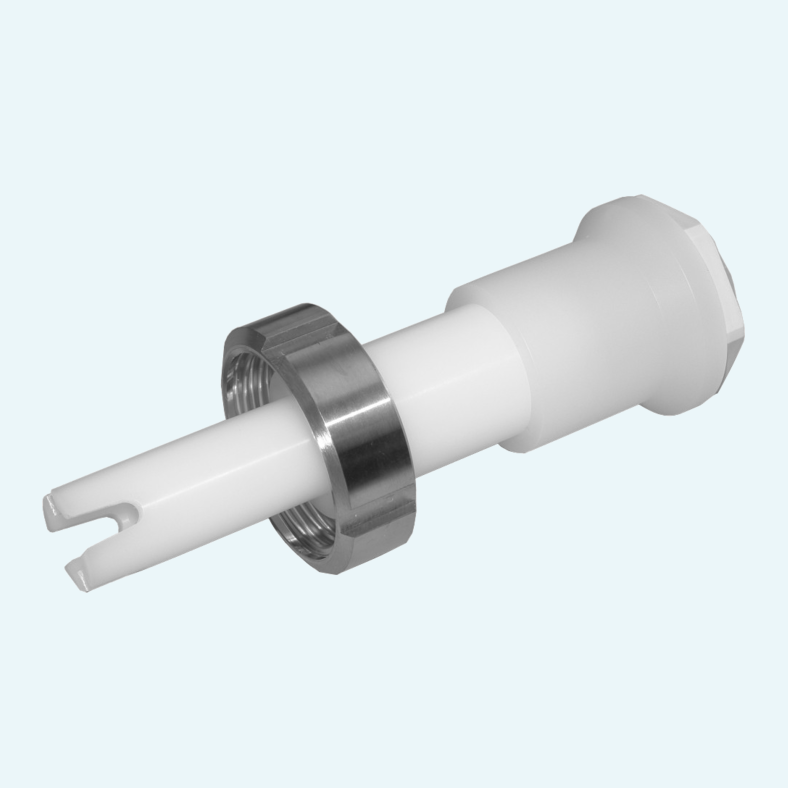

Food and chemical processes need measurement points that protect the sensor and support clean, consistent installation. This hygienic in-line fitting is designed for electrochemical cells such as pH, ORP and conductivity cells with PG13.5 process connection.
The PVDF process material is FDA compliant, making the fitting suitable for its stated application fields in food and chemical technology. A milk pipe process connection acc. to DIN 11887 supports integration into hygienic pipework, while the stainless steel 1.4301 cap nut provides a defined mechanical closure.
The fitting protects the installed sensor and supports proper measurement. With an operating temperature of -10..+120 °C, steam sterilization at 140 °C for less than 1 h and maximum process pressure of 16 bar, it gives plant operators a compact solution for demanding inline measuring points.
