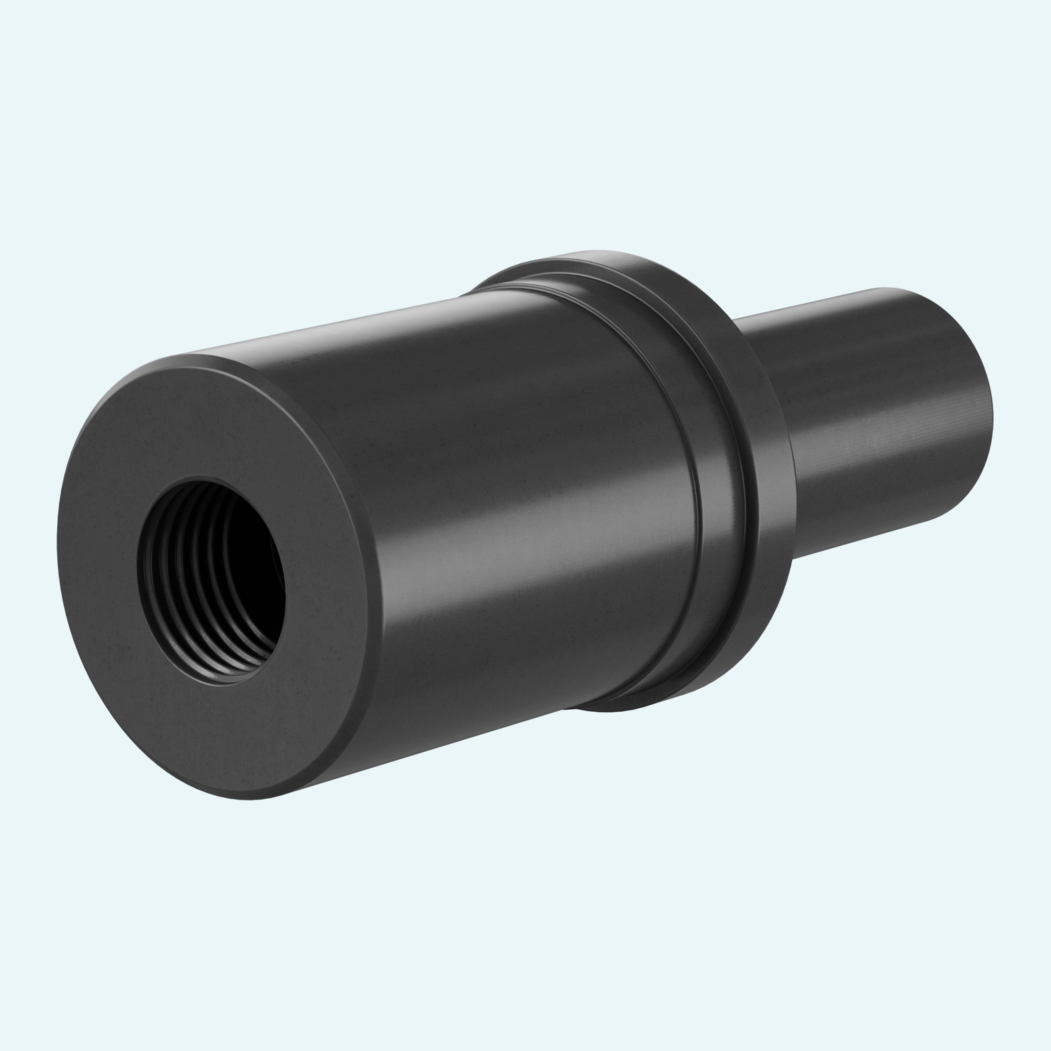

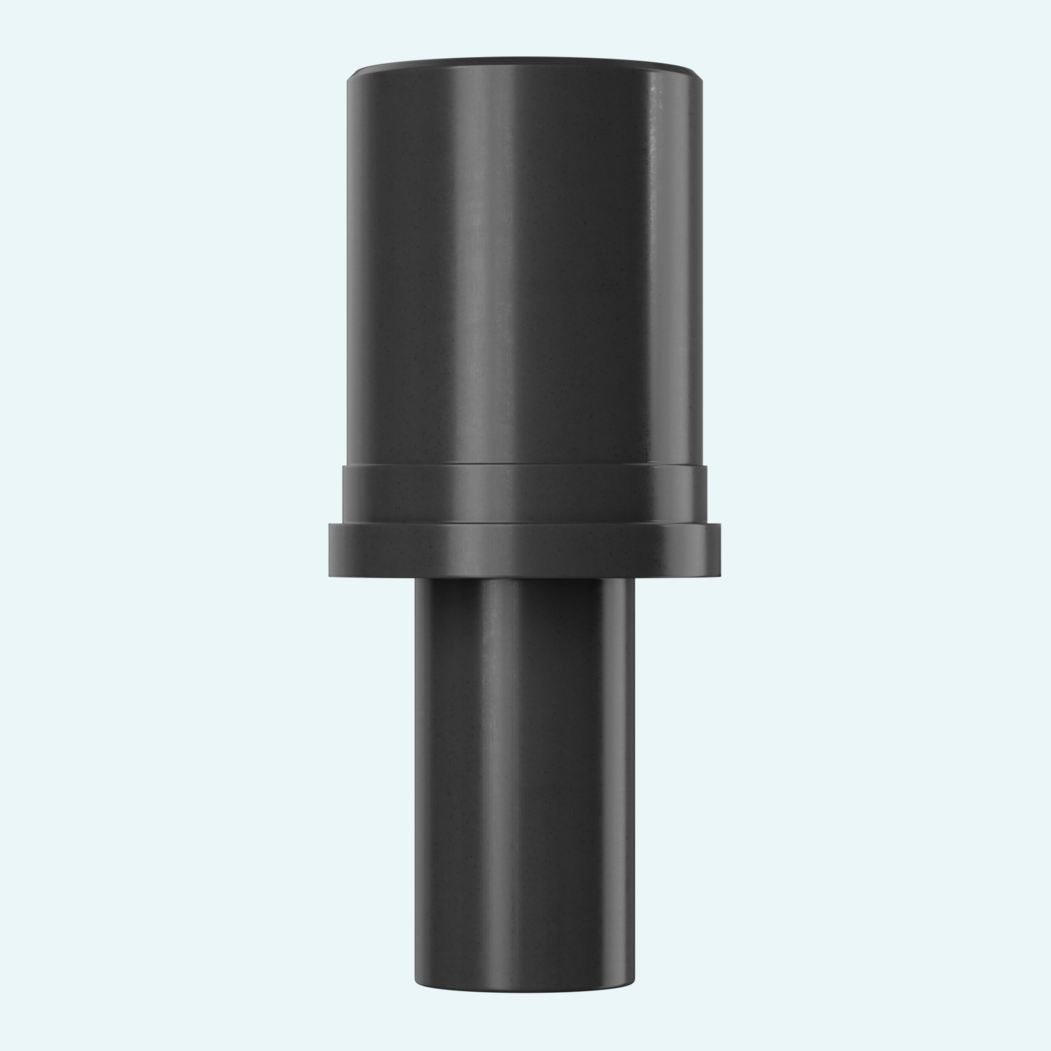

Reliable pH and ORP measurement starts with the way the sensor is installed. This installation fitting holds single-rod pH and ORP electrodes with PG13.5 screw thread and 120 mm installation length, helping position them correctly inside the DFA32 flow fitting.

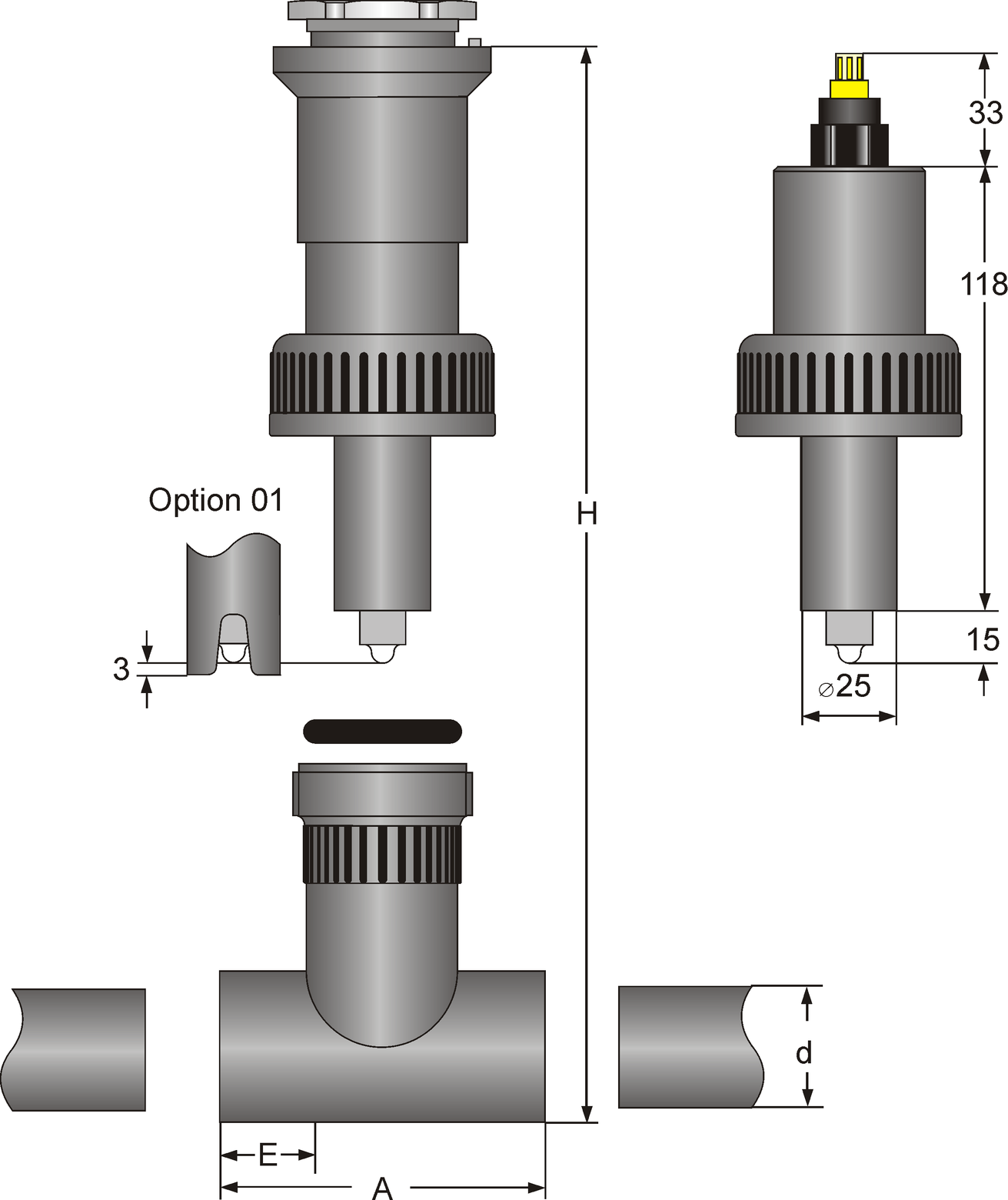

The DFA32 can be mounted directly in the delivery line, creating a protected measuring point for applications such as drinking water treatment and swimming pool technology. Correct flow against the sensor helps avoid measuring errors, while the fitting protects the installed sensor against breakage.
PVC-U construction according to DIN 8061 and 8062 supports use in compatible water treatment pipework. With an operating temperature of 0..60 °C and pressure resistance up to max. 16 bar at 22 °C, the fitting gives plant operators a practical, clearly defined solution for inline electrochemical measurement.
