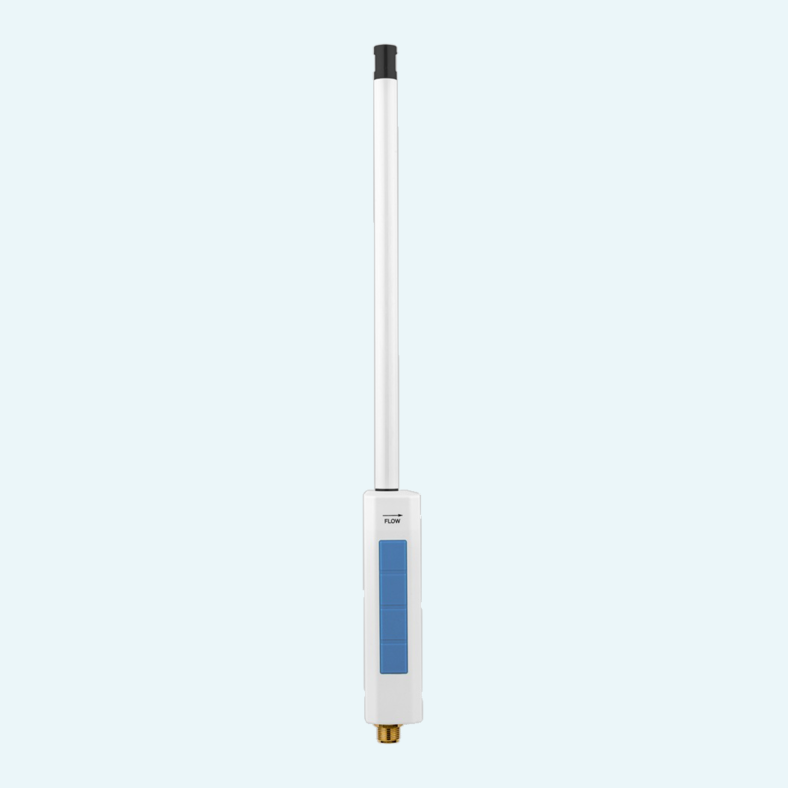

Reliable air velocity checks in ducts and exhaust systems depend on a probe that reacts quickly and fits into tight access points. This directional hot film anemometer measures airflow from 0.40 ... 20.00 m/s, with a Ø12 mm probe tube for small measuring openings and a sensor design that makes the measuring direction easy to recognize.
For field work with Senseca PRO Line meters, it combines low power consumption with a fast T90 response time of ≤1.5 s. The integrated temperature channel supports measurements from 0.00 ... +50.00 °C, while temperature compensation over 0 ... +50 °C helps keep readings consistent across typical ventilation environments.
Commissioning is straightforward: the probe is factory-calibrated, calibration data is stored in the probe, and the DX-Sensor interface with 5-pole M12 connection allows interchangeability without recalibration. Optional ISO 9001 factory calibration or EN ISO/IEC 17025 ACCREDIA calibration certificates support documented measurement tasks.
The probe uses a directional hot film anemometer sensor for air velocity measurement in exhaust systems and ventilation ducts.
The sensor records temperature from 0.00 ... +50.00 °C with 0.01°C resolution alongside air velocity.

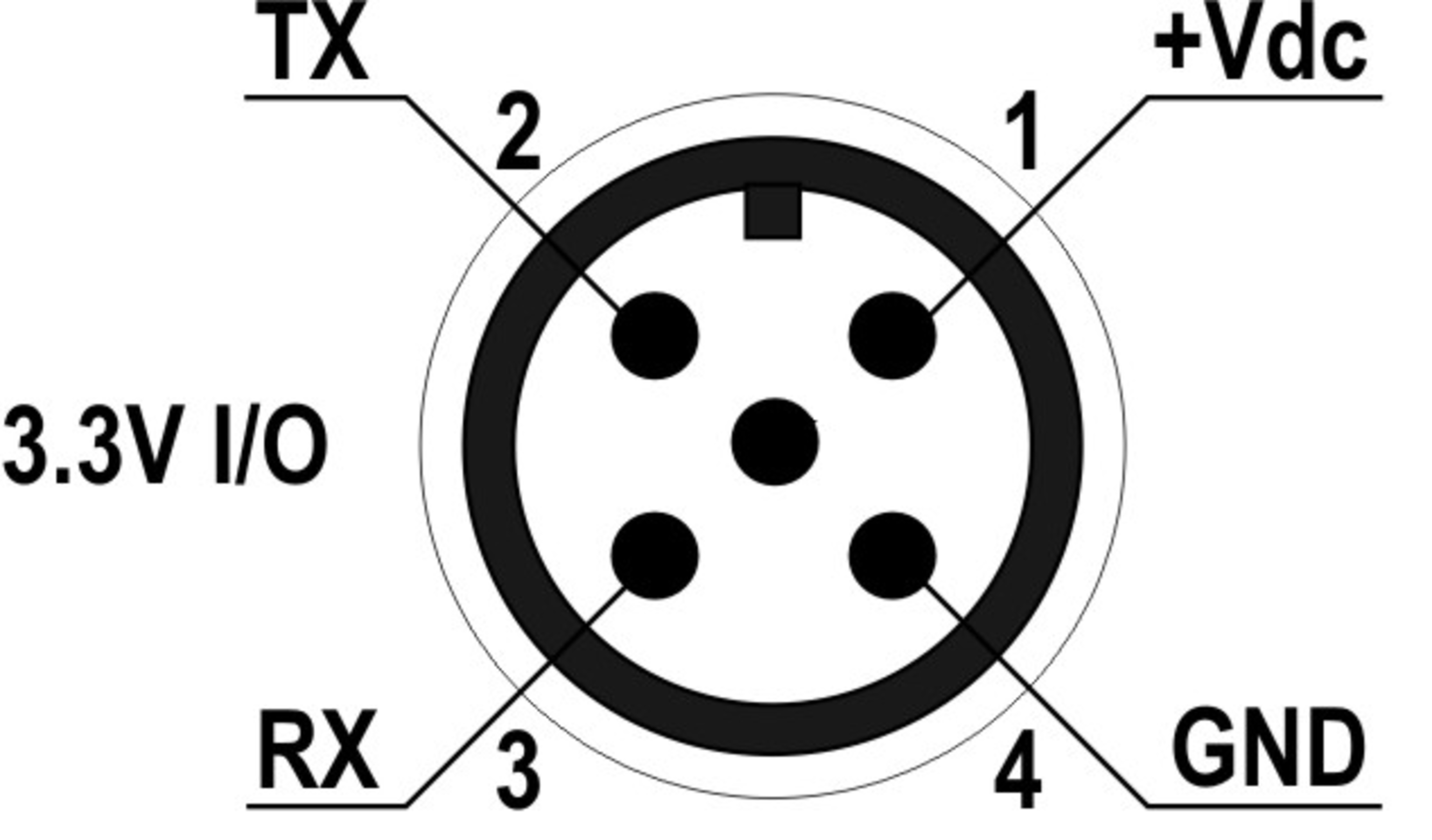

A 5-pole M12 DX-Sensor standard connection links the probe to compatible PRO D01/D05/925/595 handheld meters.
The probe is supplied factory-calibrated and can be supplied with ISO 9001 factory calibration or EN ISO/IEC 17025 ACCREDIA calibration.
The probe is designed for PRO D01/D05/925/595 handheld measuring devices and can be combined with other DX sensors.
| Air speed range |
0.4...20 m/s
|
|---|---|
| Resolution |
0.01 m/s
|
| Temperature range |
0...50 °C
|
| Resolution temperature |
0.01 °C
|
| Measurement rate |
1 /s
|
| Accuracy temperature |
±1 °C
|
| Accuracy |
±0.2 m/s
|
| Sensor protection |
IP40
|
| Operating temperature |
0...50 °C
|
|---|---|
| Storage temperature |
-20...+60 °C
|
| Weight |
130 g
|
|---|
| Power consumption |
typ. 25 mA @ 0 m/s, typ. 45 mA @ 20 m/s
|
|---|
| Connection |
5-pole M12
|
|---|---|
| Cable |
1 m PVC / 0 m (depending on article)
|

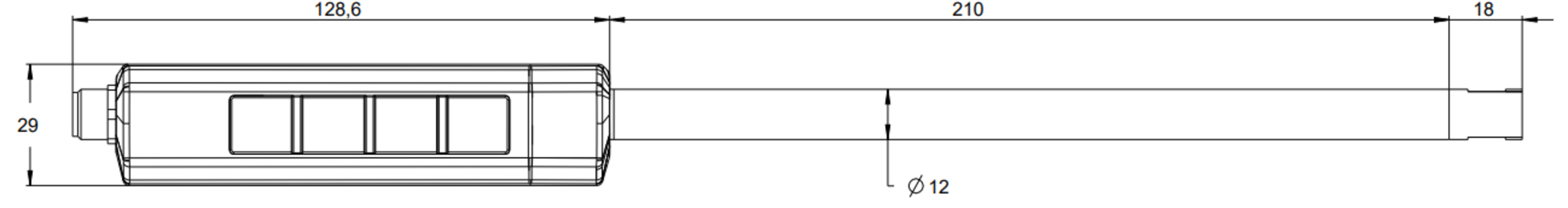

| Probe Diameter |
12 mm
|
| Probe length |
228 m
|
| Type |
Directional probe
|
| Material |
PC
|
| Handle |
ABS, TPU
|
