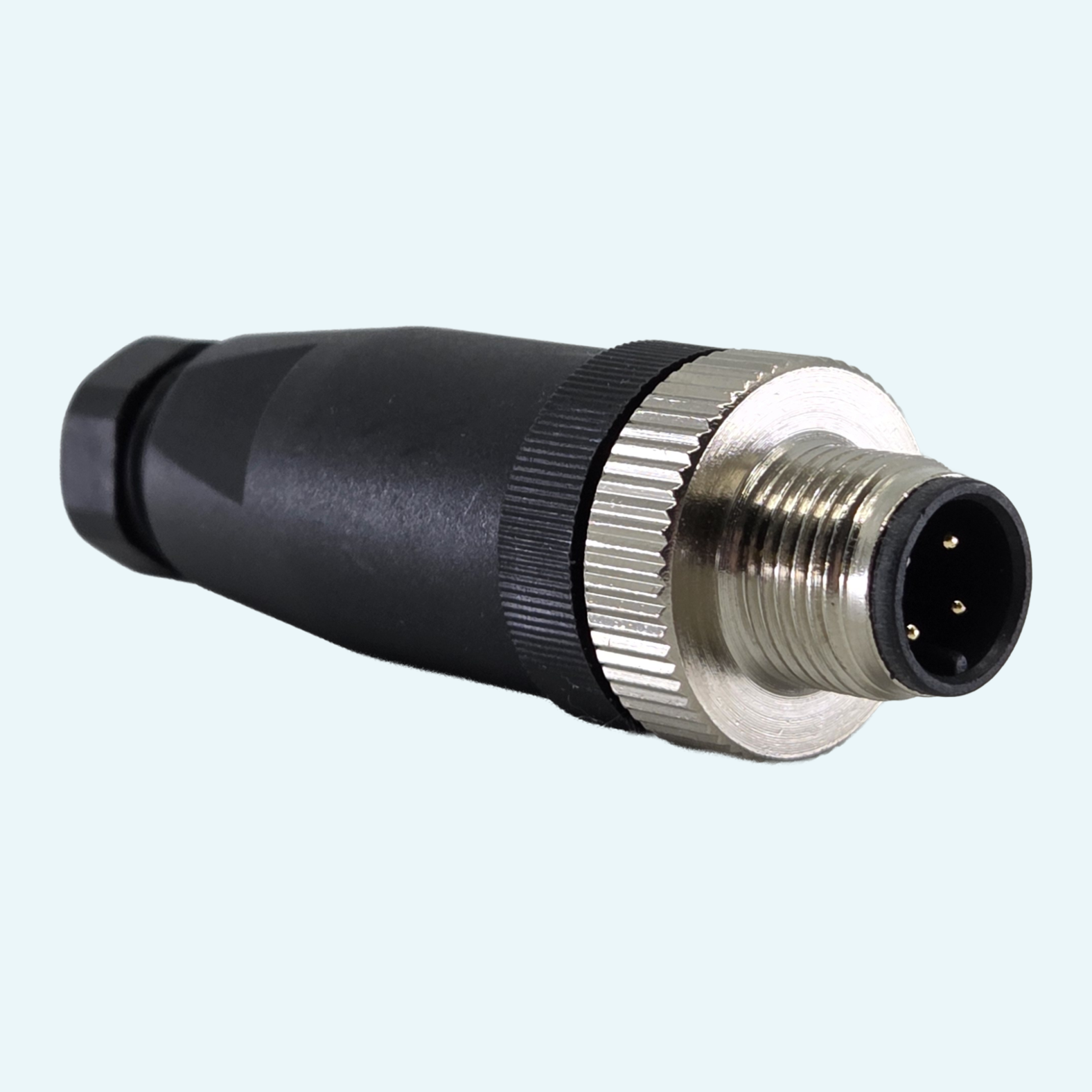

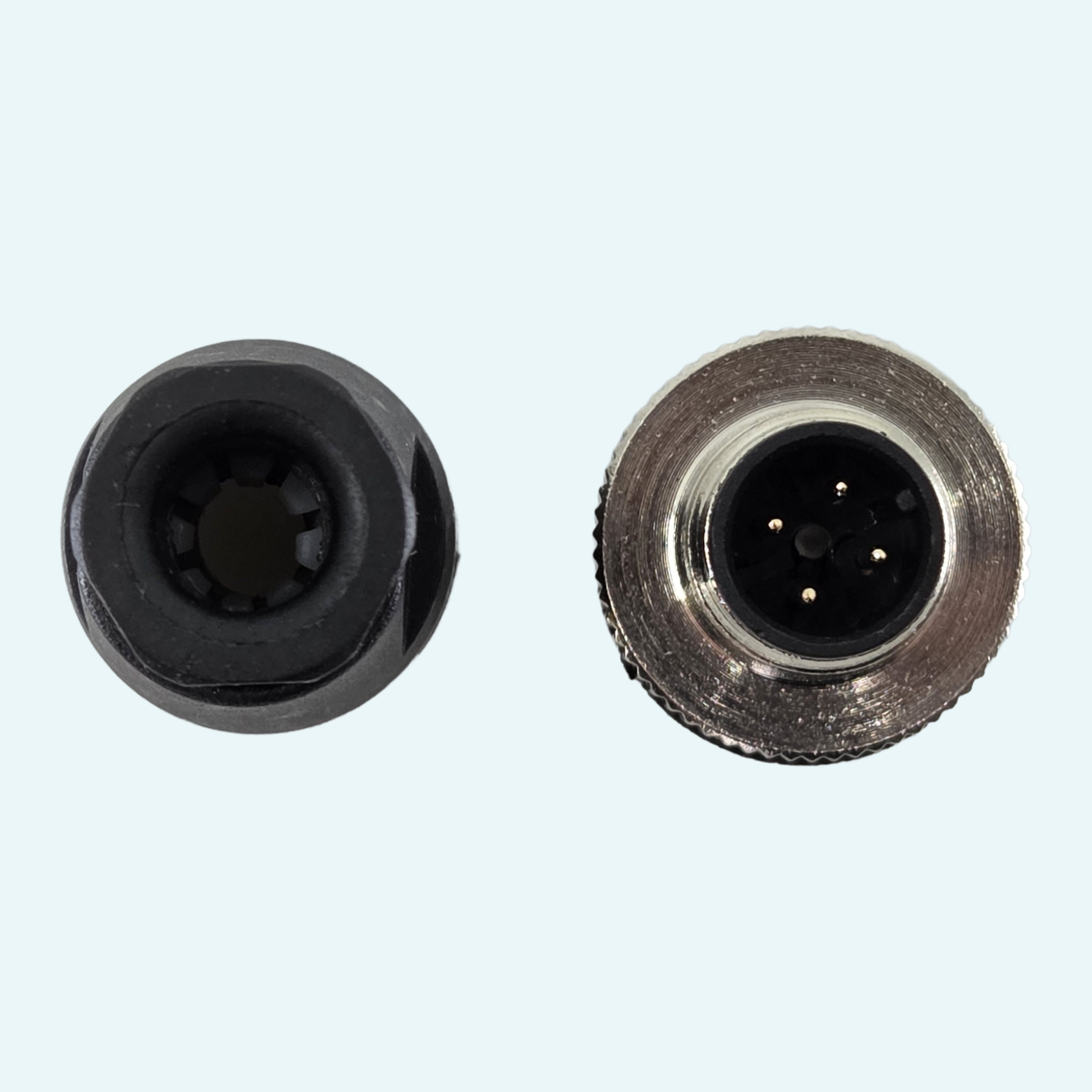

Field-attachable M12A connector, 4-pin

CONN-M12

Field-attachable M12A connector for 4-pin connection tasks, with screw terminals for direct cable assembly during installation.
View all variants Product Inquiry

Introduction

This field-attachable connector provides a practical M12A interface for 4-pin connection tasks where the cable is assembled directly on site.

The screw-terminals support straightforward conductor termination without a pre-moulded cable assembly. For measurement and connection points that require an M12A plug, it offers a focused solution with a clear configuration: 4 poles, field-attachable design and screw terminals.

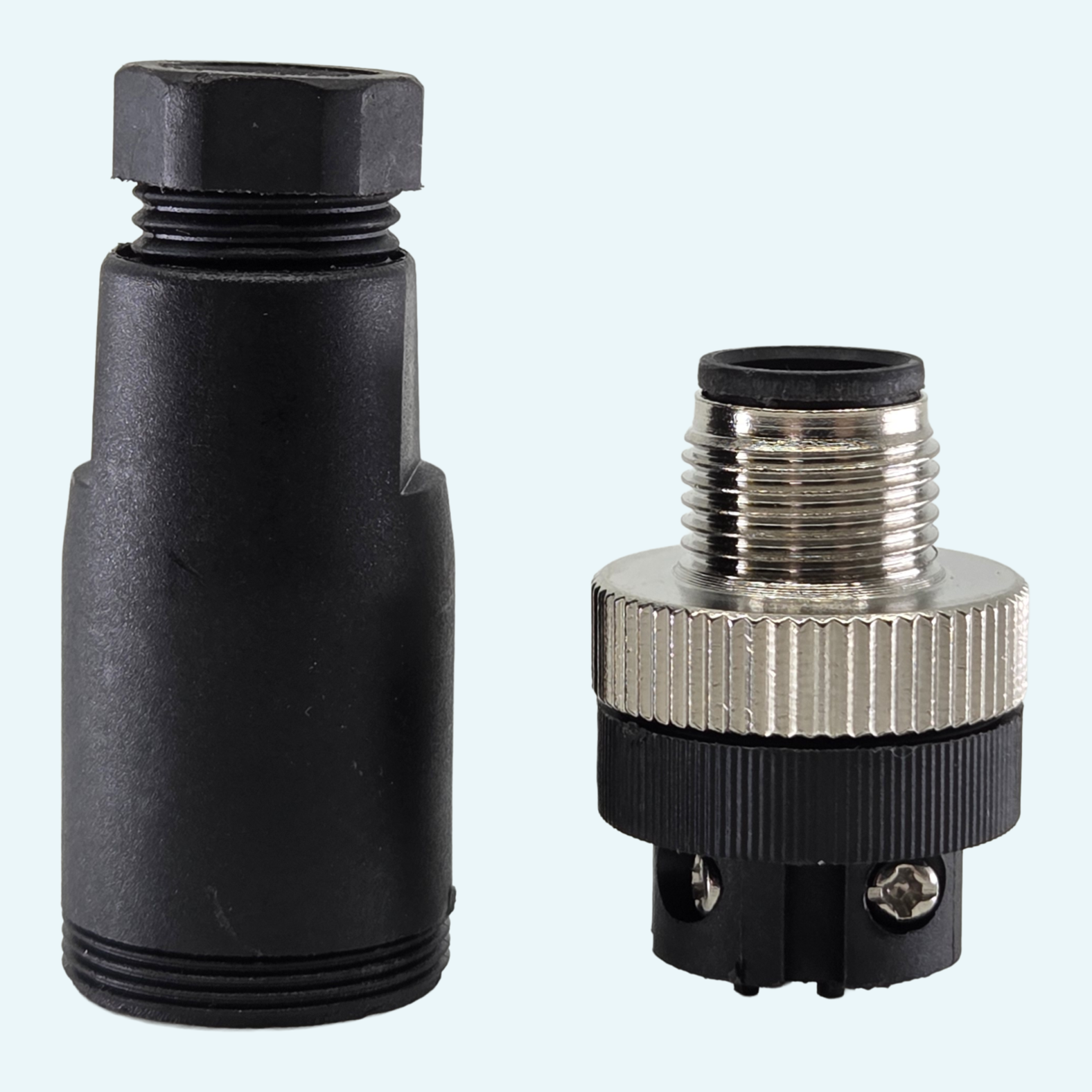

On-site assembly
Field-attachable design supports cable termination during installation.

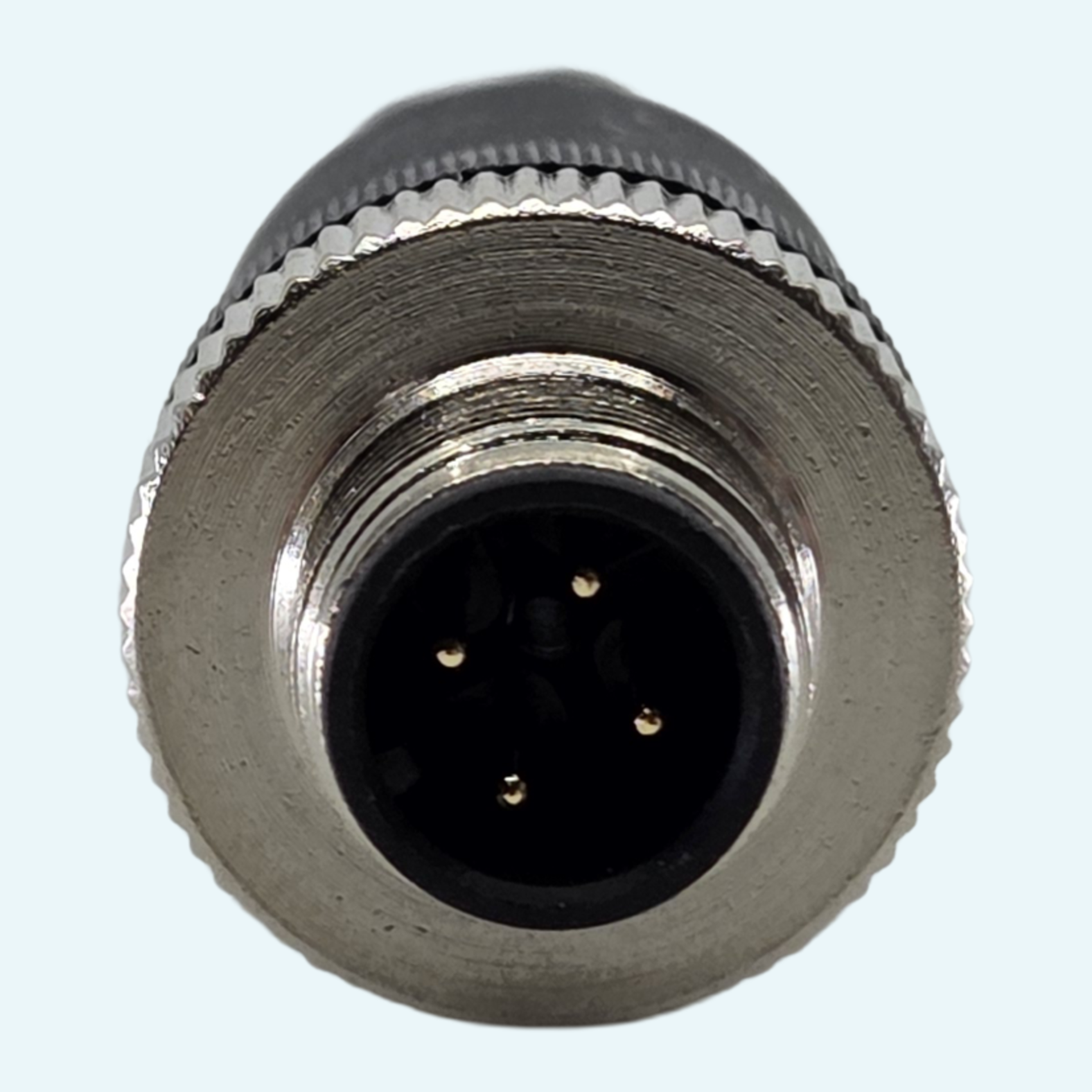

4-pin interface
M12A plug with 4 poles for defined connection tasks.

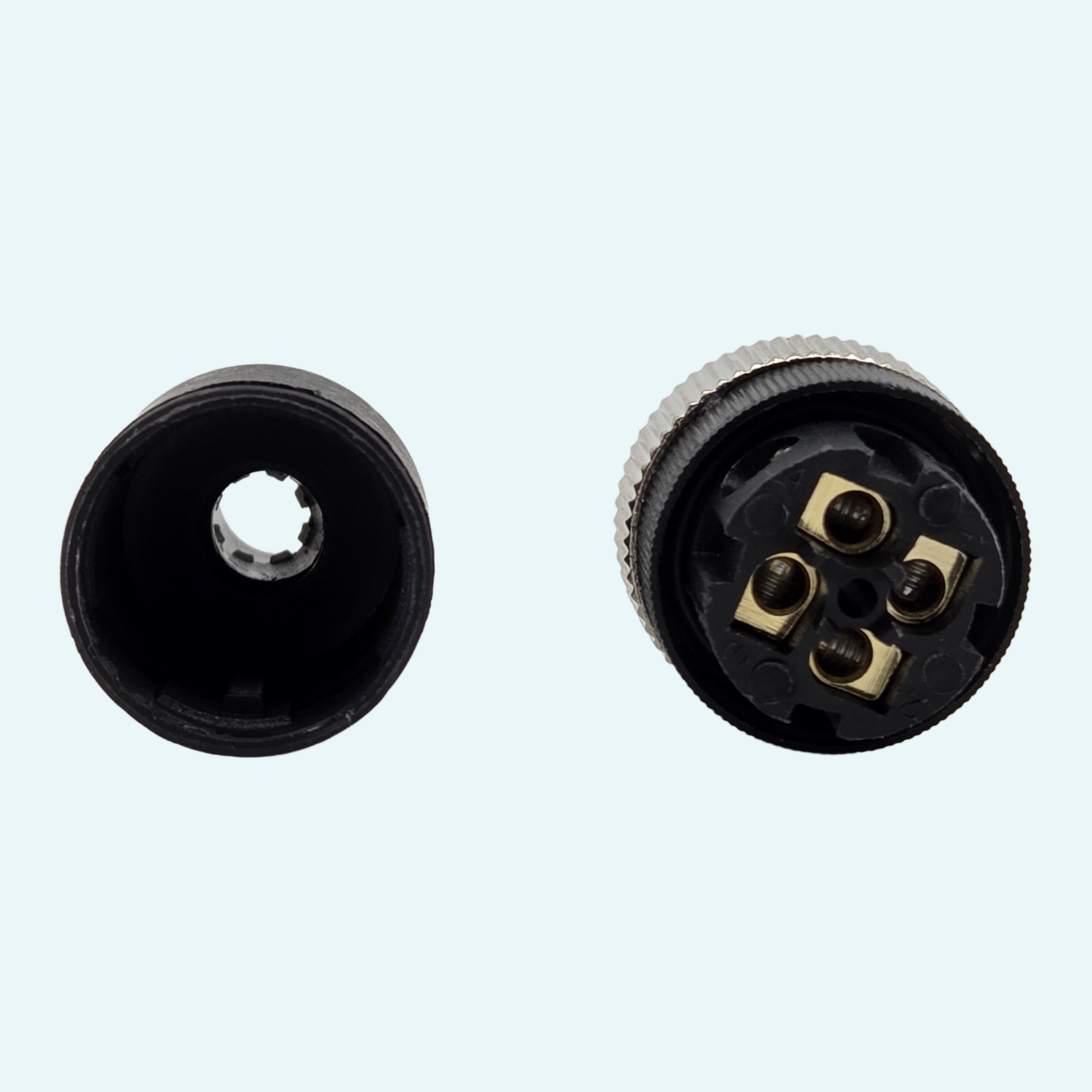

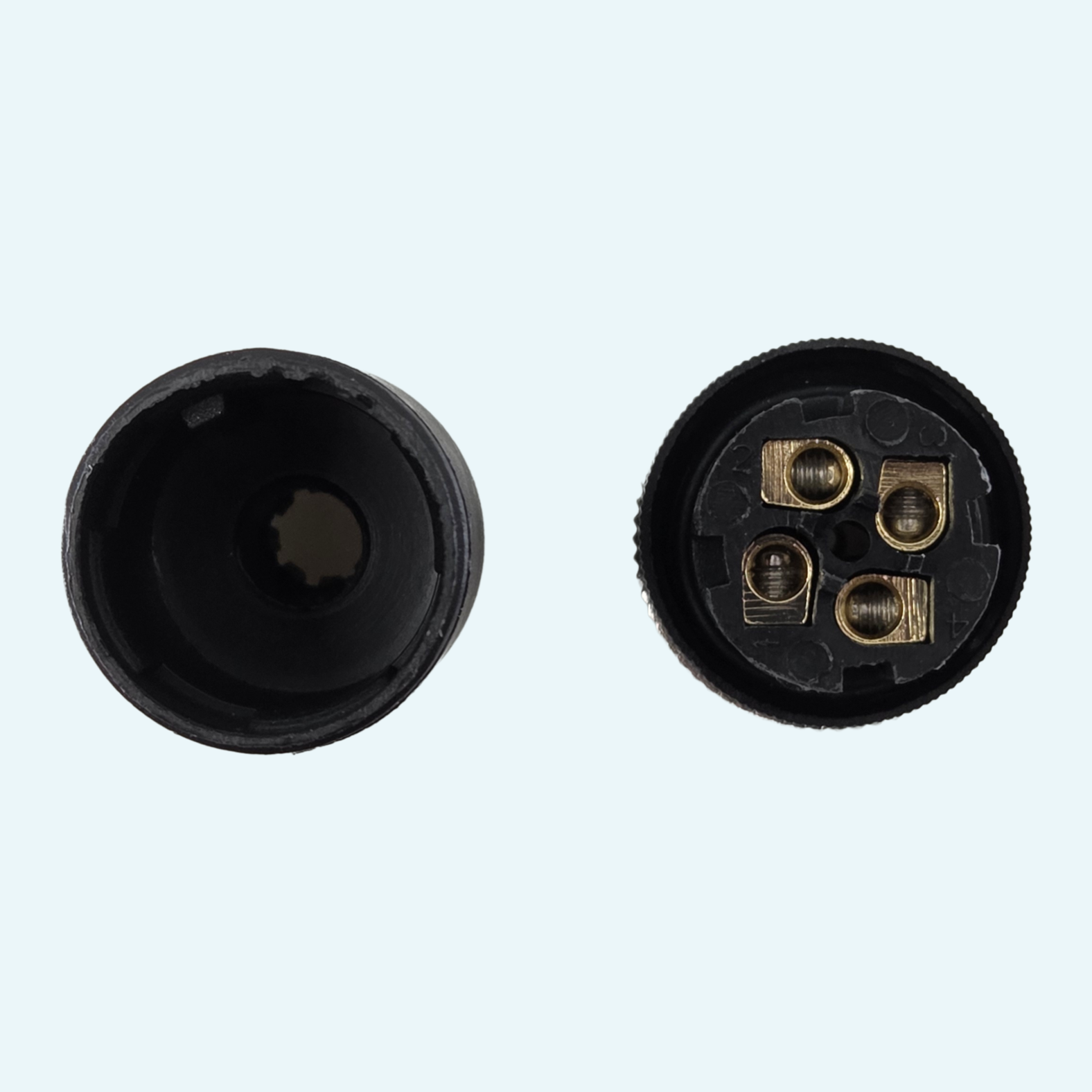

Screw terminals
The wires are connected using screw terminals.

Features

Field-attachable design

The connector is assembled directly to the cable instead of being supplied as a fixed pre-moulded cable assembly.

M12A connector

The plug uses an M12A configuration for connection points that require this connector type.

Screw terminals

Screw-terminals provide the termination method for the conductors.

4-pole configuration

The connector is designed with 4 poles.
