Air Speed calibration

Air speed and air velocity calibration for hot-wire, vane, cup and ultrasonic anemometers, as well as Pitot and Darcy tubes, with ISO/IEC 17025 accredited calibration certificates or ISO 9001 calibration reports. ISO 9001 wind direction calibration is also available for wind vanes and multi-axis ultrasonic anemometers.
Request a quote

Air speed and anemometer calibration services

Two closed-cycle Göttingen-type wind tunnels covering air speeds from 0.1 to 60 m/s.

The Padua Air Speed Laboratory calibrates air velocity and wind measurement instruments from Senseca and other manufacturers. Services include ISO/IEC 17025 accredited air speed calibration under ACCREDIA and ISO 9001 calibration reports for air speed and wind direction.

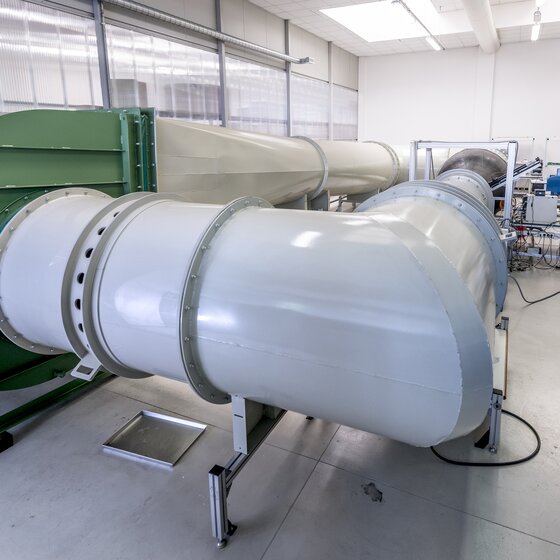

The laboratory operates two closed-cycle Göttingen-type wind tunnels designed to provide stable and uniform airflow. The GV3 tunnel has a 320 mm circular test section and covers air speeds from 0.1 to 35 m/s. The GV1 tunnel has a 600 mm circular test section and covers air speeds from 1 to 60 m/s. Each wind tunnel is equipped with an LDA reference anemometer.

Accredited calibration is available for eligible anemometers and Pitot tubes within the published ACCREDIA scope. Wind direction calibration is provided with ISO 9001 calibration reports for wind vanes and the direction channels of 2- and 3-axis ultrasonic anemometers.

Padua, IT – ISO/IEC 17025 Accredited Calibration (ACCREDIA)
• ISO/IEC 17025 accredited air speed calibration under ACCREDIA
• GV3 wind tunnel: 0.1 to 35 m/s, 320 mm test section
• GV1 wind tunnel: 1 to 60 m/s, 600 mm test section
• Calibration of anemometers and Pitot tubes within the accredited scope
Padua, IT – ISO 9001 Calibration Reports
• ISO 9001 reports for selected air speed instruments and configurations
• Available for configurations inside or outside the accredited scope
• Wind direction calibration for wind vanes and 2- or 3-axis ultrasonic anemometers
• Direction verified at defined angular intervals, normally at 10 m/s

What instruments can we calibrate?

We calibrate Senseca instruments and instruments from other brands.

Below you will find the main instrument families and typical configurations covered by our air speed and wind direction calibration services. Accredited calibration is available where the instrument type, dimensions and requested measuring range fall within the applicable ACCREDIA scope.

ACCREDIA | ISO 9001
Hot-wire anemometers
Calibration of hot-wire anemometers and probes used for low air velocity and dynamic airflow measurements in ducts, pipelines and confined spaces. Depending on the selected configuration, calibration is available from 0.1 m/s.
Download Sample Certificate
ACCREDIA | ISO 9001

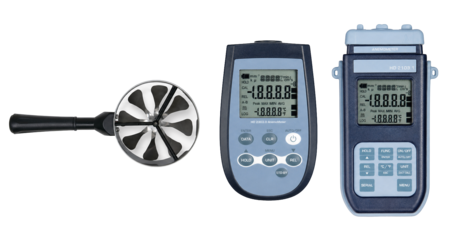

Vane anemometers
Calibration of vane anemometers used for air speed and airflow measurements in HVAC systems, ventilation ducts and industrial applications. Probe diameter and requested air speed determine the applicable wind tunnel and calibration configuration.
Download Sample Certificate
ACCREDIA | ISO 9001
2- and 3-axis ultrasonic anemometers
Air speed calibration of 2- and 3-axis ultrasonic anemometers for meteorological, environmental, wind-energy, aviation, port and marine applications. Accredited or ISO 9001 calibration is available for air speed; wind direction is covered by ISO 9001 reports.
Download Sample Certificate
ACCREDIA | ISO 9001
Cup anemometers
Calibration of cup anemometers for horizontal wind-speed measurement in meteorological stations, environmental monitoring networks, wind-energy sites, ports and marine applications. Calibrated in the GV1 wind tunnel, with calibration available from 1 m/s.
Download Sample Certificate
ACCREDIA | ISO 9001

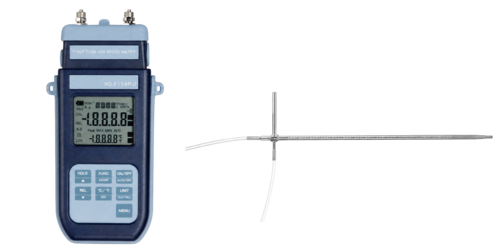

Pitot and darcy tubes
Calibration of Pitot and Darcy tubes used to determine air velocity from differential pressure in ducts, test benches, ventilation systems and high-speed airflow applications. Services may include determination of the K-factor, depending on the requested configuration.
Download Sample Certificate
ISO 9001
Wind direction indicators
ISO 9001 calibration reports for wind vanes and the direction channels of 2- and 3-axis ultrasonic anemometers. The indicated wind direction is verified at defined angular intervals, normally at a constant air speed of 10 m/s.
Download Sample Report

Key applications for Air Speed calibration

Industrial Airflow & Process Control
Calibration supports airflow measurements in ducts, process lines, cleanrooms and production environments where reliable air velocity data is required for process quality, safety and repeatability.
Meteorology & Weather Monitoring
Traceable calibration for meteorological instruments, weather stations and environmental monitoring networks measuring wind speed and, where required, wind direction.
HVAC & Building Systems
Calibration of hot-wire and vane anemometers used for commissioning, balancing and verification of ventilation and air-conditioning systems.
Wind Energy Monitoring
Calibration of cup and ultrasonic anemometers used in wind resource assessment, site comparison and turbine performance monitoring.
Research & Laboratories
High-quality calibration for research instruments, reference standards and laboratory measurement systems requiring documented uncertainty and metrological traceability.
Microclimate & Workplace
Air speed calibration for microclimate assessments combining air velocity with temperature, humidity and thermal comfort measurements.

Do you need tocalibrate your instruments?

Tell us the instrument type, measuring range and required calibration points. We will identify the appropriate calibration certificate or report and prepare a dedicated quotation — whether this is your first calibration with us or a renewal.
